Запчасти Case CX130 (02-10) - TURBOCHARGER ASSY (02) - ENGINE

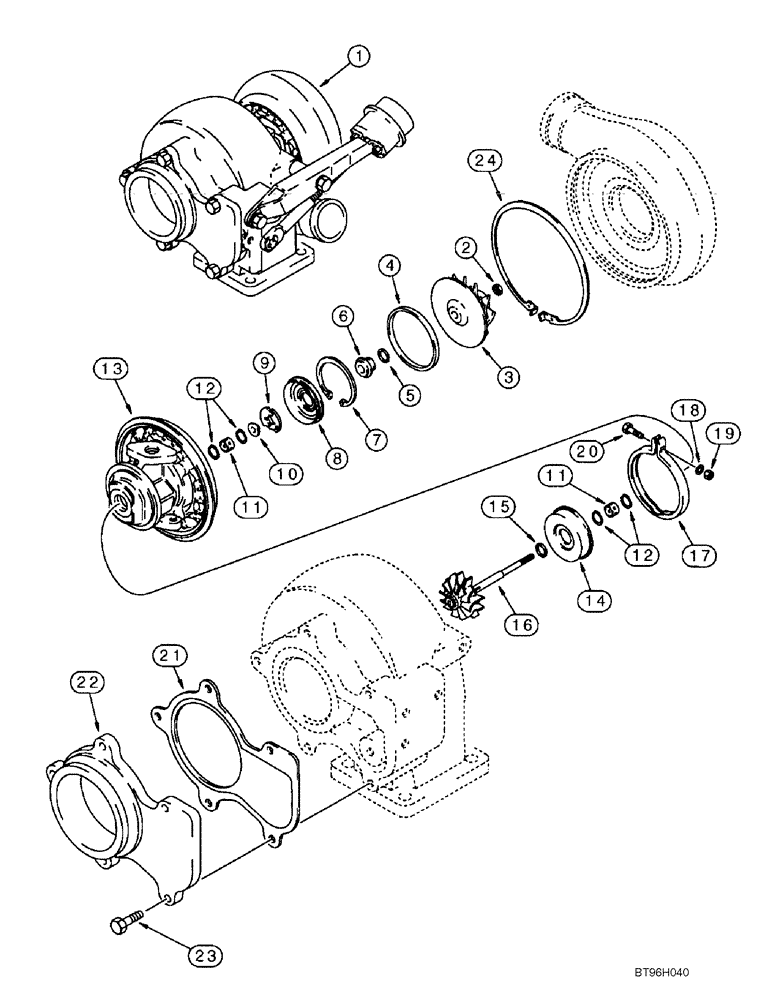

Схема запчастей Case CX130 - (02-10) - TURBOCHARGER ASSY (02) - ENGINE
1
14
11
4
11
8
7
9
12
3
19
15
17
5
24
2
20
6
21
10
13
18
23
16
22
12

Артикул

Название

Примечание

Количество

.

4TA-390 Emissions Certified Engine

1шт.

J802906

TURBOCHARGER

Incl. (1) J519807 (1) J709861, Incl. 1 - 24, Also Includes Parts On Figure 02-11

1шт.

JR802906

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

JC592121

CORE-TURBOCHARGER

Return Part Number

1шт.

1

J580919

HOUSING

Incl. 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

Nut

1шт.

3

NSS

NOT SOLD SEPARAT

Impeller

1шт.

4

NSS

NOT SOLD SEPARAT

Seal

1шт.

5

NSS

NOT SOLD SEPARAT

Seal

1шт.

6

NSS

NOT SOLD SEPARAT

Slinger

1шт.

7

NSS

NOT SOLD SEPARAT

Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Baffle

1шт.

9

NSS

NOT SOLD SEPARAT

Bearing, Thrust

1шт.

10

NSS

NOT SOLD SEPARAT

Collar

1шт.

11

NSS

NOT SOLD SEPARAT

Bearing, Ball

2шт.

12

NSS

NOT SOLD SEPARAT

Ring

4шт.

13

NSS

NOT SOLD SEPARAT

Housing

1шт.

14

NSS

NOT SOLD SEPARAT

Shield

1шт.

15

NSS

NOT SOLD SEPARAT

Seal

1шт.

15a

NSS

NOT SOLD SEPARAT

Seal

1шт.

16

NSS

NOT SOLD SEPARAT

Rotor Assy

1шт.

J575205

PACKAGE, REPAIR

Overhaul, Incl. 2, 5, 7, 8, 9, 11, 12, 15, 15A, 19, 20

1шт.

16a

838-5312

LOCK PIN,M3 x 12, Slotted

Not Illustrated

2шт.

17

J590606

CLAMP BRACKET,103mm

1шт.

18

J535971

WASHER

1шт.

19

87673638

FLANGE NUT

Replaces J531582

1шт.

20

J590296

BOLT

M6 x 1

1шт.

21

J535001

GASKET,0.25mm Thk

1шт.

22

J527759

ADAPTER

1шт.

23

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

5шт.

24

J535800

RING, SNAP

RING SNAP

1шт.

J575205

PACKAGE, REPAIR

Overhaul, Incl. 2, 5, 7, 8, 9, 11, 12, 15, 15A, 19, 20

1шт.

Выбрано товаров: 32
