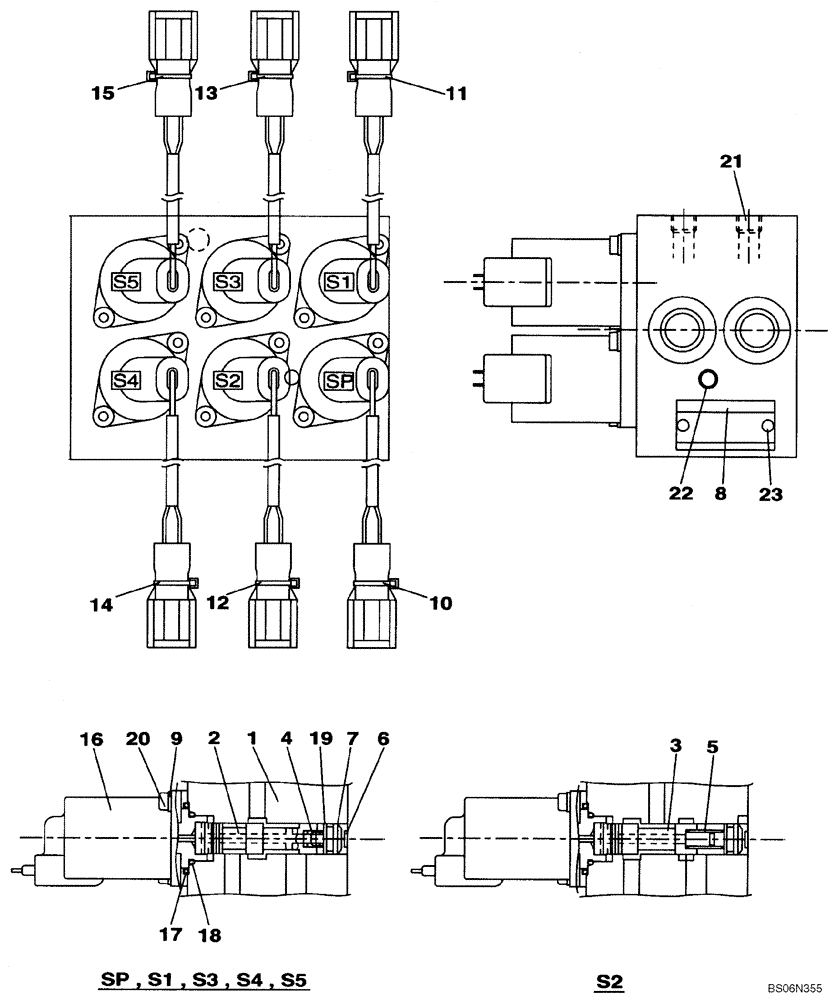

Запчасти Case CX130 (08-096A) - VALVE, SOLENOID (08) - HYDRAULICS

-

KHJ15460

SOLENOID VALVE

Incl. 1 - 23

1шт.

-

KHJ1972

SOLENOID VALVE

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

5шт.

3

NSS

NOT SOLD SEPARAT

Spool

1шт.

4

LG006010

COMPRESSION SPRING

5шт.

5

LG006020

COMPRESSION SPRING

1шт.

6

LR015080

ADAPTER

6шт.

7

LA010960

SNAP RING

6шт.

8

NSS

NOT SOLD SEPARAT

Name Plate

1шт.

9

LA010970

SPRING WASHER

12шт.

10

LD001470

COLLAR

1шт.

11

LD001450

COLLAR

1шт.

12

LD001480

COLLAR

1шт.

13

LD001490

COLLAR

1шт.

14

LD001500

COLLAR

2шт.

15

LD001460

MOUNTING CLIP

1шт.

16

LL001140

SOLENOID

(Used for Swing Pilot Shut-Off - Green Band, Pilot Pressure - Blue Band, Swing Break - Pink Band, 2 Stage Travel - Red Band, Power-Up - Yellow Band, Cushion Control - Light Green Band) Incl. 17, 18

6шт.

Part of Valve KHJ15460

1шт.

16

LL00068

SOLENOID VALVE

(Used for Swing Pilot Shut-Off - Green Band, Pilot Pressure - Blue Band, Swing Break - Pink Band, 2 Stage Travel - Red Band, Power-Up - Yellow Band, Cushion Control - Light Green Band)

6шт.

Part of Valve KHJ1972

1шт.

17

155188A1

O-RING

6шт.

18

154487A1

O-RING

6шт.

19

154463A1

O-RING

6шт.

20

LA010980

BOLT,Hex Skt Hd

12шт.

21

LK005630

PLUG

6шт.

22

LK005640

PLUG

4шт.

23

NSS

NOT SOLD SEPARAT

Rivet

2шт.
