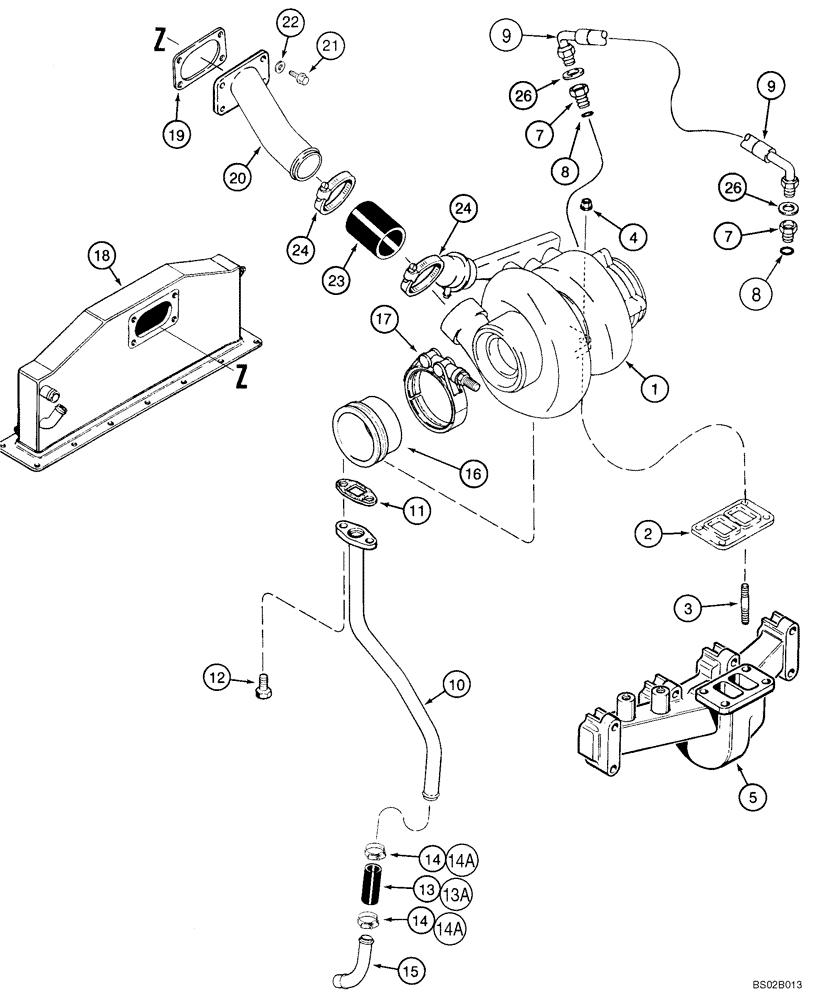

Запчасти Case CX130 (02-09) - TURBOCHARGER SYSTEM (02) - ENGINE

4TA-390 Emissions Certified Engine

1шт.

1

J592122

New, Production Only, Order J802906, See Figure 02-10

1шт.

2

J919369

GASKET,0.5mm Thk

1шт.

3

J818823

STUD

Mounting

4шт.

4

J818824

FLANGE NUT

M10

4шт.

5

J901635

MANIFOLD

Exhaust, See Figure 02-08

1шт.

7

J919687

HYD CONNECTOR

Incl. 8

2шт.

8

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

9

J909545

HOSE

406 mm (16.0")

1шт.

10

J934484

TUBE,22.22 mm OD x 350.3, 158 mm L

1шт.

11

J937706

GASKET,0.79mm Thk

Replaces J285747

1шт.

12

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

13

J931970

HOSE,22.22 mm ID x 76.20 mm

No Longer Used, Order J286499

1шт.

13a

J286499

HOSE

76 mm (3 in)

1шт.

14

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

Used with J931970

2шт.

14a

214-1512

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm, W/ Liner

Used with J286499

2шт.

15

J931973

TUBE,0.875" OD

1шт.

16

J910990

TUBE,64 mm ID x 72.64 mm OD x 40.50 mm L

1шт.

17

A170467

CLAMP,72mm ID

1шт.

18

84138943

AFTERCOOLER

Air intake, See Figure 02-08, Replaces J919805

1шт.

19

J914856

GASKET,1.02mm Thk

1шт.

20

J933337

CONNECTOR, ELEC

CONNECTOR

1шт.

21

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

4шт.

22

J918189

SEALING WASHER

4шт.

23

J916438

INTAKE AIR HOSE

80 mm (3-1/8 in)

1шт.

24

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

2шт.

26

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.
