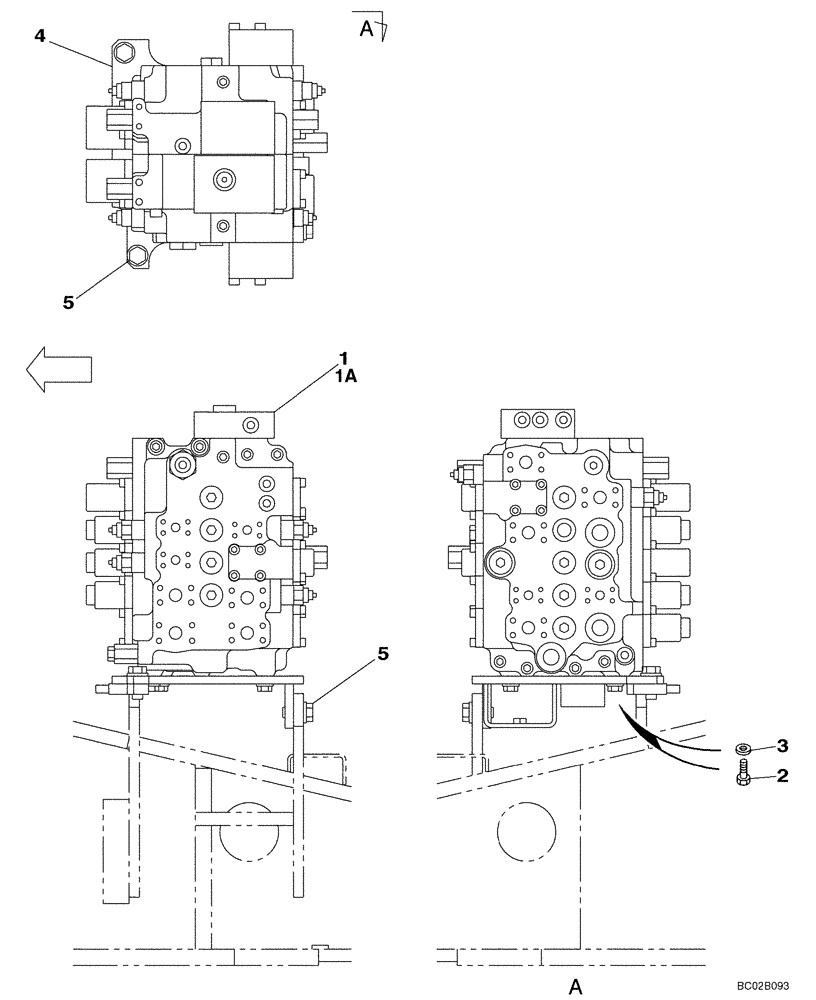

Запчасти Case CX130 (08-089) - CONTROL VALVE - SUPPORT (08) - HYDRAULICS

1

KNJ2852

VALVE, CONTROL

See Figure 08-090 - 08-094, No Longer Available, Order KNJ3053, REF 1A

1шт.

1a

KNJ3053

VALVE, CONTROL

See Figures 08-094A - 08-094E

1шт.

2

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

4шт.

3

150811A1

WASHER

M12

4шт.

4

KNJ2776

BRACKET

1шт.

5

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

Note: When Replacing KNJ2852 With KNJ3053, KNJ2586 tube is not used. See Figures 08-048, 08-050, 08-052 for correct model.

1шт.

Nota : Lors du remplacement de KNJ2852 par KNJ3053, le tube KNJ2586 n'est pas utilis. Voir les pages 08-048, 08-050 ou 08-052 pour le modèle correct.

1шт.

Nota: Al reemplazar KNJ2852 con KNJ3053, no se usa el tubo KNJ2586. Ver las paginas 08-048, 08-050 o 08-052 para el modelo correcto.

1шт.
