Запчасти Case CX130 (02-08) - MANIFOLDS (02) - ENGINE

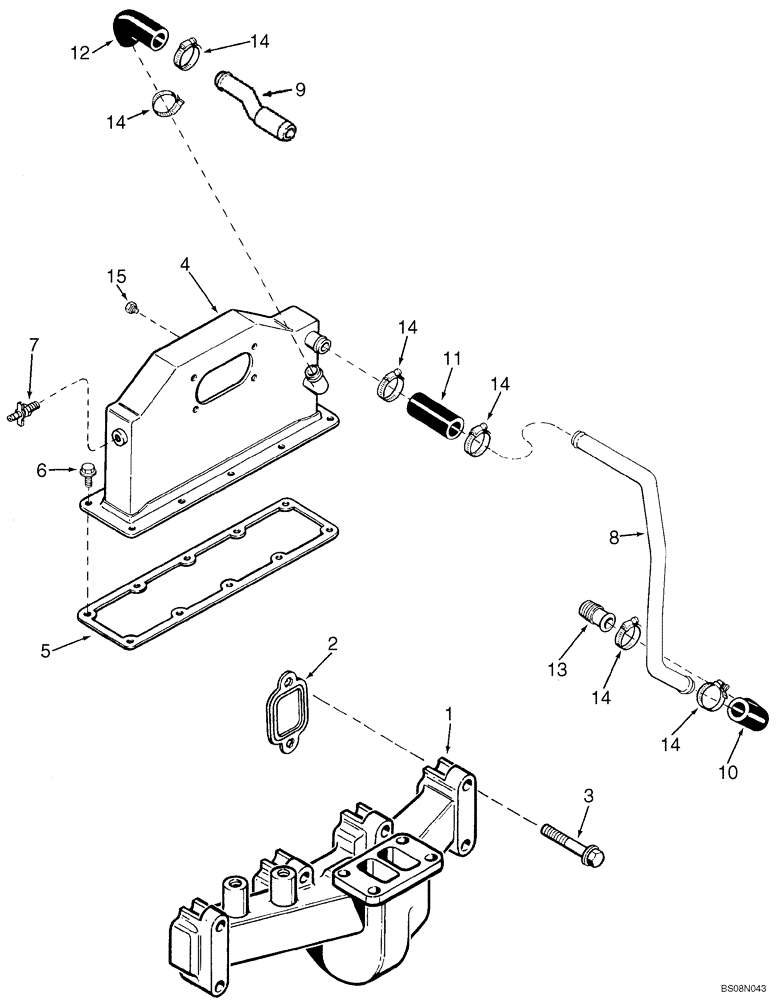

Схема запчастей Case CX130 - (02-08) - MANIFOLDS (02) - ENGINE
5
15
14
1
14
2
8
6
14
4
14
13
9
7
3
12
10
14
14
11

Артикул

Название

Примечание

Количество

.

4TA-390 Emissions Certified Engine

1шт.

.

Exhaust

1шт.

1

J901635

MANIFOLD

1шт.

2

J927154

GASKET,0.38mm Thk

4шт.

3

J901448

FLANGE BOLT,Hex, M10 x 65mm

8шт.

.

Intake Aftercooler

1шт.

4

84138943

AFTERCOOLER

Air Intake, Replaces J919805

1шт.

5

J938153

MANIFOLD GASKET,0.8mm Thk

1шт.

6

J918108

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

10шт.

7

J909394

COCK, DRAIN

1шт.

8

J914855

TUBE,0.75" OD

Aftercooler Return

1шт.

9

J934712

TUBE,16 mm ID x 20.83 mm OD x 38 mm L

Aftercooler Drain

1шт.

9

J905639

TUBE,12.7 mm ID x 22.22 mm OD x 154.7 mm L

Aftercooler Drain

1шт.

10

J928909

HOSE,18.50 mm ID x 43.00 mm, SAE 30R7

1шт.

11

J918611

HOSE,18.50 mm ID x 63.00 mm

1шт.

12

J918608

HOSE,18.50 mm ID x 69.50 mm

115 mm (4-1/2 in)

1шт.

13

J907167

SPLINED COUPLING

1шт.

14

J937613

HOSE CLAMP

6шт.

15

J906619

PLUG,1/8" - 27

1/8 PT

1шт.

16

J910778

DECAL

Not Illustrated

1шт.

Выбрано товаров: 20
