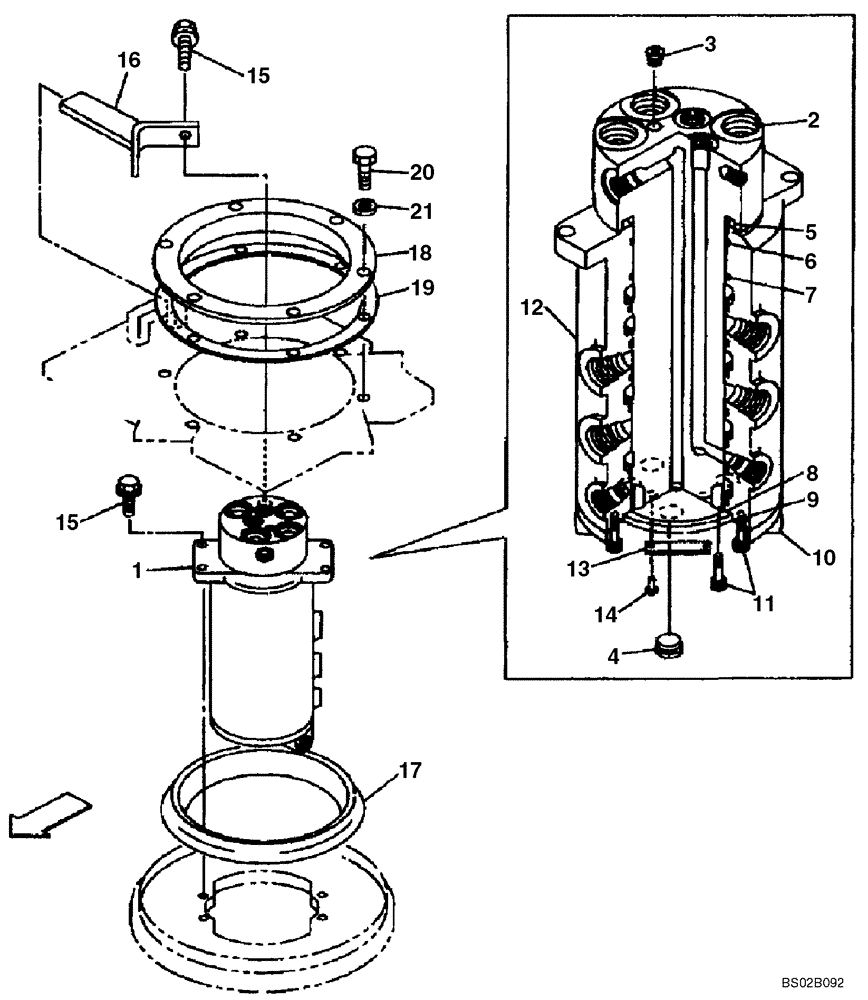

Запчасти Case CX130 (08-088) - HYDRAULICS - JOINT, SWIVEL CENTERMODELS WITH DOZER BLADE, P.I.N. DAC0713099 - DAC0713435 (08) - HYDRAULICS

Models With Dozer Blade

1шт.

1

KNA0814

HYDRAULIC SWIVEL

Swing, Incl. 2 - 14

1шт.

2

168442A1

HOUSING

Incl. 3, 4

1шт.

3

150821A1

PLUG

1шт.

4

150825A1

PLUG

4шт.

5

168443A1

SEALING RING

1шт.

6

154732A1

O-RING

1шт.

7

169059A1

SEALING RING

SEALRING

8шт.

8

168447A1

TRAY

1шт.

9

154769A1

O-RING

1шт.

10

168449A1

COVER

1шт.

11

864-8020

HEX SOC SCREW,M8 x 20mm, Cl 8.8

8шт.

12

KMA1262

ROTOR

1шт.

13

NSS

NOT SOLD SEPARAT

Plate

1шт.

14

NSS

NOT SOLD SEPARAT

Rivet

2шт.

15

166352A1

BOLT

With Attached Washer

6шт.

16

168440A1

LOCKING BAR

1шт.

17

159665A1

SEALING RING

1шт.

18

159666A1

RETAINER

1шт.

19

159667A1

RUBBER SEAL

1шт.

20

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

6шт.

21

161498A1

SEALING WASHER

6шт.
