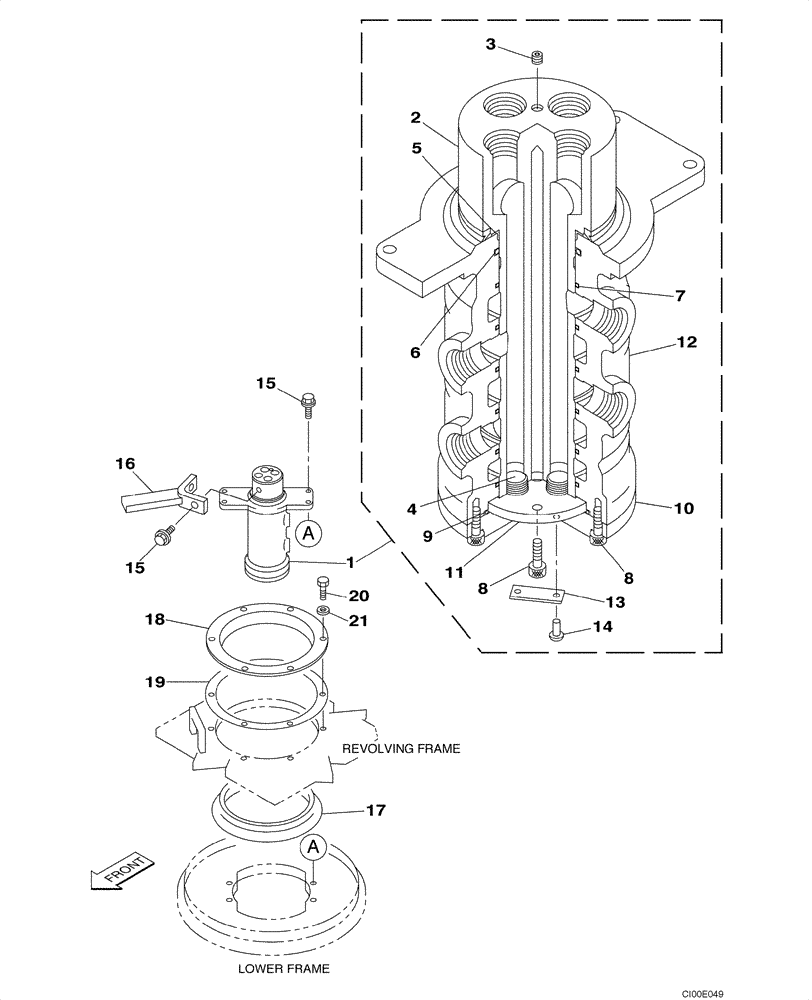

Запчасти Case CX130 (08-087) - HYDRAULICS - JOINT, SWIVEL CENTER - MODELS WITHOUT DOZER BLADE; P.I.N. DAC0713099 - DAC0713435 (08) - HYDRAULICS

1

169316A1

HYDRAULIC SWIVEL

Swing, Incl. 2 - 14

1шт.

2

KNA0683

HOUSING

Incl. 3, 4

1шт.

3

150821A1

PLUG

1шт.

4

150825A1

PLUG

4шт.

5

160682A1

SEALING RING

1шт.

6

154680A1

O-RING

1шт.

7

165486A1

SEALING RING

SEALRING

6шт.

8

864-8020

HEX SOC SCREW,M8 x 20mm, Cl 8.8

8шт.

9

154713A1

O-RING

1шт.

10

KNA0749

COVER

1шт.

11

160690A1

PLATE, THRUST

1шт.

12

KNA0748

ROTOR

1шт.

13

NSS

NOT SOLD SEPARAT

Plate

1шт.

14

NSS

NOT SOLD SEPARAT

Rivet

2шт.

15

166352A1

BOLT

With Attached Washer

6шт.

16

KLA0169

LOCKING BAR

; Replaces 159664A1

1шт.

17

159665A1

SEALING RING

1шт.

18

159666A1

RETAINER

1шт.

19

159667A1

RUBBER SEAL

1шт.

20

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

6шт.

21

161498A1

SEALING WASHER

6шт.
