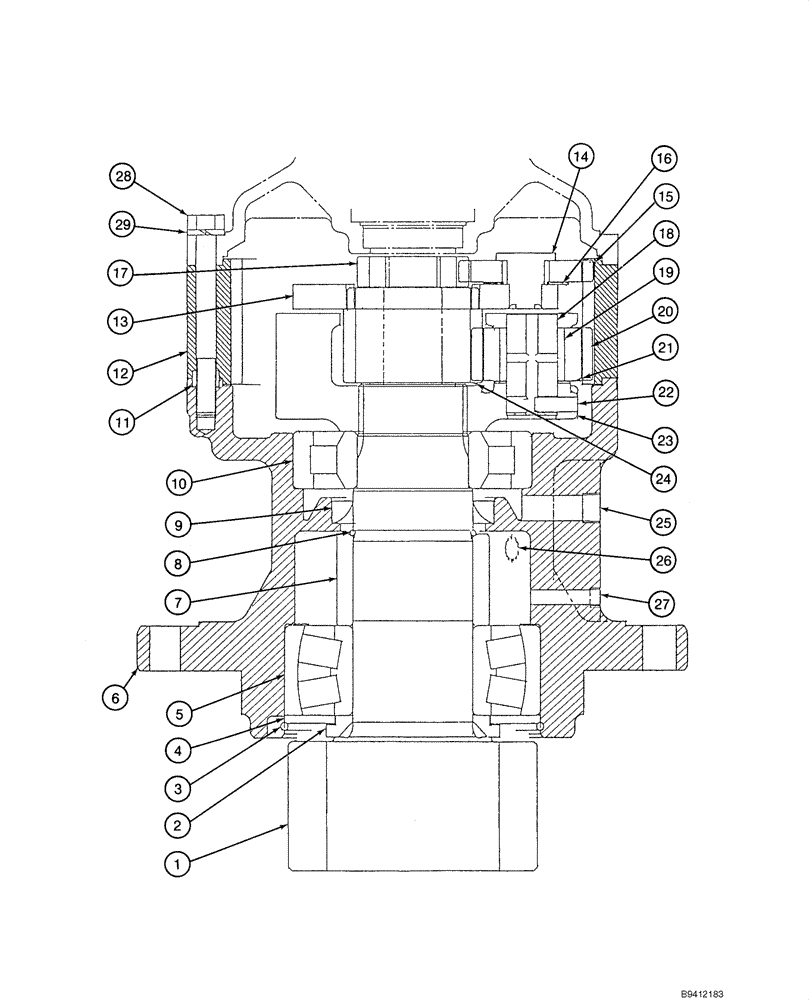

Запчасти Case CX130 (08-086) - GEAR ASSY, REDUCTION - MOTOR, SWING (P/N 160897A1) (08) - HYDRAULICS

160897A1

REDUCER

Housing stamped RG04S-170-102, Incl. 1 - 29

1шт.

LN002340R

REMAN-REDUCTION UNIT

CX130 (NA) GEAR ASSY, REDUCTION - MOTOR,SWING (P/N LN00104), Reman For New P/N 160897A1

1шт.

LN002340C

CORE-REDUCTION UNIT

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Shaft, Pinion

1шт.

2

160868A1

COLLAR

1шт.

3

155603A1

RING, SNAP

RING SNAP

1шт.

4

155606A1

PLATE

1шт.

5

160965A1

ROLLER BEARING,70mm ID x 150mm OD x 51mm W

1шт.

6

NSS

NOT SOLD SEPARAT

Housing

1шт.

7

155600A1

BUSHING

1шт.

8

155604A1

RING, SNAP

RING SNAP

1шт.

9

153924A1

OIL SEAL

1шт.

10

156129A1

BEARING, ROLLER, CYL,65mm ID x 140mm OD x 33mm W

1шт.

11

155601A1

COLLAR

4шт.

12

155262A1

RING

1шт.

13

NSS

NOT SOLD SEPARAT

Carrier, Planetary

1шт.

14

NSS

NOT SOLD SEPARAT

Shaft

3шт.

15

NSS

NOT SOLD SEPARAT

Gear, Planetary

3шт.

16

NSS

NOT SOLD SEPARAT

Plate, Thrust

3шт.

17

160821A1

SUN GEAR

1шт.

17

LNM0602

GEAR SET

1шт.

18

155357A1

SHAFT

3шт.

19

155377A1

BUSHING

3шт.

20

160822A1

GEAR

3шт.

21

155376A1

PLATE, THRUST

3шт.

22

160869A1

COTTER PIN

3шт.

23

NSS

NOT SOLD SEPARAT

Carrier, Planetary

1шт.

24

155264A1

PINION

1шт.

25

151030A1

PLUG

1шт.

26

151026A1

PLUG

1шт.

27

151022A1

PLUG

1шт.

28

156192A1

BOLT

8шт.

29

892-10012

LOCK WASHER,M12

8шт.
