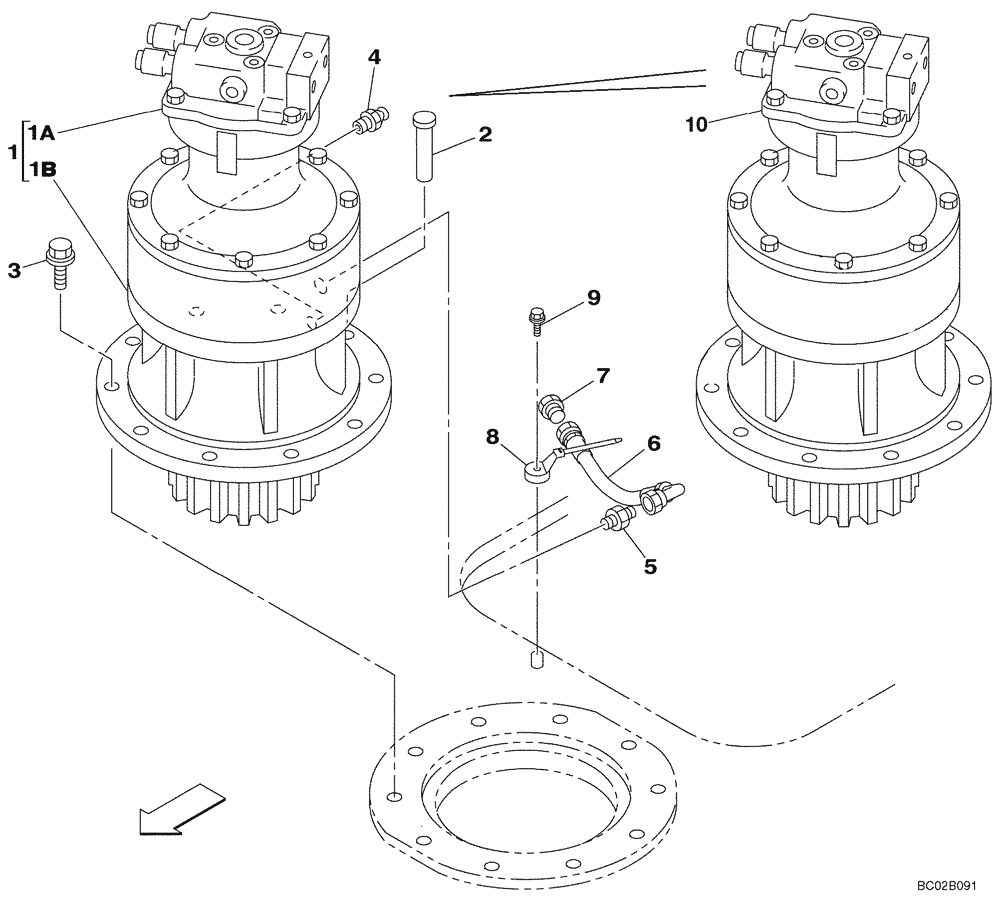

Запчасти Case CX130 (08-084) - MOUNTING - SWING MOTOR (08) - HYDRAULICS

1

169326A1

MOTO-REDUCTION GEAR

Swing, With Reduction Gear, Incl. 1A, 1B, No Longer Used, Order KNC0081, REF 10

1шт.

1a

LJ00721

MOTOR, HYDRAULIC

Swing, See Figure 08-085

1шт.

1b

160897A1

REDUCER

(Housing stamped RG04S-170-102) See Figure 08-086

1шт.

LN002340R

REMAN-REDUCTION UNIT

CX130 (NA), Reman For New P/N 160897A1

1шт.

LN002340C

CORE-REDUCTION UNIT

Return Number

1шт.

1b

LN00104

REDUCER

(Housing stamped RG04S-170-201) See Figure 08-086A

1шт.

LN002340R

REMAN-REDUCTION UNIT

CX130 (NA), Reman For New P/N LN00104

1шт.

LN002340C

CORE-REDUCTION UNIT

Return Number

1шт.

2

150036A1

HEADED PIN,20mm OD x 60mm L

1шт.

3

167584A1

BOLT,Sems, M16 x 60mm

With Attached Washer

9шт.

4

153630A1

LUBE NIPPLE

1шт.

5

153597A1

ADAPTER

1шт.

6

KMJ2062

HOSE,9.50 mm ID x 270.00 mm

1шт.

7

KHP0501

PLUG

1шт.

8

KHR2583

CLAMP

1шт.

9

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

1шт.

10

KNC0081

MOTO-REDUCTION GEAR

Swing, With Reduction Gear, Includes KRC0184

1шт.

11

KRC0184

VALVE, PRESSURE RELI

EF Not Shown - Incl. 155990a1

2шт.

11-1

159990A1

O-RING

Not Shown - Set Of 1

1шт.

11-2

155990A1

SHIM KIT

Not Shown

1шт.
