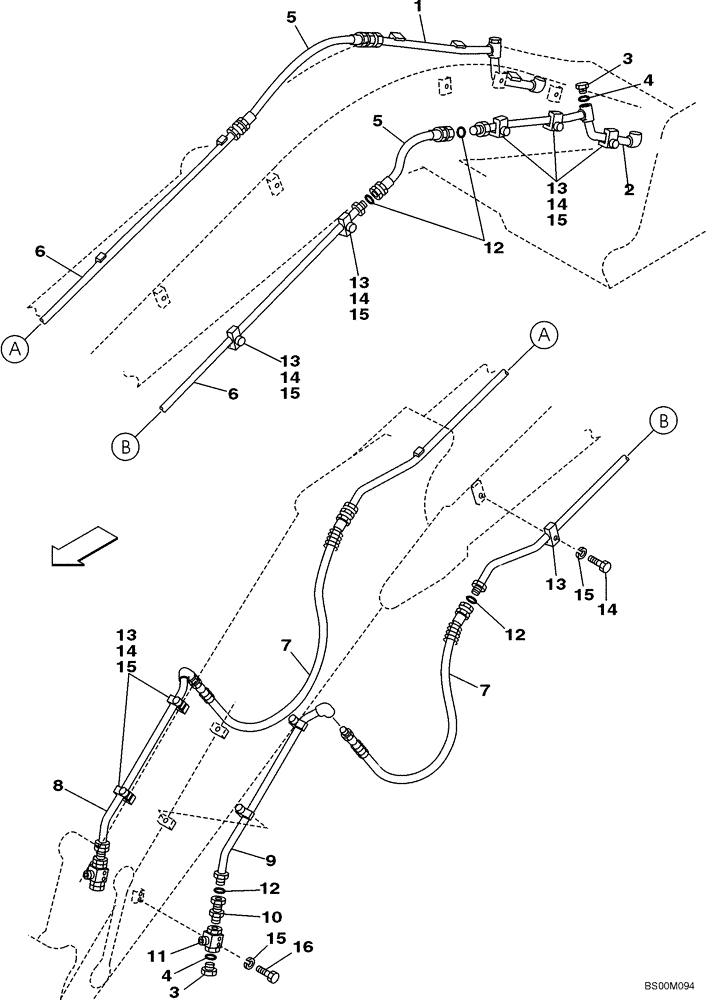

Запчасти Case CX130 (08-081) - HYDRAULICS - AUXILIARY ATTACHMENT (08) - HYDRAULICS

Arm 3,0 m (9 Ft 10 In)

1шт.

1

KNV1240

TUBE ASSY.,20.8 mm ID x 27.2 mm OD

1шт.

2

KNV1241

TUBE ASSY.,20.8 mm ID x 27.2 mm OD

1шт.

3

152924A1

PLUG

Incl. 4

2шт.

4

154503A1

O-RING

1шт.

5

KNV1162

HYDRAULIC HOSE,19.00 mm ID x 750.00 mm

2шт.

6

KNV1242

TUBE ASSY.,20.8 mm ID x 27.2 mm OD

2шт.

7

KNV1297

HYDRAULIC HOSE,19.00 mm ID x 2050.00 mm

2шт.

8

KNV1243

TUBE ASSY.,20.8 mm ID x 27.2 mm OD

1шт.

9

KNV1244

TUBE ASSY.,20.8 mm ID x 27.2 mm OD

1шт.

10

KHV0325

ADAPTER

2шт.

11

KHV10680

VALVE SECTION

; Replaces KHV0453

2шт.

12

KHJ1360

O-RING,0.07" Thk x 0.739" ID

6шт.

13

151486A1

CLAMP BRACKET

16шт.

14

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

16шт.

15

892-11012

LOCK WASHER,M12

2шт.

16

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

4шт.
