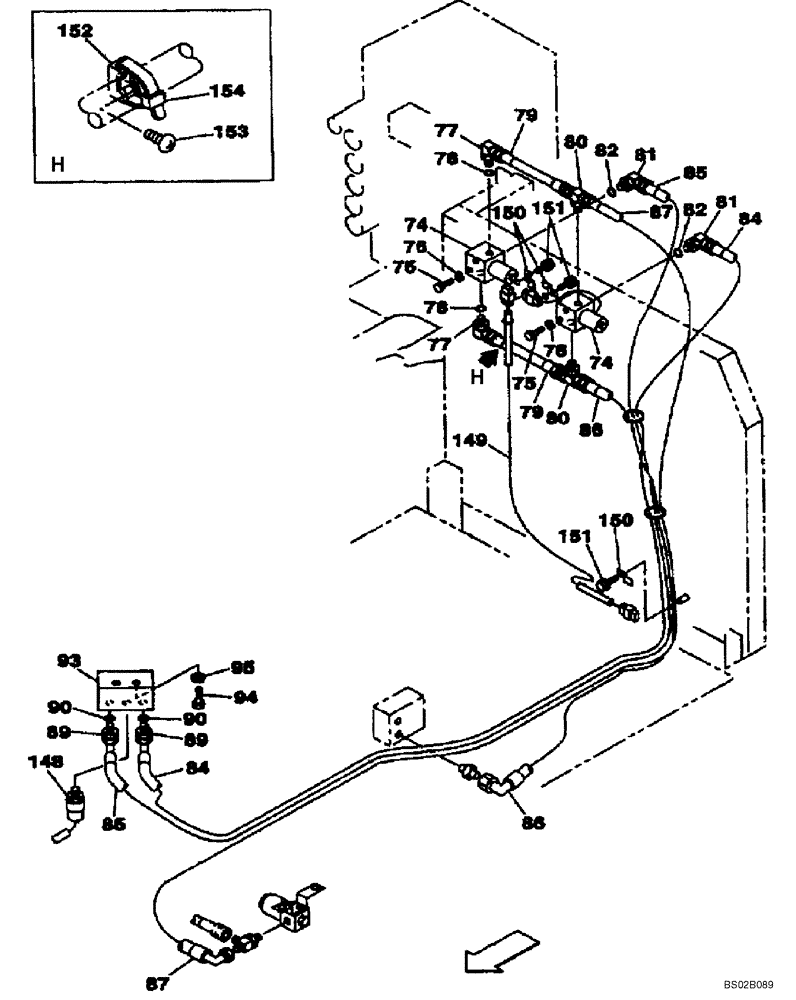

Запчасти Case CX130 (08-079) - HYDRAULICS - AUXILIARY, DOUBLE ACTING CIRCUIT/TRIGGER ACTIVATED (08) - HYDRAULICS

74

162538A1

VALVE

See Figure 08-095

2шт.

75

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

4шт.

76

892-11006

LOCK WASHER,M6

4шт.

77

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 78

2шт.

78

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

79

MPJ2264

HOSE ASSY.,6.30 mm ID x 230.00 mm

2шт.

80

167321A1

TEE

2шт.

81

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

2шт.

82

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

84

159009A1

HOSE ASSY.

1шт.

85

162193A1

HOSE ASSY.

1шт.

86

153484A1

HOSE ASSY.

1700 mm (67 in)

1шт.

87

167352A1

HOSE,2500.00 mm

See Figure 08-078

1шт.

89

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 90

2шт.

90

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

93

KHJ17100

VALVE PRESSURE RELIE

; Replaces KHJ1655

1шт.

94

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

2шт.

95

153081A1

WASHER

2шт.

148

159599A1

PRESSURE SWITCH

1шт.

149

KHR3329

HARNESS

1шт.

150

165405A1

CLIP

3шт.

151

159599A1

PRESSURE SWITCH

3шт.

152

150860A1

COLLAR

1шт.

153

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

154

150496A1

MOUNTING CLIP

250 mm (10 in)

1шт.
