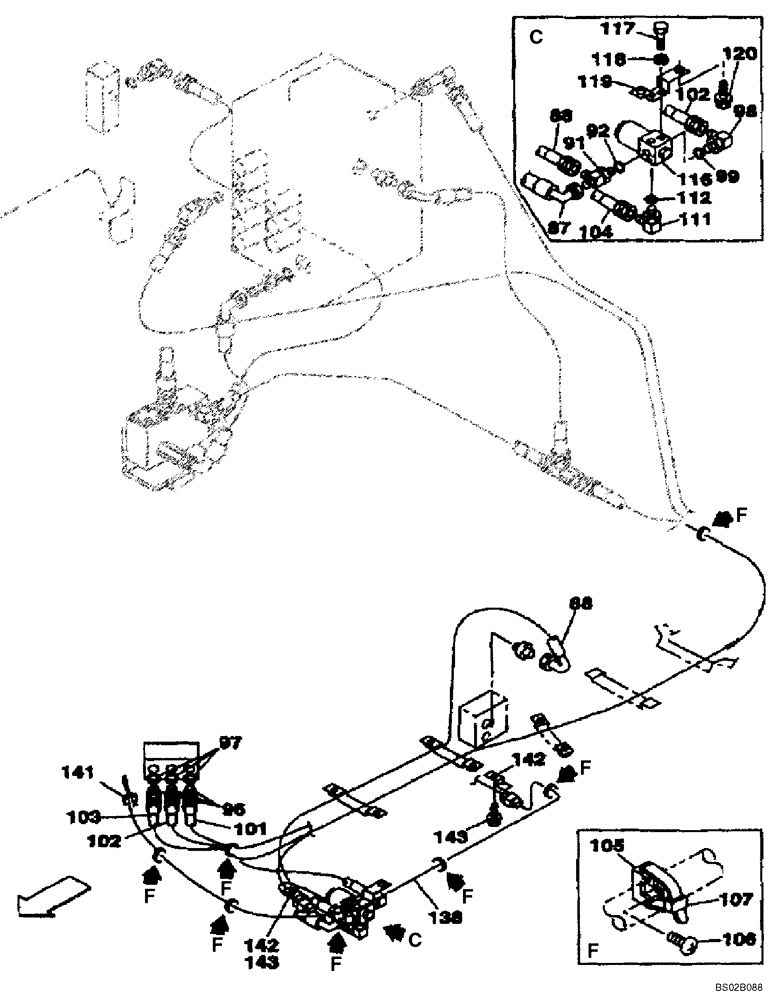

Запчасти Case CX130 (08-078) - HYDRAULICS - AUXILIARY, DOUBLE ACTING CIRCUIT/TRIGGER ACTIVATED (08) - HYDRAULICS

87

167352A1

HOSE,2500.00 mm

1шт.

88

159235A1

HYDRAULIC HOSE

850 mm (KRJ3572)

1шт.

91

159497A1

TEE

Incl. 92

1шт.

92

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

96

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 97

3шт.

97

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

98

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 99

2шт.

99

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

101

159005A1

HOSE

3250 mm (128 in), See Figure 08-077

1шт.

102

161272A1

HOSE

1шт.

103

163438A1

HYDRAULIC HOSE,3800.00 mm

See Figure 08-077

1шт.

104

157853A1

HOSE,6.3 mm ID x 2050.00 mm

See Figure 08-077

1шт.

105

150860A1

COLLAR

7шт.

106

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

7шт.

107

150496A1

MOUNTING CLIP

250 mm (10 in)

7шт.

111

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 112

1шт.

112

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

116

162538A1

VALVE

See Figure 08-095

1шт.

117

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

2шт.

118

892-11006

LOCK WASHER,M6

2шт.

119

KRJ5751

BRACKET

1шт.

120

627-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

138

KHR3351

HARNESS

1шт.

141

150496A1

MOUNTING CLIP

250 mm (10 in)

1шт.

142

165405A1

CLIP

2шт.

143

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

2шт.
