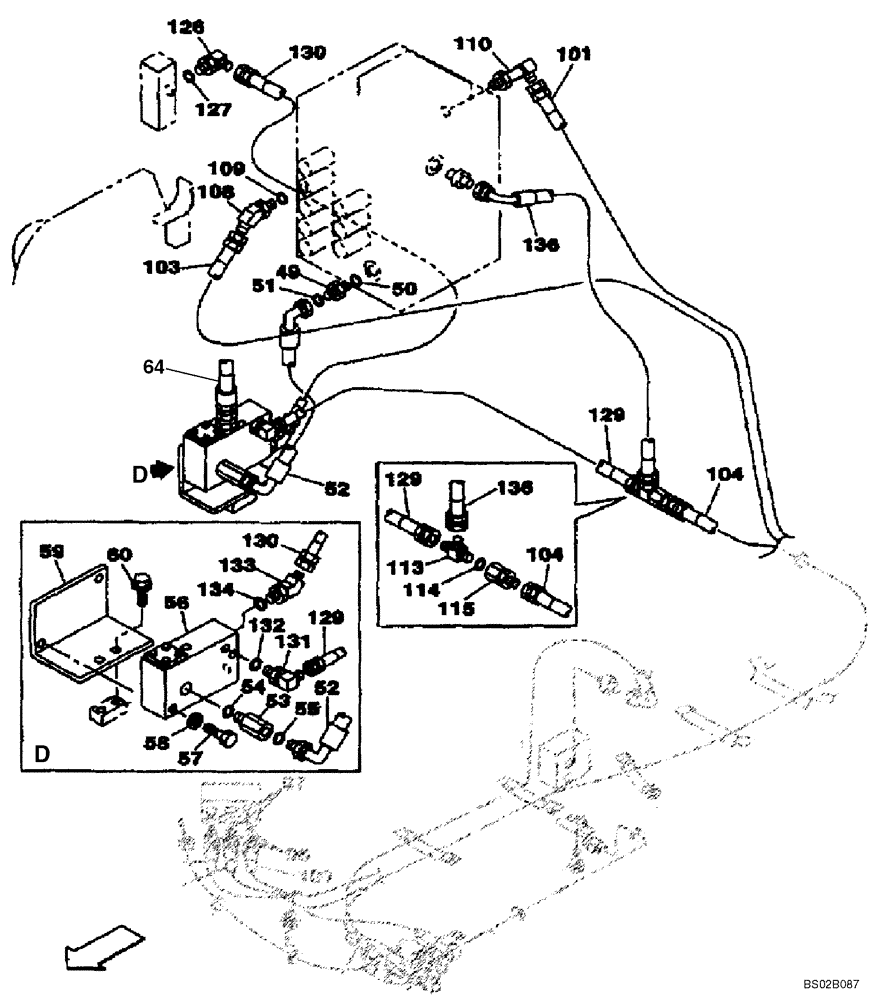

Запчасти Case CX130 (08-077) - HYDRAULICS - UXILIARY, DOUBLE ACTING CIRCUIT/TRIGGER ACTIVATED (08) - HYDRAULICS

49

KHJ1765

ADAPTER

Incl. 50

1шт.

50

154487A1

O-RING

1шт.

51

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

52

KNJ2605

HYDRAULIC HOSE

1шт.

53

KHJ1495

ADAPTER

Incl. 54

1шт.

54

154503A1

O-RING

1шт.

55

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

56

KHJ1473

VALVE

See Figure 08-109

1шт.

57

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

2шт.

58

150409A1

WASHER

10,5 x 21 x 3,2 mm

2шт.

59

KNJ2604

BRACKET

1шт.

60

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

64

KNJ2601

HYDRAULIC HOSE,15.90 mm ID x 880.00 mm

See Figure 08-075

1шт.

101

159005A1

HOSE

3250 mm (128 in), See Figure 08-078

1шт.

103

163438A1

HYDRAULIC HOSE,3800.00 mm

See Figure 08-078

1шт.

104

157853A1

HOSE,6.3 mm ID x 2050.00 mm

See Figure 08-078

1шт.

108

150933A1

ELBOW

Incl. 109

1шт.

109

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

110

KHJ1178

ELBOW

1шт.

113

159497A1

TEE

Incl. 114

1шт.

114

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

115

167853A1

ADAPTER

1шт.

126

156554A1

ELBOW

Incl. 127

1шт.

127

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

129

152281A1

HOSE,63.00 mm ID x 800.00 mm

1шт.

130

153398A1

HOSE ASSY.

1шт.

131

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 132

1шт.

132

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

133

150933A1

ELBOW

Incl. 134

1шт.

134

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

136

KSJ2117

HOSE

1шт.
