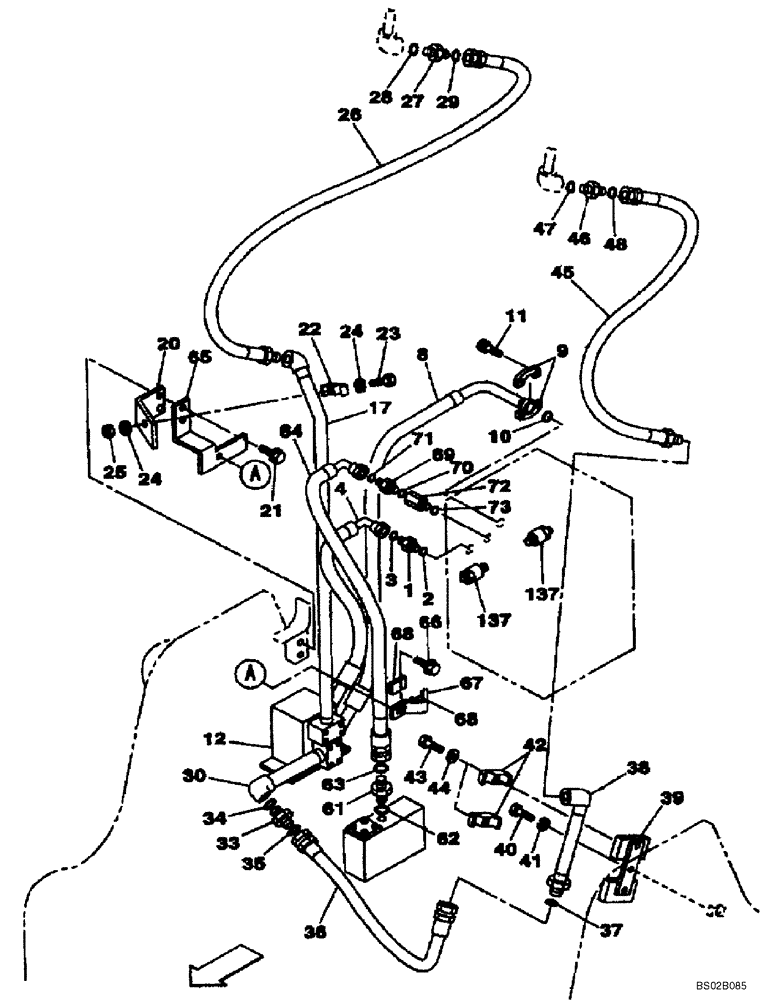

Запчасти Case CX130 (08-075) - HYDRAULICS - AUXILIARY, DOUBLE ACTING CIRCUIT/TRIGGER ACTIVATED (08) - HYDRAULICS

1

KHJ1348

ADAPTER

Incl. 2

1шт.

2

154503A1

O-RING

1шт.

3

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

4

KNJ2541

HYDRAULIC HOSE,19.00 mm ID x 530.00 mm

1шт.

8

KNJ2542

HYDRAULIC HOSE,19.00 mm ID x 670.00 mm

1шт.

9

153458A1

FLANGE

2шт.

10

155210A1

O-RING

1шт.

11

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

12

KHJ1858

MANIFOLD VALVE

See Figure 08-076

1шт.

17

KNJ2591

TUBE ASSY.,20.8 mm ID x 27.2 mm OD

1шт.

20

KNJ2595

BRACKET

1шт.

21

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

22

151486A1

CLAMP BRACKET

1шт.

23

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

1шт.

24

150811A1

WASHER

M12

1шт.

25

829-1412

NUT,M12, Cl 10.9

1шт.

26

KNJ2593

HYDRAULIC HOSE,19.00 mm ID x 1570.00 mm

1шт.

27

KHJ1348

ADAPTER

Incl. 28

1шт.

28

154503A1

O-RING

1шт.

29

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

30

KNJ2592

TUBE ASSY.,20.8 mm ID x 27.2 mm OD

1шт.

33

KHJ1348

ADAPTER

Incl. 34

1шт.

34

154503A1

O-RING

1шт.

35

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

36

KNJ2600

HYDRAULIC HOSE,19.00 mm ID x 680.00 mm

1шт.

37

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

38

KNJ2596

TUBE ASSY.,20.8 mm ID x 27.2 mm OD

1шт.

39

KNJ2619

BRACKET

1шт.

40

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

41

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

42

151486A1

CLAMP BRACKET

2шт.

43

827-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

.9

2шт.

44

150811A1

WASHER

M12

2шт.

45

KNJ2593

HYDRAULIC HOSE,19.00 mm ID x 1570.00 mm

1шт.

46

KHJ1348

ADAPTER

Incl. 47

1шт.

47

154503A1

O-RING

1шт.

48

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

56

KHJ1473

VALVE

See Figure 08-109

1шт.

61

KHJ1348

ADAPTER

Incl. 62

1шт.

62

154503A1

O-RING

1шт.

63

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

64

KNJ2601

HYDRAULIC HOSE,15.90 mm ID x 880.00 mm

1шт.

65

KNJ2602

BRACKET

1шт.

66

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

67

KNJ2729

BRACKET

1шт.

68

KNJ2616

PLATE

2шт.

69

KHJ1348

ADAPTER

Incl. 70

1шт.

70

154503A1

O-RING

1шт.

71

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

72

KHJ1504

CHECK VALVE

Incl. 73

1шт.

73

154495A1

O-RING

1шт.

137

KNJ2732

VALVE, PRESSURE RELI

EF

2шт.
