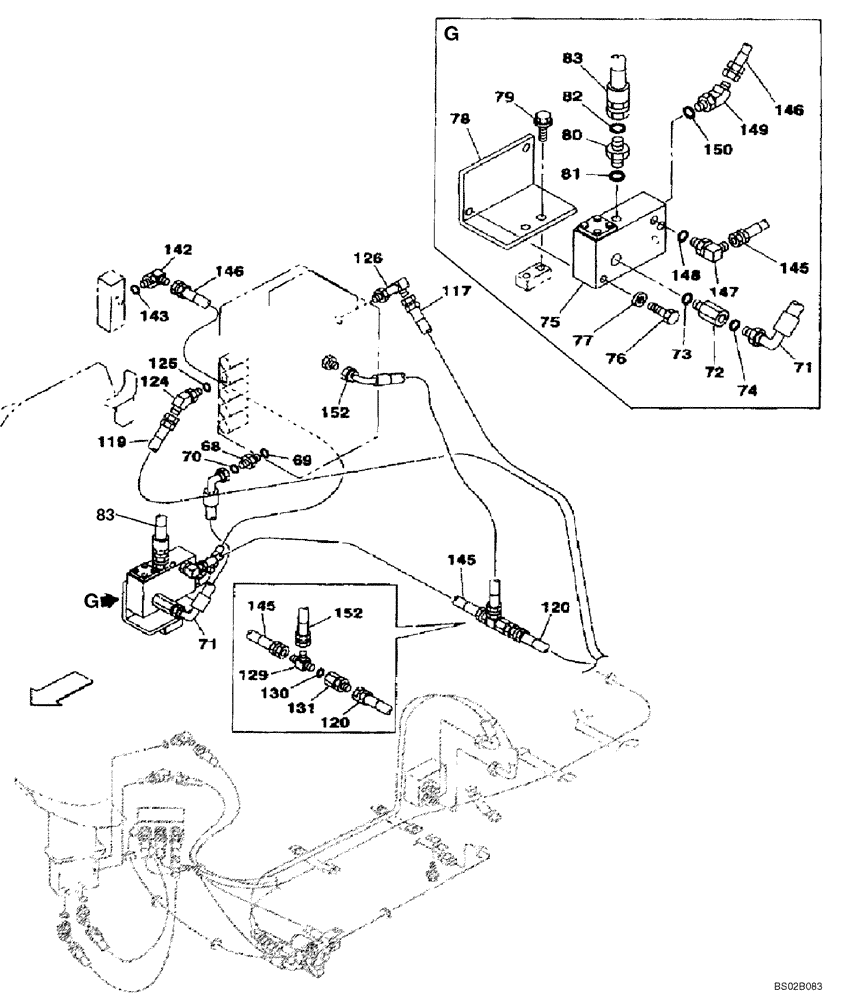

Запчасти Case CX130 (08-073) - HYDRAULICS - AUXILIARY, DOUBLE ACTING CIRCUIT/PEDAL ACTIVATED (08) - HYDRAULICS

68

KHJ1765

ADAPTER

Incl. 69

1шт.

69

154487A1

O-RING

1шт.

70

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

71

KNJ2605

HYDRAULIC HOSE

1шт.

72

KHJ1495

ADAPTER

Incl. 73

1шт.

73

154503A1

O-RING

1шт.

74

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

75

KHJ1473

VALVE

See Figure 08-109

1шт.

76

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

2шт.

77

150409A1

WASHER

10,5 x 21 x 3,2 mm

2шт.

78

KNJ2604

BRACKET

1шт.

79

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

80

KHJ1348

ADAPTER

Incl. 81

1шт.

81

154503A1

O-RING

1шт.

82

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

83

KNJ2601

HYDRAULIC HOSE,15.90 mm ID x 880.00 mm

See Figure 08-070

1шт.

117

159005A1

HOSE

3250 mm (128 in), See Figure 08-074

1шт.

119

163438A1

HYDRAULIC HOSE,3800.00 mm

See Figure 08-074

1шт.

120

157853A1

HOSE,6.3 mm ID x 2050.00 mm

See Figure 08-074

1шт.

124

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 125

1шт.

125

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

126

KHJ1178

ELBOW

1шт.

129

159497A1

TEE

Incl. 130

1шт.

130

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

131

167853A1

ADAPTER

1шт.

142

156554A1

ELBOW

Incl. 143

1шт.

143

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

145

152281A1

HOSE,63.00 mm ID x 800.00 mm

1шт.

146

153398A1

HOSE ASSY.

1шт.

147

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 148

1шт.

148

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

149

150933A1

ELBOW

Incl. 150

1шт.

150

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

152

KSJ2117

HOSE

1шт.
