(08-072) - FILTER ASSY - AUXILIARY, DOUBLE ACTING CIRCUIT/PEDAL ACTIVATED

Запчасти Case CX130 (08-072) - FILTER ASSY - AUXILIARY, DOUBLE ACTING CIRCUIT/PEDAL ACTIVATED (08) - HYDRAULICS

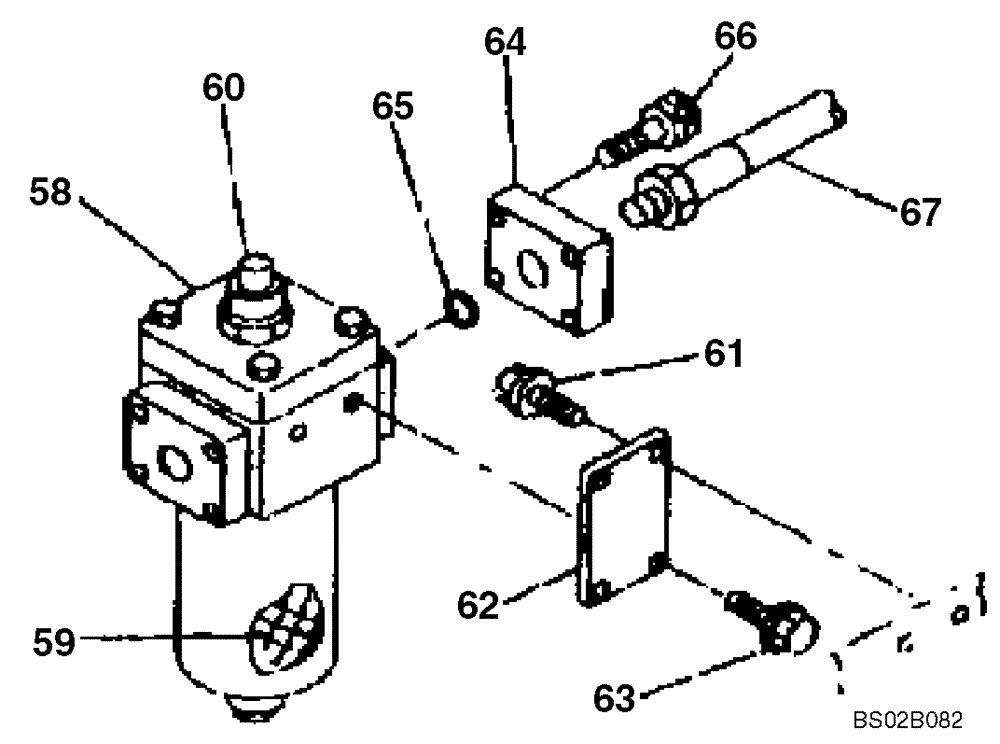

Схема запчастей Case CX130 - (08-072) - FILTER ASSY - AUXILIARY, DOUBLE ACTING CIRCUIT/PEDAL ACTIVATED (08) - HYDRAULICS
66
64
61
59
63
67
60
65
62
58
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

58

163278A1

FILTER

1шт.

59

163279A1

HYDRAULIC OIL FILTER

1шт.

60

159706A1

INDICATOR

1шт.

61

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

62

KNJ2598

BRACKET

1шт.

63

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

64

163275A1

FLANGE

1шт.

65

154569A1

O-RING

1шт.

66

862-8035

HEX SOC SCREW,M8 x 35mm, Cl 12.9

4шт.

67

KNJ2599

HYDRAULIC HOSE,19.00 mm ID x 330.00 mm

1шт.
