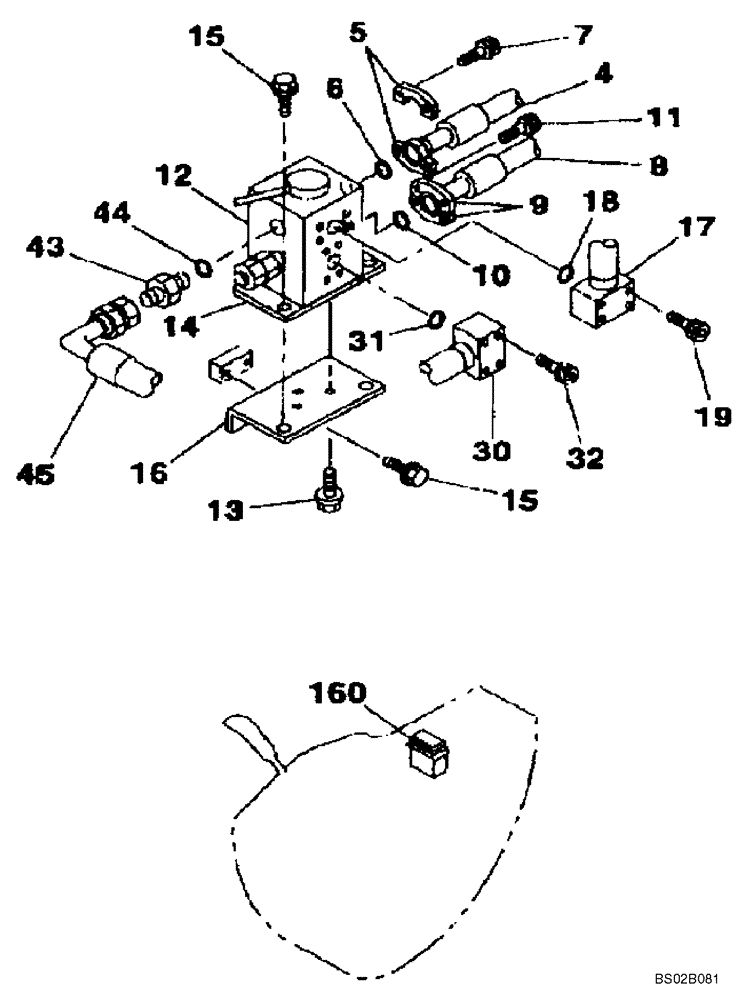

Запчасти Case CX130 (08-071) - MANIFOLD - AUXILIARY, DOUBLE ACTING CIRCUIT/PEDAL ACTIVATED (08) - HYDRAULICS

4

KNJ2541

HYDRAULIC HOSE,19.00 mm ID x 530.00 mm

See Figure 08-070

1шт.

5

153458A1

FLANGE

Split

2шт.

6

155210A1

O-RING

1шт.

7

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

8

KNJ2542

HYDRAULIC HOSE,19.00 mm ID x 670.00 mm

See Figure 08-070

1шт.

9

153458A1

FLANGE

2шт.

10

155210A1

O-RING

1шт.

11

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

12

KHJ1610

VALVE

See Figure 08-101A

1шт.

13

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

14

KNJ2543

BRACKET

1шт.

15

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

16

KNJ2590

BRACKET

1шт.

17

KNJ2591

TUBE ASSY.,20.8 mm ID x 27.2 mm OD

See Figure 08-070

1шт.

18

154528A1

O-RING

1шт.

19

862-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

4шт.

30

KNJ2592

TUBE ASSY.,20.8 mm ID x 27.2 mm OD

See Figure 08-070

1шт.

31

154528A1

O-RING

1шт.

32

862-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

4шт.

43

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl. 44

1шт.

44

154503A1

O-RING

1шт.

45

KNJ2594

HYDRAULIC HOSE,19.00 mm ID x 440.00 mm

See Figure 08-070

1шт.

160

KHR2948

SWITCH

Console Box, Left Hand Side

1шт.
