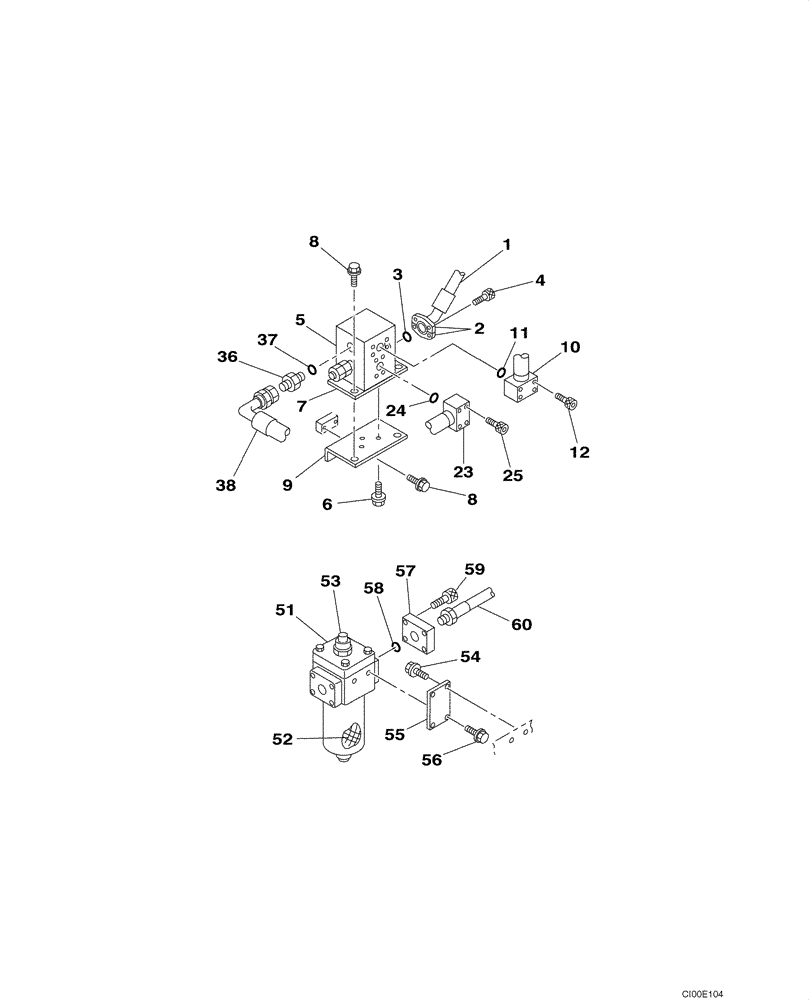

Запчасти Case CX130 (08-068) - HYDRAULICS - SINGLE ACTING CIRCUIT/HAMMER (08) - HYDRAULICS

1

KNJ2542

HYDRAULIC HOSE,19.00 mm ID x 670.00 mm

See Figure 08-067

1шт.

2

KRJ2681

FLANGE

Split

2шт.

3

155210A1

O-RING

1шт.

4

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

5

KHJ1842

MANIFOLD

1шт.

6

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

7

KNJ2543

BRACKET

1шт.

8

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

9

KNJ2590

BRACKET

1шт.

10

KNJ2591

TUBE ASSY.,20.8 mm ID x 27.2 mm OD

See Figure 08-067

1шт.

11

154528A1

O-RING

1шт.

12

862-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

4шт.

23

KNJ2592

TUBE ASSY.,20.8 mm ID x 27.2 mm OD

See Figure 08-067

1шт.

24

154528A1

O-RING

1шт.

25

862-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

4шт.

36

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl. 37

1шт.

37

154503A1

O-RING

1шт.

38

KNJ2594

HYDRAULIC HOSE,19.00 mm ID x 440.00 mm

See Figure 08-067

1шт.

51

163278A1

FILTER

Incl. 52, 53

1шт.

52

163279A1

HYDRAULIC OIL FILTER

1шт.

53

159706A1

INDICATOR

1шт.

54

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

55

KNJ2598

BRACKET

1шт.

56

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

57

163275A1

FLANGE

1шт.

58

154569A1

O-RING

1шт.

59

862-8035

HEX SOC SCREW,M8 x 35mm, Cl 12.9

4шт.

60

KNJ2599

HYDRAULIC HOSE,19.00 mm ID x 330.00 mm

See Figure 08-067

1шт.
