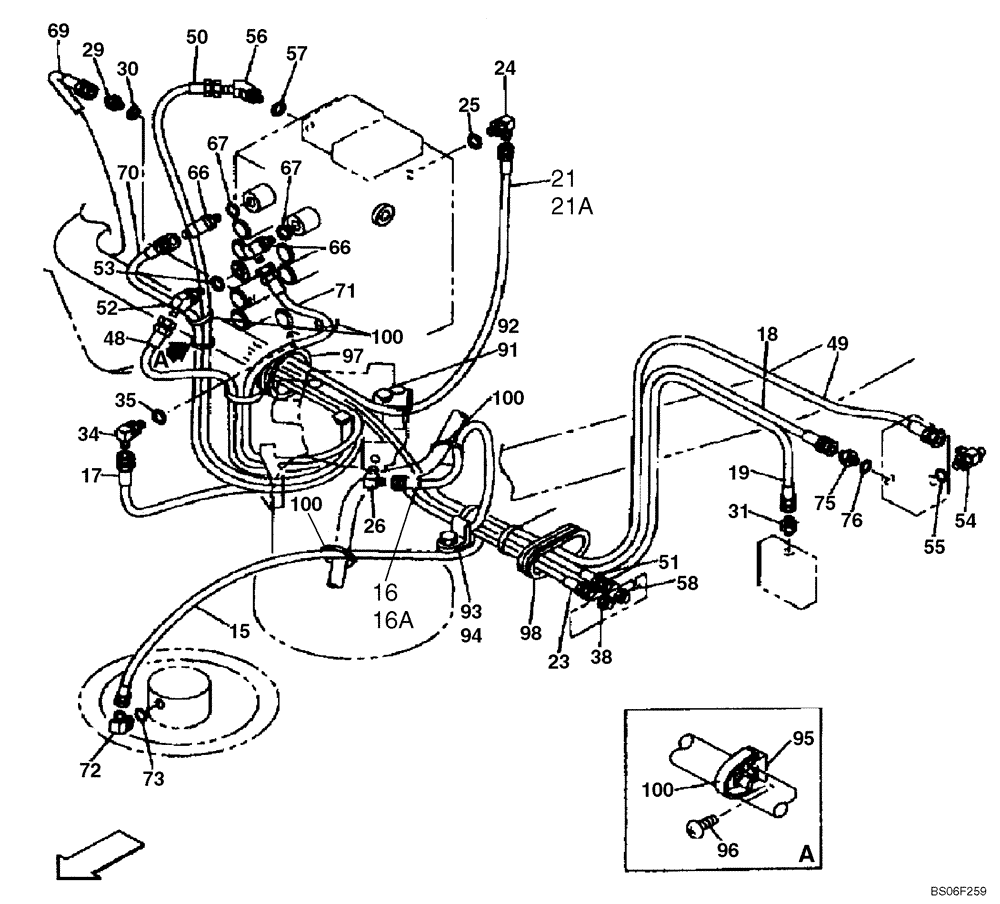

Запчасти Case CX130 (08-065) - HYDRAULICS - PILOT PRESSURE, RETURN LINES, MODELS WITH DOZER BLADE (DAC0713099 - DAC0713245) (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
Models With Dozer Blade
1шт.
15
159020A1
HOSE
See Figure 08-062
1шт.
16
168657A1
HOSE
See Figure 08-062; No Longer Used, Service With KHJ2801, Ref 16A
1шт.
16a
KHJ2801
HOSE
See Figure 08-062; Replaces 168657A1
1шт.
17
162555A1
HOSE
See Figure 08-062
1шт.
18
KMJ1839
HOSE
See Figure 08-062
1шт.
19
KMJ1839
HOSE
See Figure 08-062
1шт.
21
168657A1
HOSE
See Figure 08-062; No Longer Used, Service With KHJ2801, Ref 21A
1шт.
21a
KHJ2801
HOSE
See Figure 08-062; Replaces 168657A1
1шт.
23
161661A1
HYDRAULIC HOSE
See Figure 08-062
1шт.
24
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 25
1шт.
25
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
26
153596A1
ADAPTER
1шт.
29
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 30
1шт.
30
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
31
KHJ1291
ORIFICE
1шт.
34
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 35
1шт.
35
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
38
162826A1
ADAPTER
1шт.
48
152604A1
HOSE,63.00 mm ID x 1600.00 mm
See Figure 08-062
1шт.
49
152270A1
HOSE,6.3mm ID x 2600mm L
See Figure 08-062
1шт.
50
152581A1
HOSE,6.3mm ID x 1900mm L
See Figure 08-062
1шт.
51
152761A1
HOSE ASSY.
See Figure 08-062
1шт.
52
150933A1
ELBOW
Incl. 53
1шт.
53
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
54
159497A1
TEE
Incl. 55
1шт.
55
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
56
150933A1
ELBOW
Incl. 57
1шт.
57
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
58
162826A1
ADAPTER
1шт.
66
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 67
2шт.
67
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
69
152773A1
HOSE ASSY.
See Figure 08-063
1шт.
70
159007A1
HOSE
See Figure 08-060
1шт.
71
152581A1
HOSE,6.3mm ID x 1900mm L
See Figure 08-060
1шт.
72
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 73
1шт.
73
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
75
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 76
1шт.
76
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
91
161095A1
CLAMP
1шт.
92
627-8020
BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd
2шт.
896-15008
WASHER,9mm ID x 21mm OD x 2.5mm Thk
2шт.
93
KHR2582
CLAMP
1шт.
94
KHJ2298
BOLT,Spcl
1шт.
95
150860A1
COLLAR
1шт.
96
840-168
SCREW,Pan, M6 x 1 x 8mm, Cl 4.8
1шт.
97
KNJ2751
GROMMET
1шт.
98
152619A1
GROMMET
1шт.
100
150496A1
MOUNTING CLIP
250 mm (10 in)
1шт.
Выбрано товаров: 49
