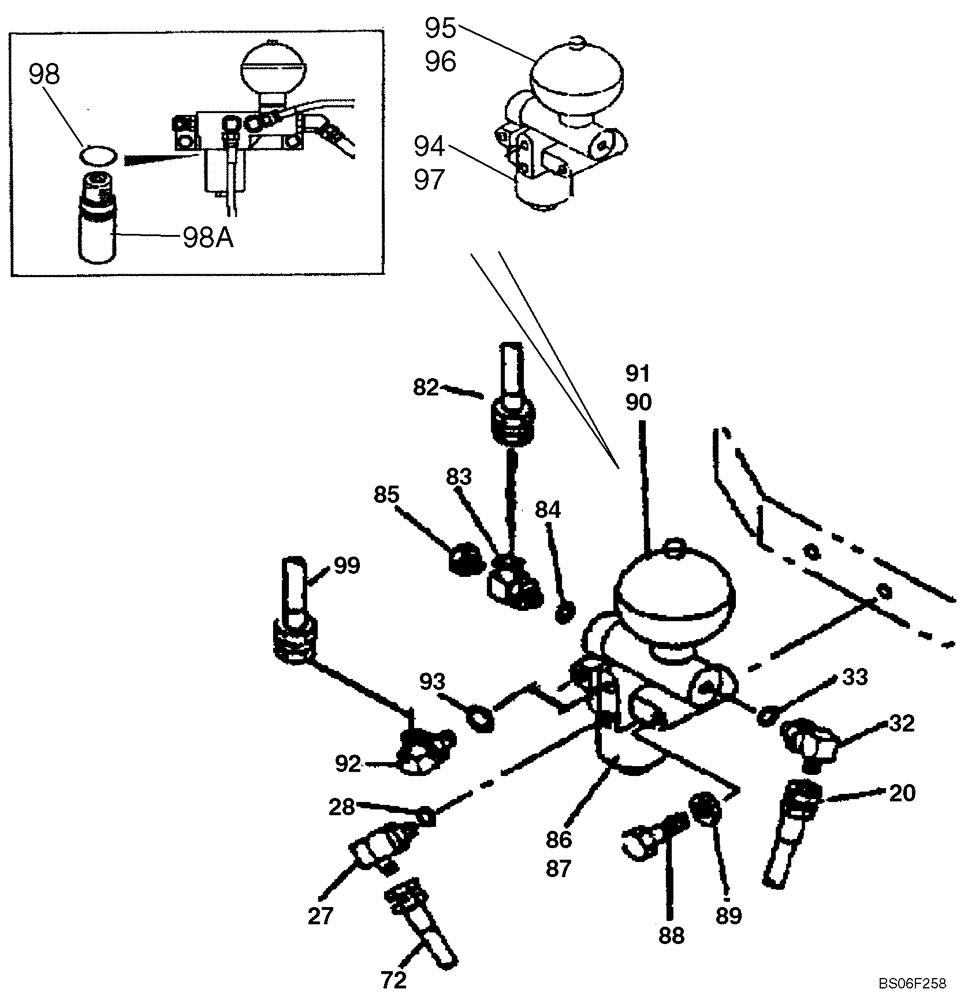

Запчасти Case CX130 (08-064) - ACCUMULATOR - PILOT PRESSURE, RETURN LINES, MODELS WITH DOZER BLADE (DAC0713246 - ) (08) - HYDRAULICS

Models With Dozer Blade

1шт.

20

163716A1

HOSE

See Figure 08-062

1шт.

27

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 28

1шт.

28

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

32

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 33

1шт.

33

154475A1

O-RING

1шт.

72

152773A1

HOSE ASSY.

See Figure 08-066

1шт.

82

KNJ3036

HYDRAULIC HOSE,12.70 mm ID x 510.00 mm

See Figure 08-061

1шт.

83

KHJ1205

ELBOW

Incl. 84

1шт.

84

154487A1

O-RING

1шт.

85

158352A1

PLUG

1шт.

86

KHJ1474

FILTER ASSY

Incl. 87; No Longer Used, Order Accumulator Assy KHJ14870, Ref 94

1шт.

87

KHJ17730

HYDRAULIC OIL FILTER

Replaces KHJ1493

1шт.

88

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

2шт.

89

150409A1

WASHER

10,5 x 21 x 3,2 mm

2шт.

90

150894A1

ACCUMULATOR

Incl. 91; No Longer Used, Order Accumulator Assy KHJ14870, Ref 94

1шт.

91

154487A1

O-RING

1шт.

92

150933A1

ELBOW

Incl. 93

1шт.

93

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

94

KHJ14870

ACCUMULATOR

Incl. 95 - 98A

1шт.

95

KHJ2359

ACCUMULATOR

1шт.

96

154487A1

O-RING

1шт.

97

KHJ14880

MANIFOLD

Incl. 98, 98A

1шт.

98

154641A1

O-RING

1шт.

98a

KHJ1493

HYDRAULIC OIL FILTER

1шт.

99

KHJ2419

HYDRAULIC HOSE,6.30 mm ID x 270.00 mm

See Figure 08-061

1шт.
