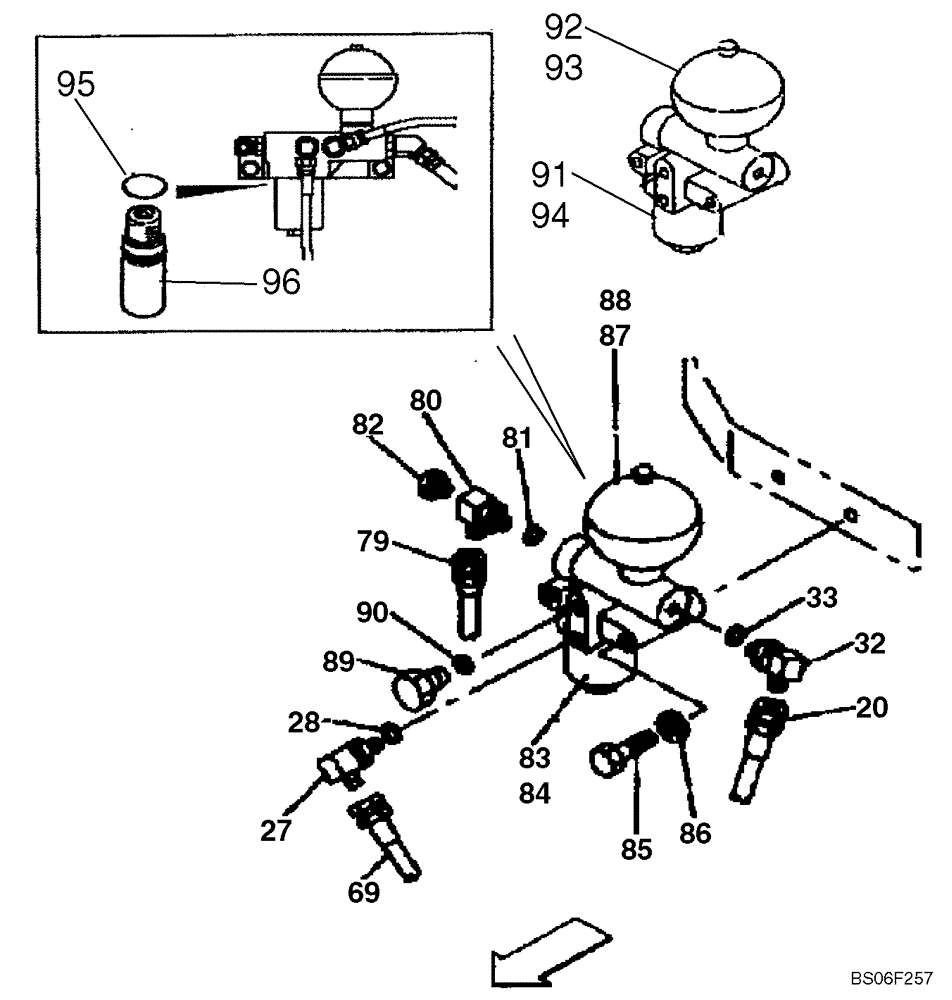

Запчасти Case CX130 (08-063) - ACCUMULATOR - PILOT PRESSURE, RETURN LINES, MODELS WITH DOZER BLADE (DAC0713099 - DAC0713245) (08) - HYDRAULICS

Models With Dozer Blade

1шт.

20

163716A1

HOSE

See Figure 08-062

1шт.

27

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 28

1шт.

28

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

32

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 33

1шт.

33

154475A1

O-RING

1шт.

69

152773A1

HOSE ASSY.

See Figure 08-065

1шт.

79

KHJ1168

HYDRAULIC HOSE,9.52 mm ID x 350.00 mm

See Figure 08-060

1шт.

80

167907A1

ELBOW

Incl. 81

1шт.

81

154487A1

O-RING

1шт.

82

158352A1

PLUG

1шт.

83

KHJ1474

FILTER ASSY

Incl. 84; No Longer Used, Order Accumulator Assy KHJ14870, Ref 91

1шт.

84

KHJ17730

HYDRAULIC OIL FILTER

Replaces KHJ1493

1шт.

85

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

2шт.

86

150409A1

WASHER

2шт.

87

150894A1

ACCUMULATOR

Incl. 88; No Longer Used, Order Accumulator Assy KHJ14870, Ref 91

1шт.

88

154487A1

O-RING

1шт.

89

159002A1

PLUG

Incl. 90

1шт.

90

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

91

KHJ14870

ACCUMULATOR

Incl. 92 - 96

1шт.

92

KHJ2359

ACCUMULATOR

1шт.

93

154487A1

O-RING

1шт.

94

KHJ14880

MANIFOLD

Incl. 95, 96

1шт.

95

154641A1

O-RING

1шт.

96

KHJ1493

HYDRAULIC OIL FILTER

1шт.
