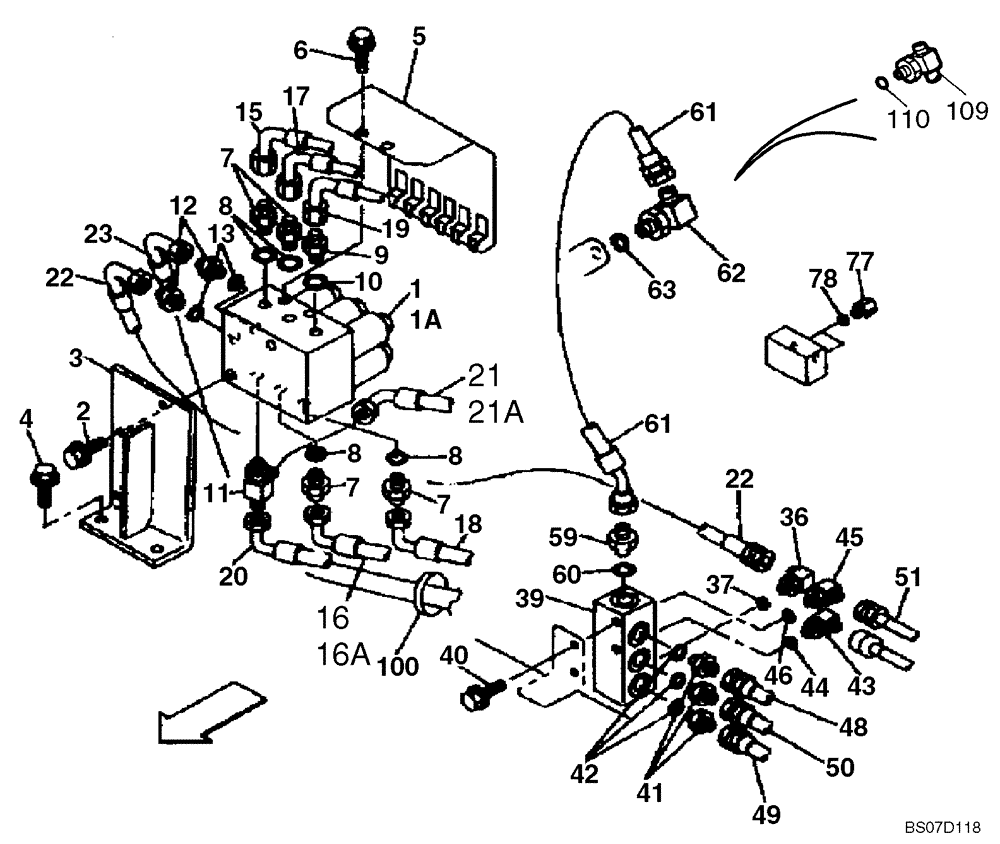

Запчасти Case CX130 (08-062) - HYDRAULICS - PILOT PRESSURE, RETURN LINES, MODELS WITH DOZER BLADE (08) - HYDRAULICS

Models With Dozer Blade

1шт.

1

KHJ1972

SOLENOID VALVE

See Figure 08-096; No Longer Available, Order KHJ15460

1шт.

1a

KHJ15460

SOLENOID VALVE

See Figure 08-096A

1шт.

2

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

3

KHJ1582

BRACKET

2шт.

4

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

5

KHJ1581

COVER

1шт.

6

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

2шт.

7

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 8

4шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

9

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

11

163422A1

TEE

1шт.

12

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 13

2шт.

13

154475A1

O-RING

1шт.

15

159020A1

HOSE

See Figure 08-065, 08-066

1шт.

16

168657A1

HOSE

See Figure 08-065, 08-066; No Longer Used, Service With KHJ2801, Ref 16A

1шт.

16a

KHJ2801

HOSE

See Figure 08-065, 08-066; Replaces 168657A1

1шт.

17

162555A1

HOSE

See Figure 08-065, 08-066

1шт.

18

KMJ1839

HOSE

See Figure 08-065, 08-066

1шт.

19

KMJ1839

HOSE

See Figure 08-065, 08-066

1шт.

20

163716A1

HOSE

See Figure 08-063, 08-064

1шт.

21

168657A1

HOSE

See Figure 08-065, 08-066; No Longer Used, Service With KHJ2801, Ref 21A

1шт.

21a

KHJ2801

HOSE

See Figure 08-065, 08-066; Replaces 168657A1

1шт.

22

162534A1

HOSE

1шт.

23

161661A1

HYDRAULIC HOSE

See Figure 08-065, 08-066

1шт.

36

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 37

1шт.

37

154475A1

O-RING

1шт.

39

KNJ2574

MANIFOLD

1шт.

40

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

41

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 42

3шт.

42

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

43

156554A1

ELBOW

Incl. 44

1шт.

44

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

45

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 46

1шт.

46

154475A1

O-RING

1шт.

48

152604A1

HOSE,63.00 mm ID x 1600.00 mm

See Figure 08-065, 08-066

1шт.

49

152270A1

HOSE,6.3mm ID x 2600mm L

See Figure 08-065, 08-066

1шт.

50

152581A1

HOSE,6.3mm ID x 1900mm L

See Figure 08-065, 08-066

1шт.

51

152761A1

HOSE ASSY.

See Figure 08-065, 08-066

1шт.

59

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 60

1шт.

60

154487A1

O-RING

1шт.

61

KNJ2750

HYDRAULIC HOSE,12.70 mm ID x 800.00 mm

1шт.

62

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incl. 63; Prior To P.I.N. DAC131773

1шт.

63

154487A1

O-RING

1шт.

77

KHJ1584

UNION

Incl. 78

1шт.

78

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

100

150496A1

MOUNTING CLIP

250 mm (10 in)

1шт.

109

169309A1

TEE

Incl. 110; P.I.N. DAC131773 And After

1шт.

110

154487A1

O-RING

1шт.
