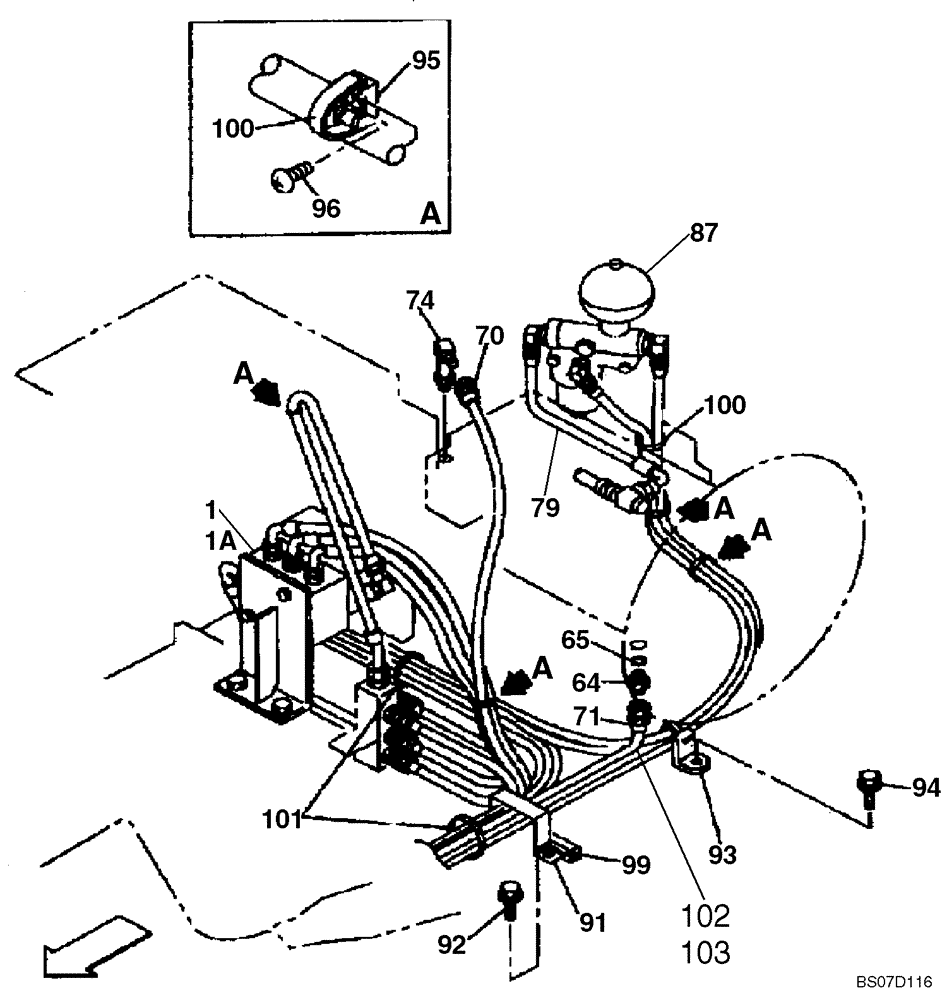

Запчасти Case CX130 (08-060) - HYDRAULICS - PILOT PRESSURE, RETURN LINES, MODELS WITH DOZER BLADE (DAC0713099 - DAC0713245) (08) - HYDRAULICS

Models With Dozer Blade

1шт.

1

KHJ1972

SOLENOID VALVE

See Figure 08-096; No Longer Available, Order KHJ15460

1шт.

1a

KHJ15460

SOLENOID VALVE

See Figure 08-096A

1шт.

64

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 65

1шт.

65

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

70

159007A1

HOSE

See Figure 08-065

1шт.

71

152581A1

HOSE,6.3mm ID x 1900mm L

See Figure 08-065

1шт.

74

KHJ1178

ELBOW

1шт.

79

KHJ1168

HYDRAULIC HOSE,9.52 mm ID x 350.00 mm

See Figure 08-063

1шт.

87

REF

INSTRUCTION

Accumulator; See Figure 08-063

1шт.

91

161095A1

CLAMP

1шт.

92

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

93

KHR2582

CLAMP

1шт.

94

KHJ2298

BOLT,Spcl

1шт.

95

150860A1

COLLAR

4шт.

96

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

4шт.

99

167839A1

GROMMET

1шт.

100

150496A1

MOUNTING CLIP

250 mm (10 in)

5шт.

101

150071A1

MOUNTING CLIP

2шт.

102

152662A1

PLASTIC-RUBBER TUBE

1шт.

103

150067A1

MOUNTING CLIP

2шт.
