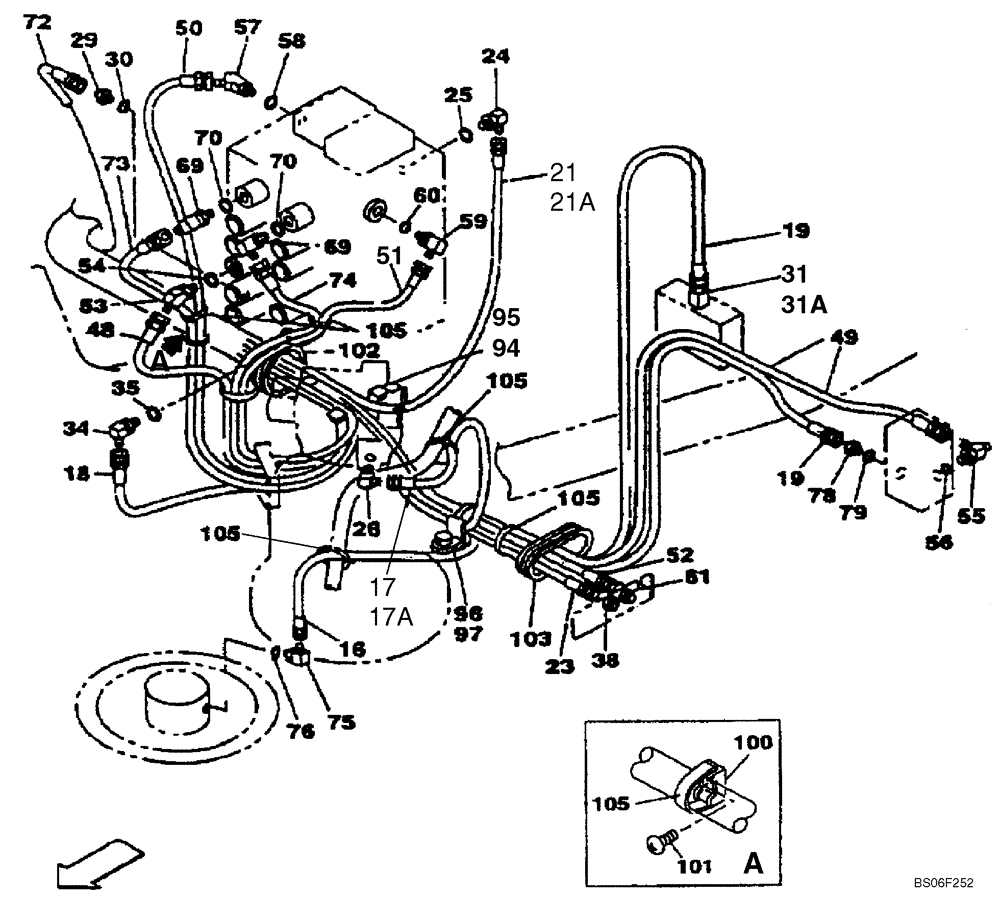

Запчасти Case CX130 (08-059) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (DAC0713246 - ) (08) - HYDRAULICS

16

KAJ3243

HYDRAULIC HOSE

See Figure 08-055

1шт.

17

168657A1

HOSE

See Figure 08-055; No Longer Used, Service With KHJ2801, Ref 17A

1шт.

17a

KHJ2801

HOSE

See Figure 08-055; Replaces 168657A1

1шт.

18

162555A1

HOSE

See Figure 08-055

1шт.

19

KMJ1839

HOSE

See Figure 08-055

2шт.

21

168657A1

HOSE

See Figure 08-055; No Longer Used, Service With KHJ2801, Ref 21A

1шт.

21a

KHJ2801

HOSE

See Figure 08-055; Replaces 168657A1

1шт.

23

161661A1

HYDRAULIC HOSE

See Figure 08-055

1шт.

24

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 25

1шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

26

153596A1

ADAPTER

1шт.

29

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 30

1шт.

30

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

31

KHJ1291

ORIFICE

Incl. 31A

1шт.

31a

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

34

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 35

1шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

38

162826A1

ADAPTER

1шт.

48

152604A1

HOSE,63.00 mm ID x 1600.00 mm

See Figure 08-055

1шт.

49

152270A1

HOSE,6.3mm ID x 2600mm L

See Figure 08-055

1шт.

50

152581A1

HOSE,6.3mm ID x 1900mm L

See Figure 08-055

1шт.

51

152704A1

HOSE

1800 mm (70-7/8 in), See Figure 08-055

1шт.

52

152761A1

HOSE ASSY.

See Figure 08-055

1шт.

53

150933A1

ELBOW

Incl. 54

1шт.

54

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

55

159497A1

TEE

Incl. 56

1шт.

56

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

57

150933A1

ELBOW

Incl. 58

1шт.

58

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

59

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 60

1шт.

60

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

61

162826A1

ADAPTER

1шт.

69

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 70

2шт.

70

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

72

152773A1

HOSE ASSY.

See Figure 08-057

1шт.

73

KHJ1233

HYDRAULIC HOSE,6.35 mm ID x 2150.00 mm

See Figure 08-054; Replaces KAJ3240

1шт.

74

KHJ2691

HYDRAULIC HOSE,6.30 mm ID x 2600.00 mm

See Figure 08-054; Replaces 152270A1

1шт.

75

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 76

1шт.

76

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

78

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 79

1шт.

79

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

94

161095A1

CLAMP

1шт.

95

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

96

KHR2582

CLAMP

1шт.

97

KHJ2298

BOLT,Spcl

1шт.

100

150860A1

COLLAR

1шт.

101

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

102

KNJ2751

GROMMET

1шт.

103

152619A1

GROMMET

1шт.

105

150496A1

MOUNTING CLIP

250 mm (10 in)

1шт.
