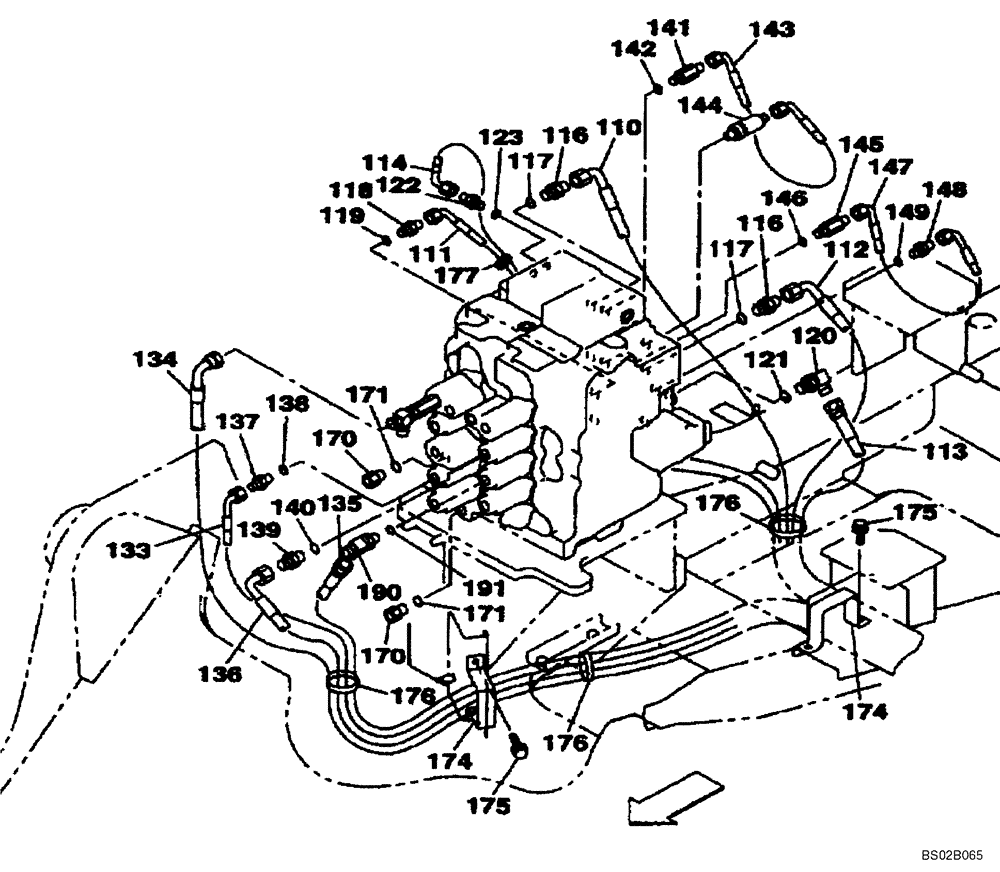

Запчасти Case CX130 (08-051) - HYDRAULICS - PILOT CONTROL LINES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
Control Valve
1шт.
Models With Load Hold And Alternate Joystick Control Pattern
1шт.
110
159228A1
HOSE ASSY.
1750 mm (68-7/8 in), See Figure 08-046
1шт.
111
KHJ1608
HOSE
See Figure 08-045
1шт.
112
164233A1
HYDRAULIC HOSE
See Figure 08-045
1шт.
113
159229A1
HOSE ASSY.
1650 mm (65 in), See Figure 08-046
1шт.
114
KAJ3099
HYDRAULIC HOSE
See Figure 08-045
1шт.
116
152747A1
ADAPTER
Incl. 117
2шт.
117
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
118
159848A1
ORIFICE
Special, With Orifice, Incl. 119
1шт.
119
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
120
153559A1
ELBOW
Incl. 121
1шт.
121
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
122
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 123
1шт.
123
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
133
KAJ3398
HYDRAULIC HOSE
See Figure 08-045
1шт.
134
164115A1
HYDRAULIC HOSE
See Figure 08-046
1шт.
135
KAJ2759
HYDRAULIC HOSE
See Figure 08-046
1шт.
136
KAJ2759
HYDRAULIC HOSE
See Figure 08-045
1шт.
137
159848A1
ORIFICE
Special, With Orifice, Incl. 138
1шт.
138
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
139
152747A1
ADAPTER
Incl. 140
2шт.
140
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
141
162554A1
FITTING
Long, Incl. 142
1шт.
142
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
143
161176A1
HOSE ASSY.
450 mm (17-3/4 in)
1шт.
144
KHJ1399
VALVE, CUSHION
See Figure 08-083
1шт.
145
162554A1
FITTING
Long, Incl. 146
1шт.
146
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
147
161176A1
HOSE ASSY.
450 mm (17-3/4 in)
1шт.
148
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 149
1шт.
149
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
170
159026A1
SOCKET
Incl. 171
2шт.
171
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
174
161095A1
CLAMP
2шт.
175
627-8020
BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd
4шт.
896-15008
WASHER,9mm ID x 21mm OD x 2.5mm Thk
4шт.
176
150071A1
MOUNTING CLIP
1шт.
177
150496A1
MOUNTING CLIP
250 mm (10 in)
1шт.
190
162827A1
TEE
Incl. 191
1шт.
191
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
Выбрано товаров: 41
