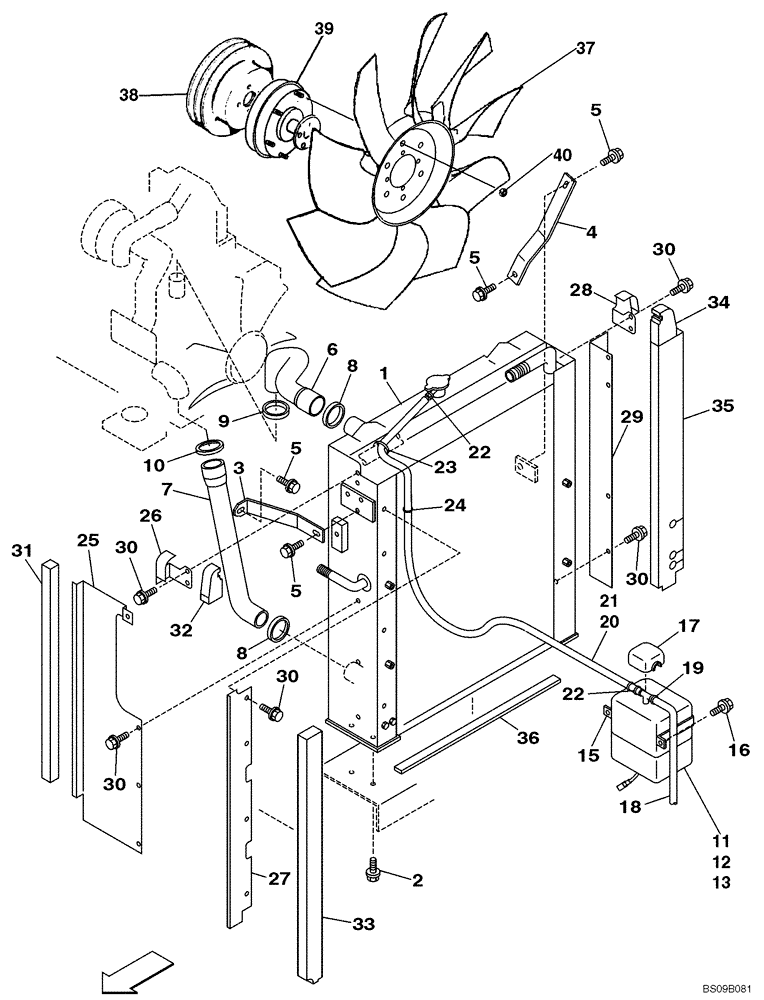

Запчасти Case CX130 (02-04) - RADIATOR - COOLANT RECOVERY SYSTEM (02) - ENGINE

1

REF

INSTRUCTION

Radiator, Not Serviced As An Assembly, Production Only, See Figure 02-05

1шт.

2

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

3

KNH0856

STAY

1шт.

4

KNH0831

STAY

1шт.

5

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

6

KNH0857

RADIATOR HOSE

1шт.

7

KNH0858

RADIATOR HOSE

1шт.

8

165793A1

COLLAR

2шт.

9

165792A1

COLLAR

1шт.

10

165794A1

COLLAR

1шт.

160626A1

RESERVOIR, COOLANT E

Incl. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

Tank

1шт.

12

161740A1

SWITCH

1шт.

13

166131A1

CAP

1шт.

15

KRH1270

HOLDER

1шт.

16

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

17

157140A1

COVER

1шт.

18

150066A1

HOSE,7.00 mm ID x 800.00 mm

Cut From 157487A1

1шт.

19

165952A1

MOUNTING CLIP

1шт.

20

150487A1

HOSE

1шт.

21

150401A1

PLASTIC-RUBBER TUBE,13 mm ID, 17.5 mm OD, 1000 mm Length

1шт.

22

165951A1

CLAMP

2шт.

23

150498A1

MOUNTING CLIP

300 mm (11-3/4 in)

1шт.

24

150067A1

MOUNTING CLIP

150 mm (6 in)

1шт.

25

KNH0859

BRACKET

1шт.

26

KNH0860

BRACKET

1шт.

27

KNH0861

BRACKET

1шт.

28

KNH0862

BRACKET

1шт.

29

KNH0863

BRACKET

1шт.

30

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

16шт.

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

16шт.

31

KNH0864

FOAM INSULATION

1шт.

32

KNH0865

FOAM INSULATION

1шт.

33

KNH0866

FOAM INSULATION

1шт.

34

KNH0867

FOAM INSULATION

1шт.

35

KNH0868

FOAM INSULATION

1шт.

36

KNH0795

SEAL

1шт.

37

370809A1

FAN

Engine

1шт.

38

A189284

PULLEY,151mm OD

1шт.

39

375075A1

DRIVE ASSY.

Fan

1шт.

40

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.
