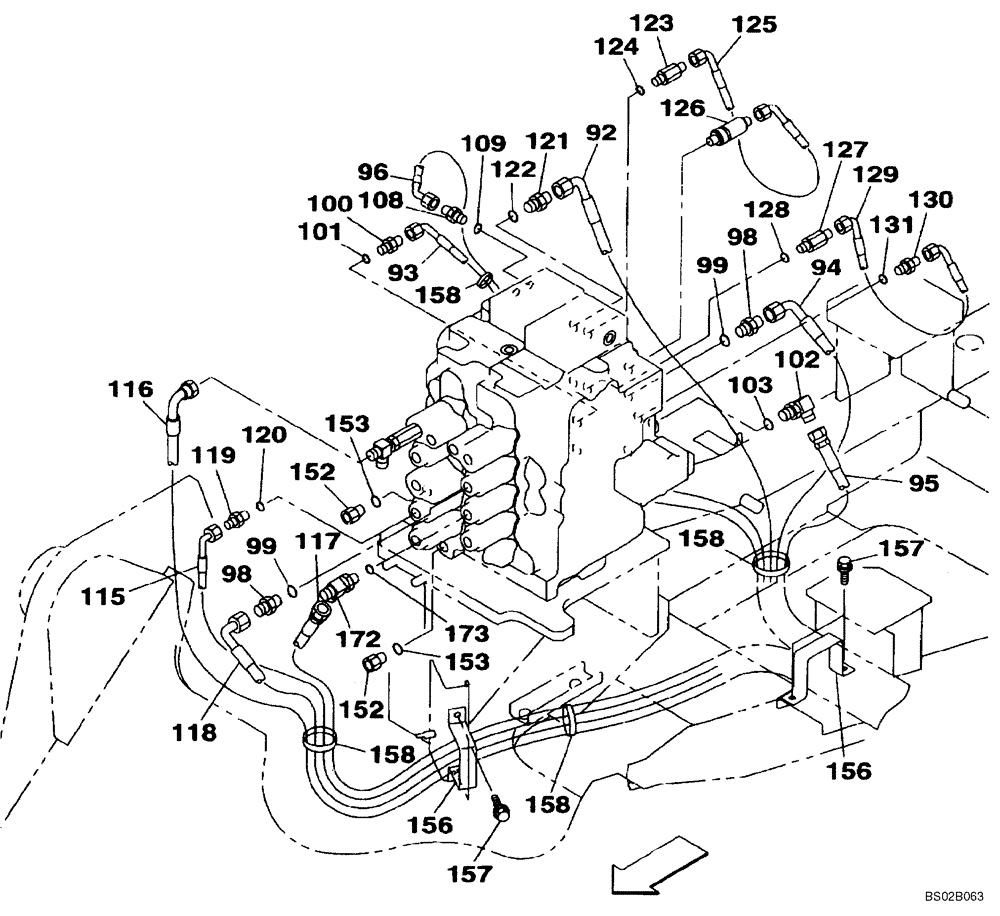

Запчасти Case CX130 (08-049) - HYDRAULICS - PILOT CONTROL LINES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
Control Valve
1шт.
Models With Load Hold
1шт.
92
159228A1
HOSE ASSY.
1750 mm (68-7/8 in), See Figure 08-044
1шт.
93
KHJ1608
HOSE
See Figure 08-043
1шт.
94
164233A1
HYDRAULIC HOSE
See Figure 08-043
1шт.
95
159229A1
HOSE ASSY.
1650 mm (65 in), See Figure 08-044
1шт.
96
KAJ3099
HYDRAULIC HOSE
See Figure 08-043
1шт.
98
152747A1
ADAPTER
Incl. 99
2шт.
99
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
100
159848A1
ORIFICE
Special, With Orifice, Incl. 101
1шт.
101
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
102
153559A1
ELBOW
Incl. 103
1шт.
103
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
108
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 109
1шт.
109
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
115
KAJ3398
HYDRAULIC HOSE
See Figure 08-043
1шт.
116
164115A1
HYDRAULIC HOSE
See Figure 08-044
1шт.
117
KAJ2759
HYDRAULIC HOSE
See Figure 08-044
1шт.
118
KAJ2759
HYDRAULIC HOSE
See Figure 08-043
1шт.
119
159848A1
ORIFICE
Special, With Orifice, Incl. 120
1шт.
120
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
121
152747A1
ADAPTER
Incl. 122
2шт.
122
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
123
162554A1
FITTING
Long, Incl. 124
1шт.
124
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
125
161176A1
HOSE ASSY.
450 mm (17-3/4 in)
1шт.
126
KHJ1399
VALVE, CUSHION
See Figure 08-083
1шт.
127
162554A1
FITTING
Long, Incl. 128
1шт.
128
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
129
161176A1
HOSE ASSY.
450 mm (17-3/4 in)
1шт.
130
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 131
1шт.
131
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
152
159026A1
SOCKET
Incl. 153
2шт.
153
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
156
161095A1
CLAMP
2шт.
157
627-8020
BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd
4шт.
896-15008
WASHER,9mm ID x 21mm OD x 2.5mm Thk
4шт.
158
150071A1
MOUNTING CLIP
1шт.
172
162827A1
TEE
Incl. 173
1шт.
173
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
Выбрано товаров: 40
