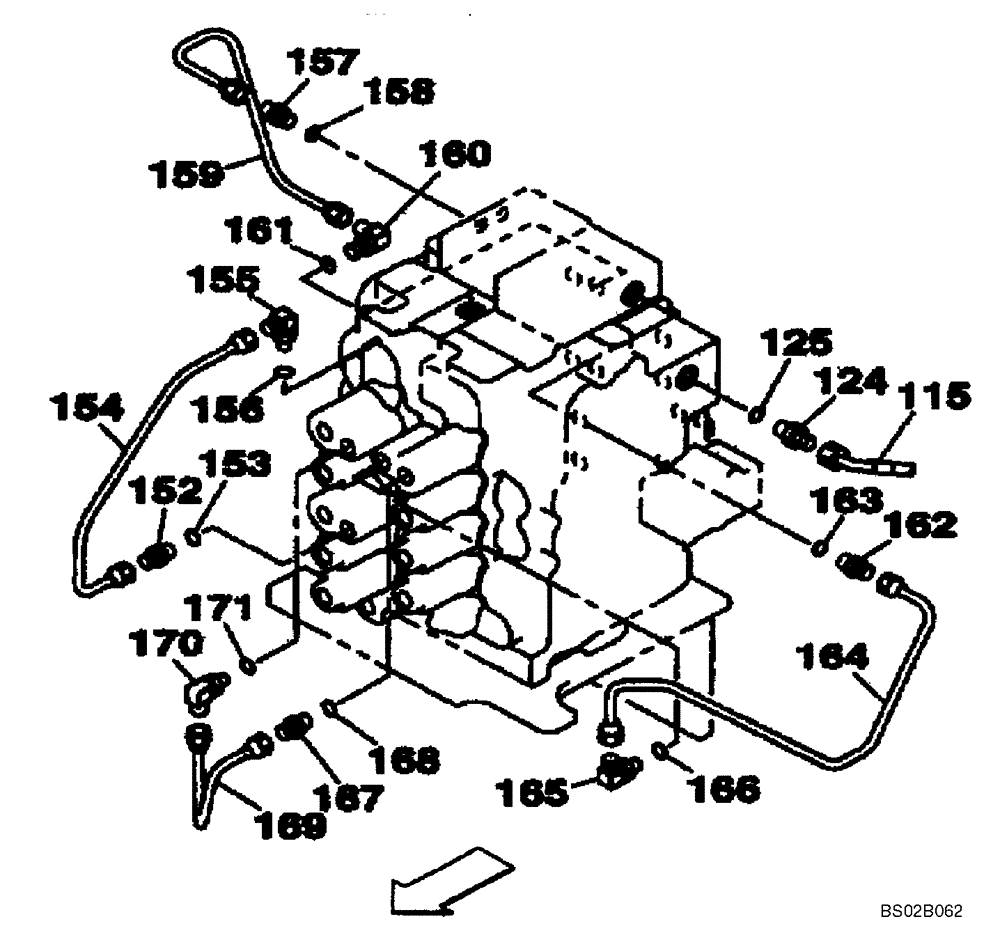

Запчасти Case CX130 (08-048) - HYDRAULICS - PILOT CONTROL LINES (08) - HYDRAULICS

Control Valve

1шт.

Standard Models

1шт.

Models With Alternate Joystick Control Pattern

1шт.

115

161271A1

HOSE ASSY.

1650 mm (65 in), Standard Models, See Figure 08-040

1шт.

115

161482A1

HOSE ASSY.

1650 mm (65 in), Models With Alternate Joystick Control Pattern, See Figure 08-042

1шт.

124

162366A1

ADAPTER

Incl. 125

1шт.

125

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

152

KHJ1390

NIPPLE, LUBE

NIPPLE Incl. 153

1шт.

153

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

154

KNJ2752

TUBE ASSY.,6 mm ID x 8 mm OD

1шт.

155

KHJ1391

COUPLING

Incl. 156

1шт.

156

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

157

KHJ1390

NIPPLE, LUBE

NIPPLE Incl. 158

1шт.

158

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

159

KNJ2585

TUBE ASSY.,6 mm ID x 8 mm OD

1шт.

160

KHJ1391

COUPLING

Incl. 161

1шт.

161

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

162

KHJ1390

NIPPLE, LUBE

NIPPLE Incl. 163, DAC0713099 - DAC0713240

1шт.

163

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

164

KNJ2586

TUBE ASSY.

DAC0713099 - DAC0713240

1шт.

165

KHJ1391

COUPLING

Incl. 166, DAC0713099 - DAC0713240

1шт.

166

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

167

KHJ1390

NIPPLE, LUBE

NIPPLE Incl. 168

1шт.

168

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

169

KNJ2747

TUBE ASSY.,6 mm ID x 8 mm OD

1шт.

170

KHJ1391

COUPLING

Incl. 171

1шт.

171

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

180

159085A1

PLUG

Incl. 181, On Tube, Radiator to Sump Tank, Models With Alternate Joystick Control Pattern

1шт.

181

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
