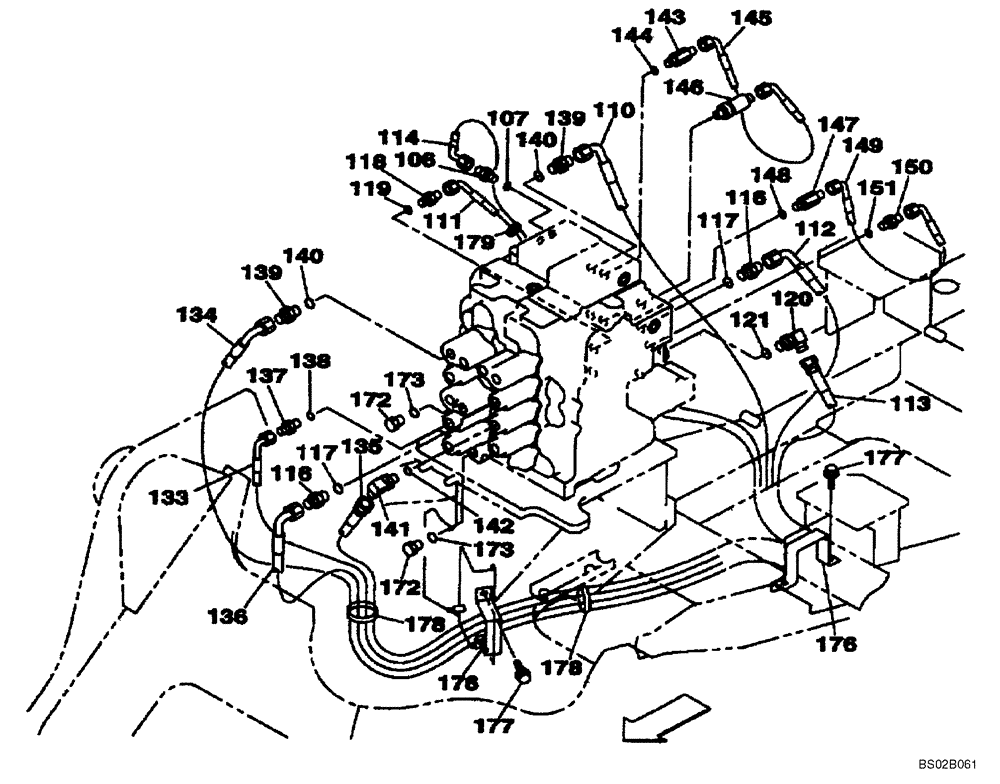

Запчасти Case CX130 (08-047) - HYDRAULICS - PILOT CONTROL LINES (08) - HYDRAULICS

Control Valve

1шт.

Standard Models

1шт.

Models With Alternate Joystick Control Pattern

1шт.

106

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 107

1шт.

107

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

110

159228A1

HOSE ASSY.

1750 mm (68-7/8 in), See Figure 08-040, 08-042

1шт.

111

KHJ1608

HOSE

See Figure 08-039, 08-041

1шт.

112

164233A1

HYDRAULIC HOSE

See Figure 08-039, 08-041

1шт.

113

159229A1

HOSE ASSY.

1650 mm (65 in), See Figure 08-040, 08-042

1шт.

114

KAJ3099

HYDRAULIC HOSE

See Figure 08-039, 08-041

1шт.

116

152747A1

ADAPTER

Incl. 117

2шт.

117

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

118

159848A1

ORIFICE

Special, With Orifice, Incl. 119

1шт.

119

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

120

153559A1

ELBOW

Incl. 121

1шт.

121

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

133

KAJ3398

HYDRAULIC HOSE

See Figure 08-039, 08-041

1шт.

134

164115A1

HYDRAULIC HOSE

See Figure 08-040, 08-042

1шт.

135

KAJ2759

HYDRAULIC HOSE

See Figure 08-040, 08-042

1шт.

136

KAJ2759

HYDRAULIC HOSE

See Figure 08-039, 08-041

1шт.

137

159848A1

ORIFICE

Special, With Orifice, Incl. 138

1шт.

138

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

139

152747A1

ADAPTER

Incl. 140

2шт.

140

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

141

153559A1

ELBOW

Incl. 142

1шт.

142

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

143

162554A1

FITTING

Long, Incl. 144

1шт.

144

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

145

161176A1

HOSE ASSY.

450 mm (17-3/4 in)

1шт.

146

KHJ1399

VALVE, CUSHION

See Figure 08-083

1шт.

147

162554A1

FITTING

Long, Incl. 148

1шт.

148

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

149

161176A1

HOSE ASSY.

450 mm (17-3/4 in)

1шт.

150

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 151

1шт.

151

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

172

159026A1

SOCKET

Incl. 173

2шт.

173

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

176

161095A1

CLAMP

2шт.

177

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

178

150071A1

MOUNTING CLIP

1шт.

179

150496A1

MOUNTING CLIP

250 mm (10 in)

1шт.
