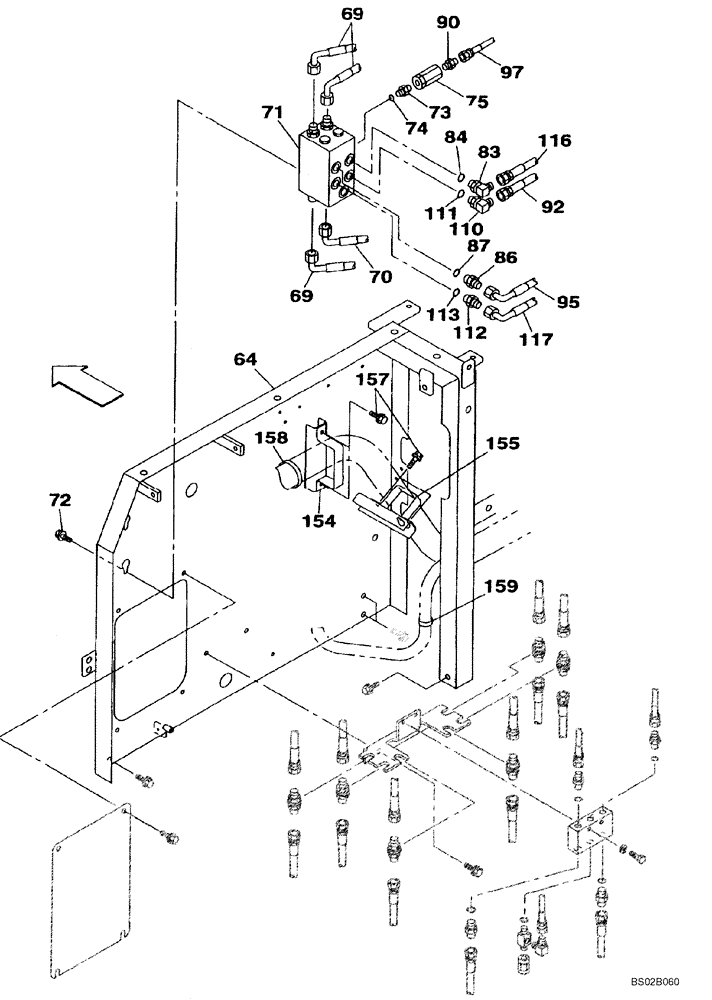

Запчасти Case CX130 (08-044) - HYDRAULICS - PILOT CONTROL LINES (08) - HYDRAULICS

Partition

1шт.

Models With Load Hold

1шт.

64

KNJ2995

BRACKET

Replaces KNJ2888

1шт.

69

168411A1

HOSE,650.00 mm

See Figure 08-043

3шт.

70

KTJ1639

HOSE

See Figure 08-043

1шт.

71

KNJ14260

VALVE

Replaces KNJ2951

1шт.

72

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

73

152899A1

HYD CONNECTOR

Incl. 74

1шт.

74

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

75

151552A1

FILTER

1шт.

83

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 84

1шт.

84

154475A1

O-RING

1шт.

86

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 87

1шт.

87

154475A1

O-RING

1шт.

90

153603A1

ADAPTER

1шт.

92

159228A1

HOSE ASSY.

1750 mm (68-7/8 in), See Figure 08-049

1шт.

95

159229A1

HOSE ASSY.

1650 mm (65 in), See Figure 08-049

1шт.

97

161482A1

HOSE ASSY.

1650 mm (65 in), See Figure 08-050

1шт.

110

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 111

1шт.

111

154475A1

O-RING

1шт.

112

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 113

1шт.

113

154475A1

O-RING

1шт.

116

164115A1

HYDRAULIC HOSE

See Figure 08-049

1шт.

117

KAJ2759

HYDRAULIC HOSE

See Figure 08-049

1шт.

154

159036A1

CLAMP

1шт.

155

162506A1

CLAMP

1шт.

157

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

158

150071A1

MOUNTING CLIP

1шт.

159

150496A1

MOUNTING CLIP

250 mm (10 in)

1шт.
