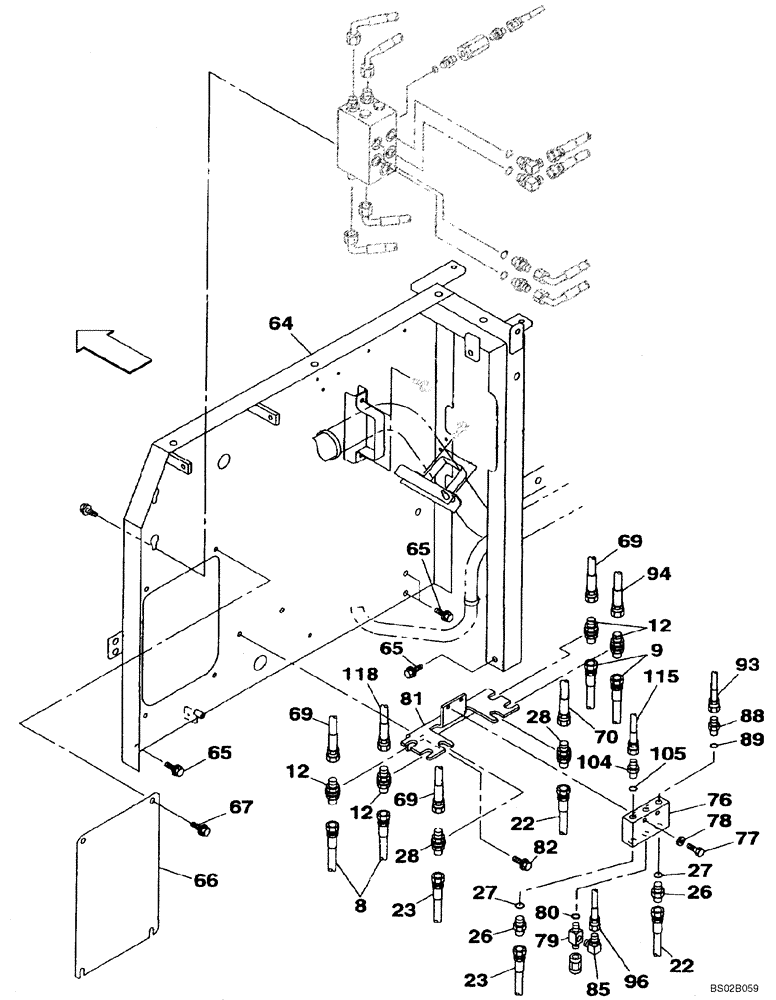

Запчасти Case CX130 (08-043) - HYDRAULICS - PILOT (08) - HYDRAULICS

Partition

1шт.

Models With Load Hold

1шт.

8

KRJ4336

HYDRAULIC HOSE,9.50 mm ID x 2200.00 mm

See Figure 08-038

2шт.

9

168025A1

HYDRAULIC HOSE,9.50 mm ID x 1950.00 mm

See Figure 08-038

2шт.

12

162826A1

ADAPTER

Bulkhead

4шт.

22

KHJ1345

HYDRAULIC HOSE,9.52 mm ID x 2150.00 mm

See Figure 08-038

2шт.

23

168025A1

HYDRAULIC HOSE,9.50 mm ID x 1950.00 mm

See Figure 08-038

2шт.

26

152747A1

ADAPTER

Incl. 27

2шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

28

162826A1

ADAPTER

Bulkhead

2шт.

64

KNJ2995

BRACKET

Replaces KNJ2888

1шт.

65

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

66

KNJ2941

COVER

Replaces KNJ2746

1шт.

67

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

69

168411A1

HOSE,650.00 mm

See Figure 08-044

3шт.

70

KTJ1639

HOSE

See Figure 08-044

1шт.

76

KHJ17120

VALVE SECTION

; Replaces KHJ1973

1шт.

77

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

2шт.

78

153081A1

WASHER

2шт.

79

KHJ1974

TEE

Incl. 80

1шт.

80

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

81

KHJ1576

BRACKET

1шт.

82

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

85

163814A1

ELBOW

1шт.

88

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 89

1шт.

89

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

93

KHJ1608

HOSE

See Figure 08-049

1шт.

94

164233A1

HYDRAULIC HOSE

See Figure 08-049

1шт.

96

KAJ3099

HYDRAULIC HOSE

See Figure 08-049

1шт.

104

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 105

1шт.

105

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

115

KAJ3398

HYDRAULIC HOSE

See Figure 08-049

1шт.

118

KAJ2759

HYDRAULIC HOSE

See Figure 08-049

1шт.
