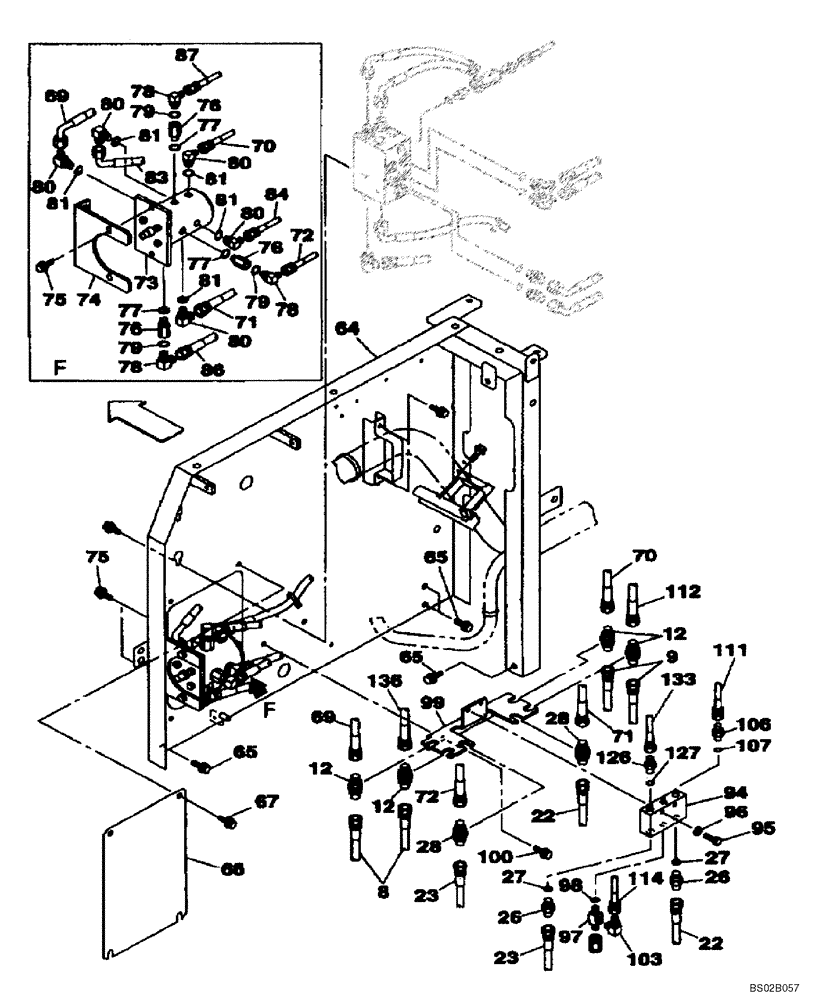

Запчасти Case CX130 (08-041) - HYDRAULICS - PILOT CONTROL LINES (08) - HYDRAULICS

Partition

1шт.

Models With Alternate Joystick Control Pattern

1шт.

8

KRJ4336

HYDRAULIC HOSE,9.50 mm ID x 2200.00 mm

See Figure 08-038

2шт.

9

168025A1

HYDRAULIC HOSE,9.50 mm ID x 1950.00 mm

See Figure 08-038

2шт.

12

162826A1

ADAPTER

Bulkhead

4шт.

22

KHJ1345

HYDRAULIC HOSE,9.52 mm ID x 2150.00 mm

See Figure 08-038

2шт.

23

168025A1

HYDRAULIC HOSE,9.50 mm ID x 1950.00 mm

See Figure 08-038

2шт.

26

152747A1

ADAPTER

Incl. 27

2шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

28

162826A1

ADAPTER

Bulkhead

2шт.

64

KNJ2995

BRACKET

1шт.

65

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

66

KNJ2941

COVER

1шт.

67

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

69

167873A1

HYDRAULIC HOSE,9.50 mm ID x 400.00 mm

1шт.

70

166162A1

HYDRAULIC HOSE,9.50 mm ID x 500.00 mm

1шт.

71

KHJ1384

HYDRAULIC HOSE,9.52 mm ID x 370.00 mm

1шт.

72

KHJ1388

HYDRAULIC HOSE,9.52 mm ID x 320.00 mm

1шт.

73

KHJ2184

VALVE

See Figure 08-101

1шт.

74

KNJ2946

BRACKET

1шт.

75

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

76

KHJ1584

UNION

Incl. 77

3шт.

77

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

78

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 79

3шт.

79

154475A1

O-RING

1шт.

80

153559A1

ELBOW

Incl. 81

5шт.

81

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

83

KHJ1062

HYDRAULIC HOSE,9.52 mm ID x 550.00 mm

See Figure 08-042

1шт.

84

KHJ1352

HYDRAULIC HOSE,9.52 mm ID x 600.00 mm

See Figure 08-042

1шт.

86

KAJ2467

HYDRAULIC HOSE

See Figure 08-042

1шт.

87

168411A1

HOSE,650.00 mm

See Figure 08-042

1шт.

94

KHJ17120

VALVE SECTION

; Replaces KHJ1973

1шт.

95

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

2шт.

96

153081A1

WASHER

2шт.

97

KHJ1974

TEE

Incl. 98

1шт.

98

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

99

KHJ1576

BRACKET

1шт.

100

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

103

163814A1

ELBOW

1шт.

106

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 107

1шт.

107

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

111

KHJ1608

HOSE

See Figure 08-047

1шт.

112

164233A1

HYDRAULIC HOSE

See Figure 08-047

1шт.

114

KAJ3099

HYDRAULIC HOSE

See Figure 08-047

1шт.

126

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 127

1шт.

127

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

133

KAJ3398

HYDRAULIC HOSE

See Figure 08-047

1шт.

136

KAJ2759

HYDRAULIC HOSE

See Figure 08-047

1шт.
