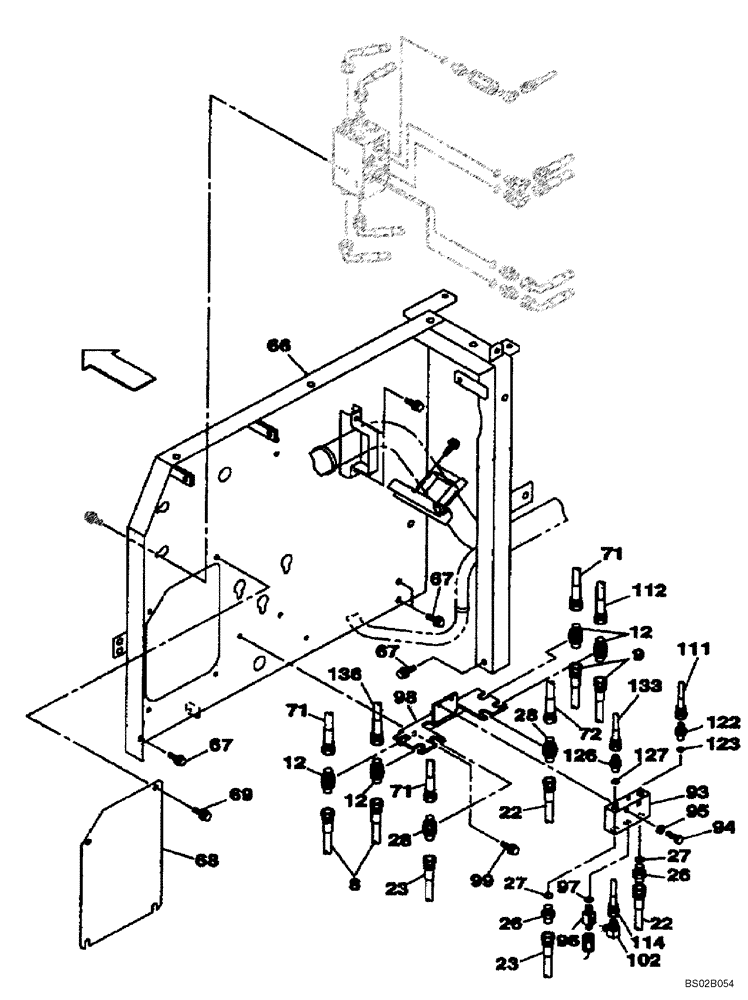

Запчасти Case CX130 (08-039) - HYDRAULICS - PILOT (08) - HYDRAULICS

Partition

1шт.

Standard Models

1шт.

8

KRJ4336

HYDRAULIC HOSE,9.50 mm ID x 2200.00 mm

See Figure 08-038

2шт.

9

168025A1

HYDRAULIC HOSE,9.50 mm ID x 1950.00 mm

See Figure 08-038

2шт.

12

162826A1

ADAPTER

Bulkhead

4шт.

22

KHJ1345

HYDRAULIC HOSE,9.52 mm ID x 2150.00 mm

See Figure 08-038

2шт.

23

168025A1

HYDRAULIC HOSE,9.50 mm ID x 1950.00 mm

See Figure 08-038

2шт.

26

152747A1

ADAPTER

Incl. 27

2шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

28

162826A1

ADAPTER

Bulkhead

2шт.

66

KNJ2995

BRACKET

Replaces KNJ2888

1шт.

67

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

68

KNJ2941

COVER

Replaces KNJ2746

1шт.

69

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

71

168411A1

HOSE,650.00 mm

See Figure 08-040

3шт.

72

KTJ1639

HOSE

See Figure 08-040

1шт.

93

KHJ17120

VALVE SECTION

; Replaces KHJ1973

1шт.

94

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

2шт.

95

153081A1

WASHER

2шт.

96

KHJ1974

TEE

Incl. 97

1шт.

97

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

98

KHJ1576

BRACKET

1шт.

99

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

102

163814A1

ELBOW

1шт.

111

KHJ1608

HOSE

See Figure 08-047

1шт.

112

164233A1

HYDRAULIC HOSE

See Figure 08-047

1шт.

114

KAJ3099

HYDRAULIC HOSE

See Figure 08-047

1шт.

122

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 123

1шт.

123

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

126

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 127

1шт.

127

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

133

KAJ3398

HYDRAULIC HOSE

See Figure 08-047

1шт.

136

KAJ2759

HYDRAULIC HOSE

See Figure 08-047

1шт.
