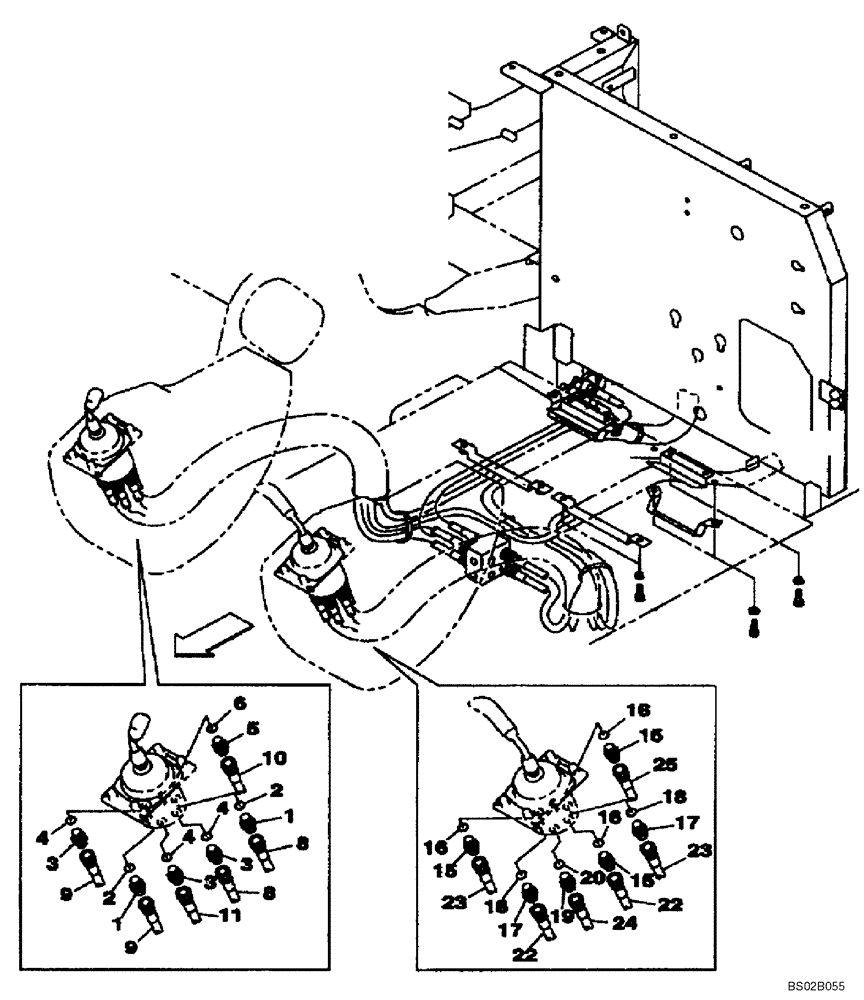

Запчасти Case CX130 (08-038) - HYDRAULICS - PILOT (08) - HYDRAULICS

Control Lines

1шт.

All Models

1шт.

1

KHJ1402

ADAPTER

Incl. 2

2шт.

2

154475A1

O-RING

1шт.

3

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 4

3шт.

4

154475A1

O-RING

1шт.

5

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

Incl. 6

1шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

8

KRJ4336

HYDRAULIC HOSE,9.50 mm ID x 2200.00 mm

See Figures 08-039, 08-041, 08-043, 08-045

2шт.

9

168025A1

HYDRAULIC HOSE,9.50 mm ID x 1950.00 mm

See Figure 08-039, 08-041, 08-043, 08-045

2шт.

10

159214A1

HYDRAULIC HOSE

1200 mm (47-1/4 in), See Figure 08-037

1шт.

11

159213A1

HYDRAULIC HOSE

1150 mm (45-3/8 in), See Figure 08-037

1шт.

15

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 16

3шт.

16

154475A1

O-RING

1шт.

17

KHJ1402

ADAPTER

Incl. 18

2шт.

18

154475A1

O-RING

1шт.

19

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

Incl. 20

1шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

22

KHJ1345

HYDRAULIC HOSE,9.52 mm ID x 2150.00 mm

2шт.

23

168025A1

HYDRAULIC HOSE,9.50 mm ID x 1950.00 mm

2шт.

24

159214A1

HYDRAULIC HOSE

1200 mm (47-1/4 in), See Figure 08-037

1шт.

25

159213A1

HYDRAULIC HOSE

1150 mm (45-3/8 in), See Figure 08-037

1шт.
