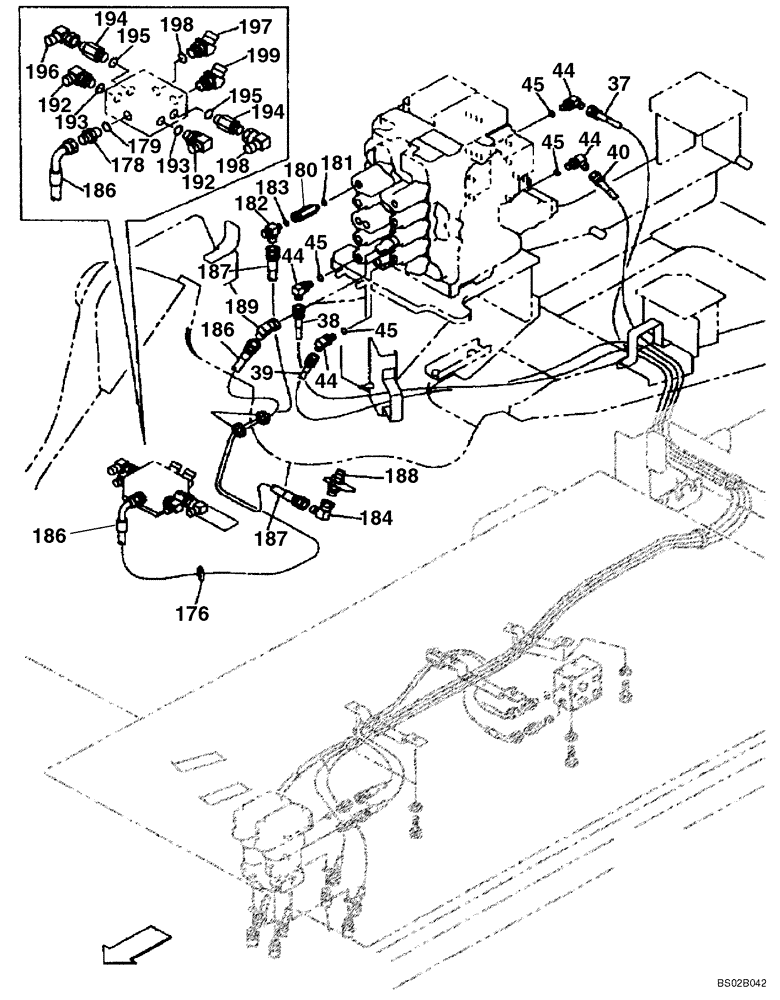

Запчасти Case CX130 (08-036) - HYDRAULICS - PILOT CONTROL LINES (08) - HYDRAULICS

Travel

1шт.

Models With Load Hold

1шт.

Models With Load Hold And Alternate Joystick Control Pattern

1шт.

37

157996A1

HOSE,6.3mm ID x 2750mm L

2750 mm (108-3/8 in), See Figure 08-35

1шт.

38

151904A1

HOSE,6.3mm ID x 3100mm L

See Figure 08-35

1шт.

39

159005A1

HOSE

3250 mm (128 in), See Figure 08-35

1шт.

40

KAJ3508

HYDRAULIC HOSE

See Figure 08-73

1шт.

44

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 45

4шт.

45

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

176

150071A1

MOUNTING CLIP

3шт.

178

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 179

1шт.

179

154475A1

O-RING

1шт.

180

162525A1

STUD

Incl. 181

1шт.

181

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

182

162827A1

TEE

Incl. 183

1шт.

183

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

184

153526A1

ELBOW

1шт.

186

KHJ1894

HYDRAULIC HOSE

1шт.

187

165782A1

HYDRAULIC HOSE,9.50 mm ID x 1400.00 mm

1шт.

188

162826A1

ADAPTER

1шт.

189

153526A1

ELBOW

1шт.

192

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 193

2шт.

193

154475A1

O-RING

1шт.

194

159226A1

ADAPTER

Incl. 195

2шт.

195

154475A1

O-RING

1шт.

196

153526A1

ELBOW

1шт.

197

157584A1

ELBOW

Incl. 198

1шт.

198

154475A1

O-RING

1шт.

199

163004A1

ELBOW

1шт.
