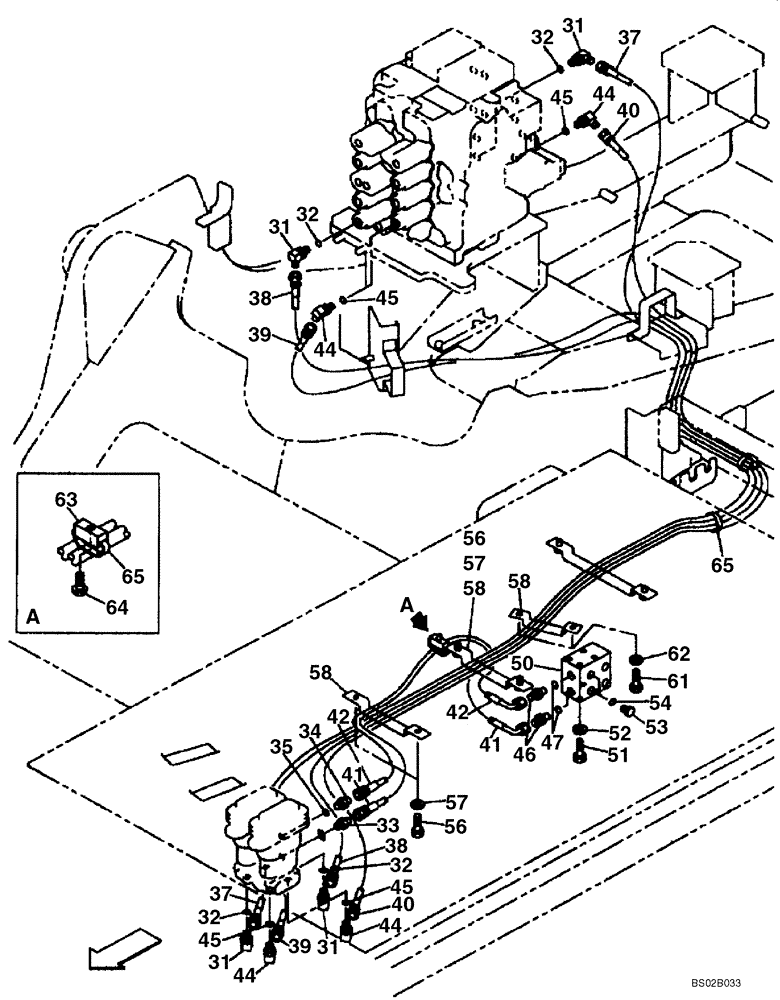

Запчасти Case CX130 (08-034) - HYDRAULICS - PILOT (08) - HYDRAULICS

Travel

1шт.

Standard Machines

1шт.

Models With Alternate Joystick Control Pattern

1шт.

31

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 32

4шт.

32

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

33

161841A1

HYD CONNECTOR

Incl. 33A

1шт.

33a

154467A1

O-RING,10.8mm ID x 2.4mm Width

Not Illustrated

1шт.

34

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 35

1шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

37

157996A1

HOSE,6.3mm ID x 2750mm L

2750 mm (108-3/8 in)

1шт.

38

151904A1

HOSE,6.3mm ID x 3100mm L

1шт.

39

159005A1

HOSE

3250 mm (128 in)

1шт.

40

KAJ3508

HYDRAULIC HOSE

1шт.

41

KAJ3524

HYDRAULIC HOSE

1шт.

42

159019A1

HOSE ASSY.

900 mm (35-1/2 in)

1шт.

44

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 45

4шт.

45

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

46

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 47

2шт.

47

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

50

KRJ5903

MANIFOLD

See Figure 08-37

1шт.

51

827-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

4шт.

52

153081A1

WASHER

4шт.

53

159002A1

PLUG

Incl. 54

2шт.

54

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

56

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

4шт.

57

153081A1

WASHER

4шт.

58

KHJ1951

CLAMP

Replaces KHJ1394

3шт.

61

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

4шт.

62

153081A1

WASHER

2шт.

63

150860A1

COLLAR

1шт.

64

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

65

150071A1

MOUNTING CLIP

1шт.
