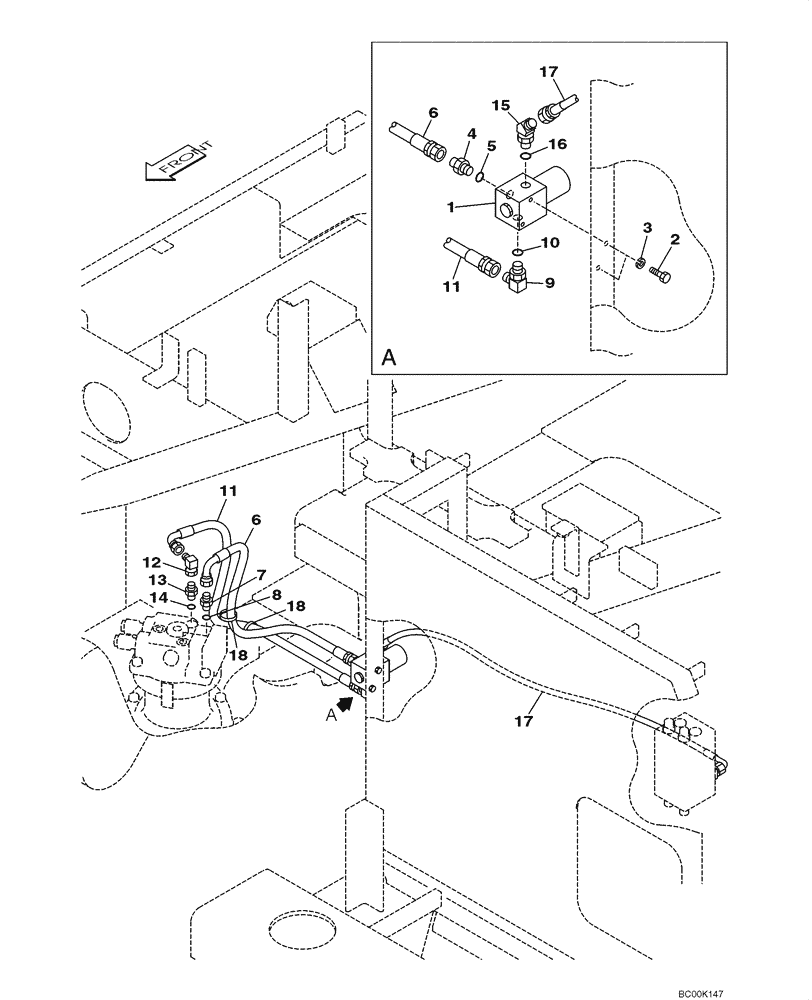

Запчасти Case CX130 (08-033) - HYDRAULICS - FREE SWING (08) - HYDRAULICS

1

159205A1

VALVE

See Figure 08-112

1шт.

2

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

3

892-11006

LOCK WASHER,M6

2шт.

4

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 5

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

6

KNJ2898

HYDRAULIC HOSE,6.30 mm ID x 450.00 mm

1шт.

7

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 8

1шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

9

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

11

KNJ2898

HYDRAULIC HOSE,6.30 mm ID x 450.00 mm

1шт.

12

163814A1

ELBOW

1шт.

13

159848A1

ORIFICE

With Orifice, Incl. 14

1шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

15

150933A1

ELBOW

Incl. 16

1шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

17

159019A1

HOSE ASSY.

900 mm (35-1/2 in)

1шт.

18

150498A1

MOUNTING CLIP

300 mm (11-3/4 in)

2шт.
