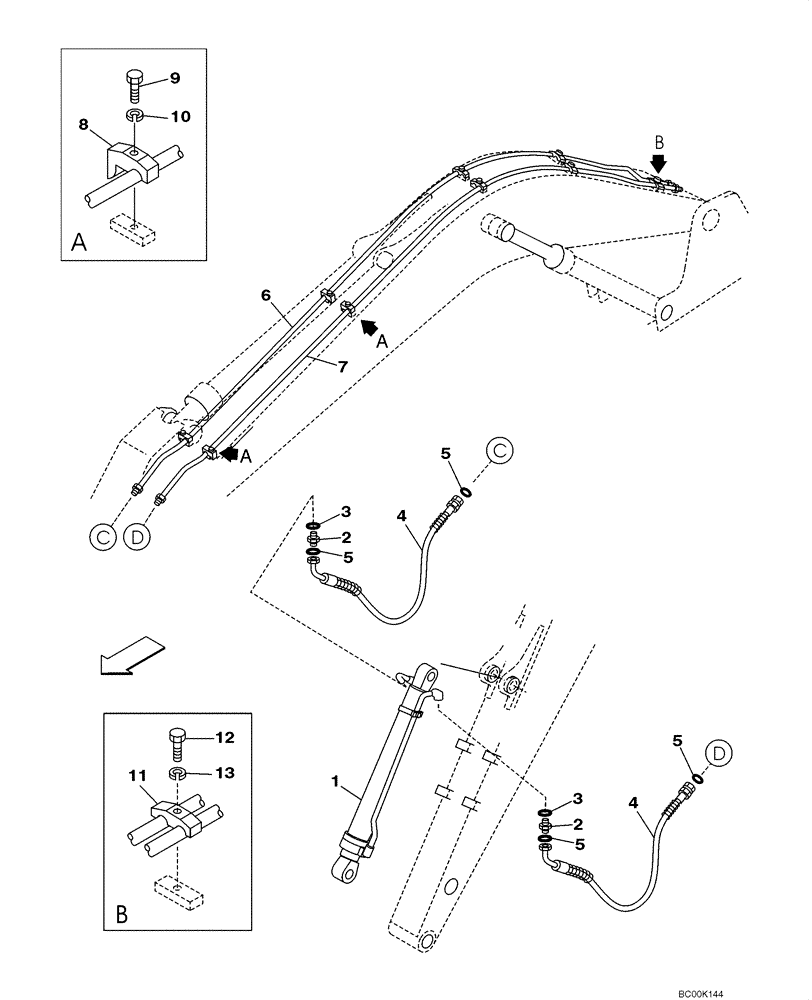

Запчасти Case CX130 (08-032) - HYDRAULICS - BUCKET (08) - HYDRAULICS

Arm 3,0 Meter (9 Foot 10 Inch)

1шт.

1

KNV1618

BUCKET CYLINDER

See Figure 08-108, For Mounting, See Figure 09-45

1шт.

2

KHJ1348

ADAPTER

Incl. 3

2шт.

3

154503A1

O-RING

1шт.

4

KNV1296

HYDRAULIC HOSE,19.00 mm ID x 1850.00 mm

2шт.

5

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

6

KNV1237

TUBE ASSY.

P.I.N. DAC0713099 - DAC0713288

1шт.

6

KNV1694

HYD TUBE,20.8 mm ID x 27.2 mm OD

P.I.N. DAC0713289 And After

1шт.

7

KNV1238

TUBE ASSY.,27.2 mm OD x 3614.3, 2837.3 mm L

P.I.N. DAC0713099 - DAC0713288

1шт.

7

KNV1695

HYD TUBE,20.8 mm ID x 27.2 mm OD

P.I.N. DAC0713289 And After

1шт.

8

151486A1

CLAMP BRACKET

4шт.

9

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

4шт.

10

892-11012

LOCK WASHER,M12

4шт.

11

159742A1

COLLAR

1шт.

12

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

1шт.

13

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

1шт.
