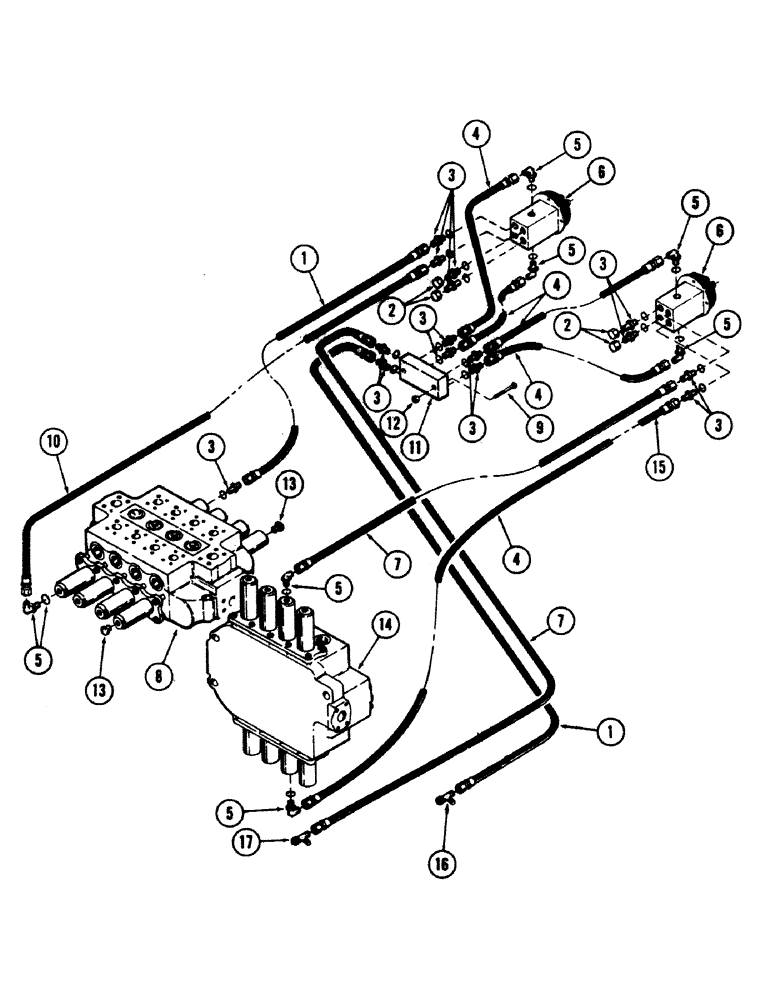

Запчасти Case 50 (8-208) - HAND CONTROL VALVE TUBING (08) - HYDRAULICS

1

S227397

HOSE ASSY.

HOSE, high pressure - 3/8" (9.5 MM) ID x 70" (1778 MM) long - (With 9/16" - 18 female pressed on couplings)

2шт.

2

218-754

CAP,37 Degree, 9/16"-18

- (3/8" tube) - 9-16" - 18 male x 9/16" - 18 male - 37 degree flared

4шт.

3

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - (3/8" tube) - 9/16" - 18 male x 9/16" - 18 male - 37 degree flared

12шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

12шт.

4

S227395

HOSE

high pressure - 3/8" (9.5 MM) ID x 21" (533.4 MM) long (With 9/16" - 18 female pressed on couplings)

5шт.

5

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree adjustable - (3/8" tube) - 9/16" - 18 male x 9/16" - 18 male - 37 degree flared

7шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

7шт.

6

REF

INSTRUCTION

VALVE, control - (For breakdown, see Figure 8-180)

2шт.

7

S232016

HOSE, high pressure - 3/8" (9.5 MM) ID x 100" (2540 MM) long (With 9/16" - 18 female pressed on couplings)

2шт.

8

REF

INSTRUCTION

VALVE, 4-spool main control - (Outside) - (For breakdown, see Figure 8-170)

1шт.

9

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

10

S232015

HOSE, high pressure - 3/8" (9.5 MM) ID x 80" (2032 MM) long (With 9/16" - 18 female pressed on couplings)

1шт.

11

S236862

BLOCK

manifold

1шт.

12

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT, self locking - 5/16" NC

2шт.

13

218-774

PLUG,9/16"-18, 37 Degree

- (3/8" tube) - 9/16" - 18 male - 37 degree flared

2шт.

14

REF

INSTRUCTION

VALVE, 4-spool main control - (Inside) - (For breakdown, see Figure 8-168)

1шт.

15

S227399

HOSE, high pressure - 3/8" (9.5 MM) ID x 125" (3175 MM) long (With 9/16" - 18 female pressed on couplings)

1шт.

16

218-573

TEE,9/16"-18, 37 Degree x 1/4"-18, NPTF Fem Br

- (3/8" tube) - 9/16" - 18 male x 9/16" - 18 male x 1/4" NPT female - 37 degree flared

1шт.

17

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- (3/8" tube) - 9/16" - 18 male x 9/16" - 18 male x 9/16" - 18 female - 37 degree flared

1шт.
