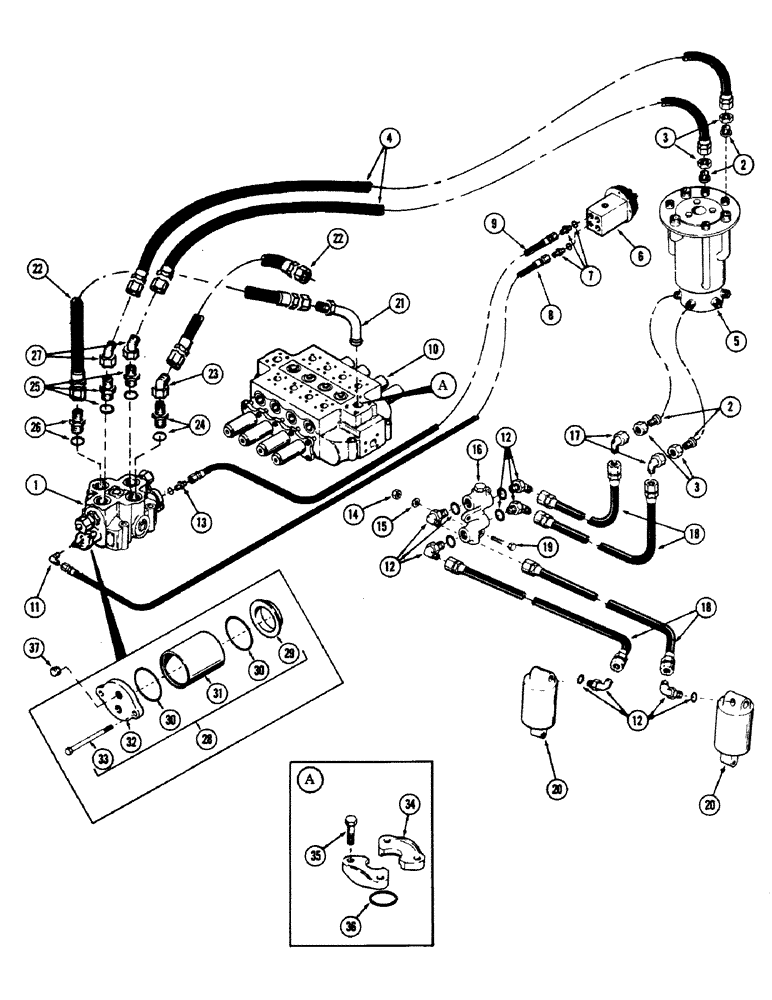

Запчасти Case 50 (8-202) - OPTIONAL LEVELER TUBING, (USED ON UNITS WITH OPTIONAL AUXILIARY) (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE, 1-spool control - (For breakdown, see Figure 8-174)

1шт.

2

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

ADAPTER, reducing - (3/4" x 1/2" tube reduction) - 3/4" - 16 male - 37 degree flared

4шт.

3

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT, sleeve - (3/4" tube) - 1-1/16" - 12 female - 37 degree flared

4шт.

4

S11231

HOSE ASSY.

HOSE, high pressure - 3/8" ID x 68" long - (With 3/4" - 16 female pressed on couplings)

2шт.

5

REF

INSTRUCTION

SWIVEL, 7-port hydraulic - (For breakdown, see Figure 8-226)

1шт.

6

REF

INSTRUCTION

VALVE, control - (For breakdown, see Figure 8-180)

1шт.

7

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - (3/8" tube) - 9/16" - 18 male x 9/16" - 18 male - 37 degree flared

2шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

8

S232016

HOSE, high pressure - 3/8" ID x 100" long - (With 9/16" - 18 female pressed on couplings)

1шт.

9

S232015

HOSE, high pressure - 3/8" ID x 80" long - (With 9/16" - 18 female pressed on couplings)

1шт.

10

REF

INSTRUCTION

VALVE, 4-spool main control - (For breakdown, see Figure 8-170)

1шт.

11

218-492

90 ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

90 degree - (3/8" tube) - 9/16" - 18 male x 1/8" NPT male - 37 degree flared

1шт.

12

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degree adjustable - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male - 37 degree flared

6шт.

13

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR, HYD., , Adapter, (3/8" tube) 9/16"-18, 37º x 1/8"-27, NPTF

2шт.

14

86625061

NUT,1/4"-20, GB

NUT - self locking, 1/4" NC

2шт.

15

195-102

WASHER,1/4"

flat - 1/4"

2шт.

16

REF

INSTRUCTION

VALVE, leveler check - (For breakdown, see Figure 8-186)

1шт.

17

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

90 degree swivel - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 female - 37 degree flared

2шт.

18

S11226

HOSE

high pressure - 3/8" ID x 20" long - (With 3/4" - 16 female pressed on couplings)

4шт.

19

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5

2шт.

20

REF

INSTRUCTION

CYLINDER, leveler - (For breakdown, see Figure 8-220)

2шт.

21

S231594

TUBE ASSY.,1.25" OD x 6.2, 4.04" L

TUBE, hydraulic

1шт.

22

S401530

HOSE ASSY.

HOSE, high pressure - 1" ID x 20" long - (With 1-5/16" - 12 female pressed on couplings)

2шт.

23

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

45 degree swivel - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 female

1шт.

24

218-5034

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR, long - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degree flared

1шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O"RING

1шт.

25

218-5071

HYD CONNECTOR,3/4" - 16 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR

2шт.

26

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degree flared

1шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O"RING

1шт.

27

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 degree swivel - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 female - 37 degree flared

1шт.

28

S232345

KIT

spool end cap, Includes: Ref. 29 - 33

2шт.

29

S111267

WASHER

1шт.

30

S6394

O-RING

"O"RING

2шт.

31

S111268

SLEEVE

TUBE, cylinder

1шт.

32

S111269

HEAD

1шт.

33

61-652

CAPSCREW,3/8" - 16 x 3 1/4"

BOLT - 3/8" NC x 3-1/4" Gr 8

2шт.

34

A12301

CLAMP,Half

CLAMP, tube

2шт.

35

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

4шт.

36

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

"O"RING

1шт.

37

221-661

PLUG,Hex Hd, 1/8"-27

pipe - 1/8" NPT male

2шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

6шт.
