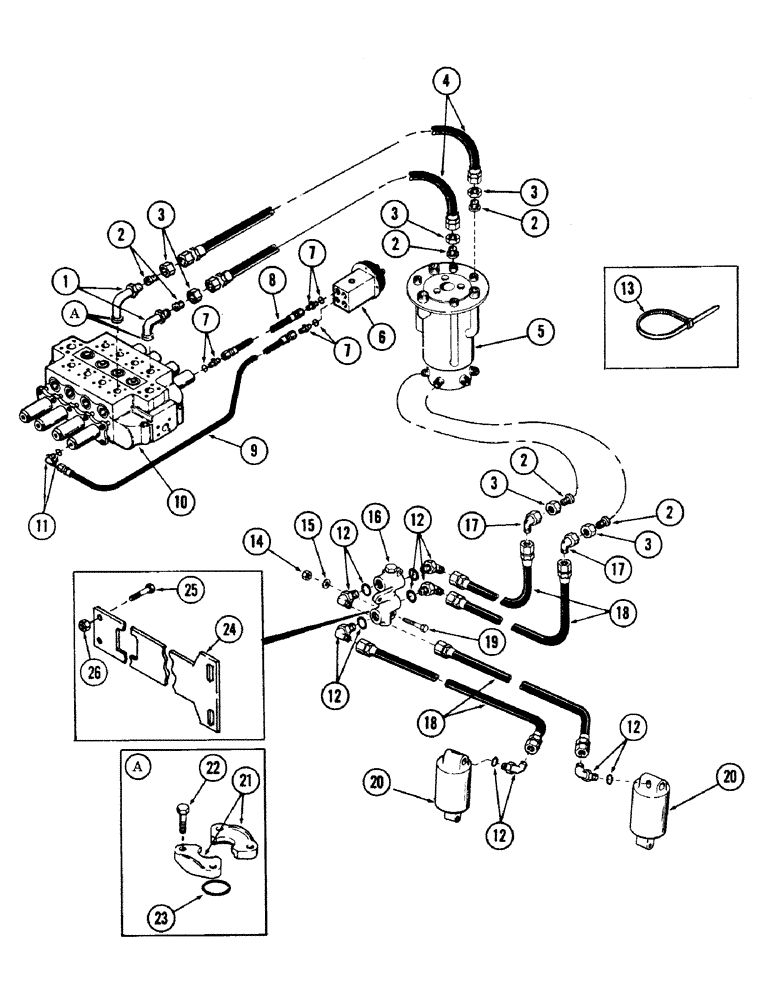

Запчасти Case 50 (8-200) - OPTIONAL LEVELER TUBING, (USED ON UNITS W/O OPTIONAL AUXILIARY (08) - HYDRAULICS

1

S232114

ADAPTER

TUBE - hydraulic

2шт.

2

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

ADAPTER - reducing (3/4" x 1/2" tube reduction) - 3/4" - 16

6шт.

3

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT - sleeve, 3/4" tube x 1-1/16" - 12

6шт.

4

S11231

HOSE ASSY.

HOSE - high pressure, 3/8" (9.5 MM) ID x 68" (1727.2 MM) long

2шт.

5

REF

INSTRUCTION

SWIVEL - 7-port hydraulic (See Figure 8-226)

1шт.

6

REF

INSTRUCTION

VALVE - control (See Figure 8-180)

1шт.

7

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - (3/8" tube) 9/16" - 18 x 9/16" - 18

3шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

8

S227397

HOSE ASSY.

HOSE - high pressure, 3/8" (9.5 MM) ID x 70" (1778 MM) long

1шт.

9

S232015

HOSE - high pressure, 3/8" (9.5 MM) ID x 80" (2023 MM) long

1шт.

10

REF

INSTRUCTION

VALVE - 4-spool main control (See Figure 8-170)

1шт.

11

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Adjustable, 3/8" tube 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

1шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

12

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree adjustable, 1/2" tube x 3/4" - 16

6шт.

13

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE - nylon (With hoses inside mast)

1шт.

14

86625061

NUT,1/4"-20, GB

NUT - self locking, 1/4" NC

2шт.

15

195-102

WASHER,1/4"

- flat, 1/4"

2шт.

16

REF

INSTRUCTION

VALVE - leveler check (See Figure 8-186)

1шт.

17

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree swivel (1/2" tube) 3/4" - 16 x 3/4" - 16

2шт.

18

S11226

HOSE

- high pressure, 3/8" (9.5 MM) ID x 20" (508 MM) long

4шт.

19

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- 1/4" x 2" NC hex (Grade 5)

2шт.

20

REF

INSTRUCTION

CYLINDER - leveler (See Figure 8-220)

2шт.

21

A12306

FLANGE

CLAMP - half flange

4шт.

22

REF

INSTRUCTION

BOLT - 3/8" x 1-1/4" NC hex (Grade 5) (See ref. 29 on Figure 8-170)

8шт.

23

REF

INSTRUCTION

O-RING - 1.296" ID x 1.574" OD (See ref. 30 on Figure 8-170)

2шт.

24

S114241

BRACKET

- check valve mounting

1шт.

25

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

26

131-52

NUT,3/8"-16, GC

NUT - self locking, 3/8" NC

2шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
