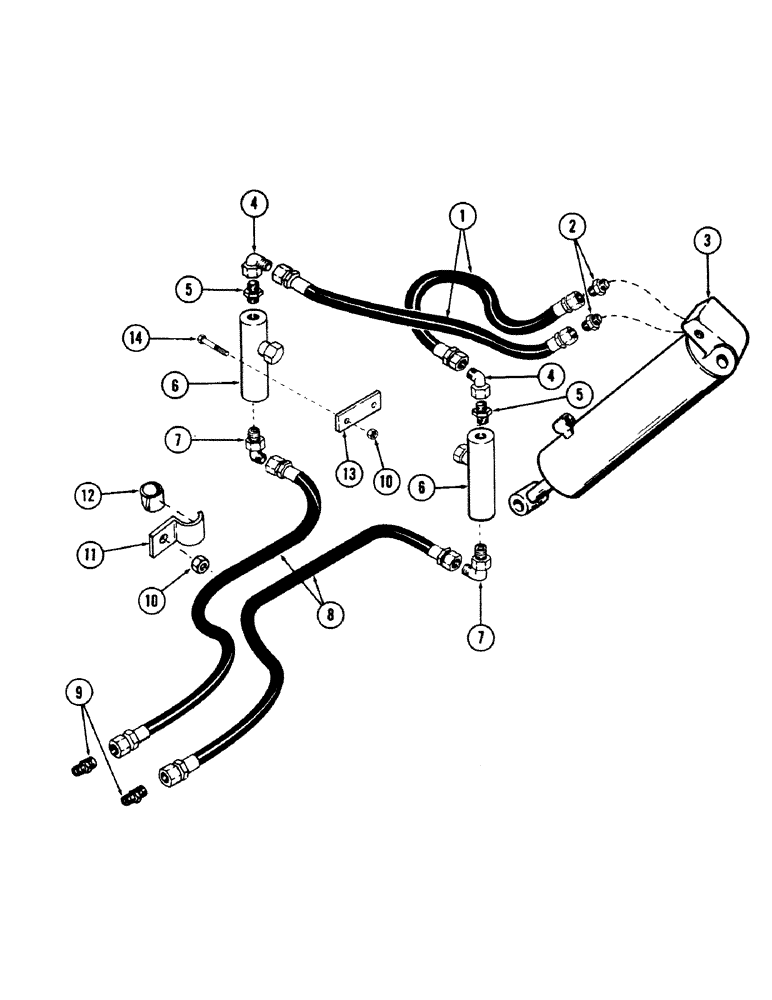

Запчасти Case 50 (8-198) - WRIST-O-TWIST TUBING (08) - HYDRAULICS

1

S11226

HOSE

- flow control valve to wrist-o-twist cylinder

2шт.

2

218-5071

HYD CONNECTOR,3/4" - 16 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - 1/2" tube x 3/4" - 16

2шт.

3

REF

INSTRUCTION

CYLINDER - wrist-o-twist (See Figure 8-222)

1шт.

4

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree swivel, 1/2" tube x 3/4" - 16

2шт.

5

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - 1/2" tube x 1/2" PT

2шт.

6

REF

INSTRUCTION

VALVE - flow control (See Figure 8-182)

2шт.

7

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree - 1/2" tube x 1/2" PT

2шт.

8

S11229

HOSE ASSY.

HOSE - flow control valve

2шт.

9

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

- 1" tube x 3/4" - 12

2шт.

10

131-463

NUT,3/8"-16

NUT - lock, 3/8" NC

6шт.

11

L32065

CLAMP

- hose

2шт.

12

S75792

RING

- compression

2шт.

13

S81912

SPACER

4шт.

14

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

4шт.
