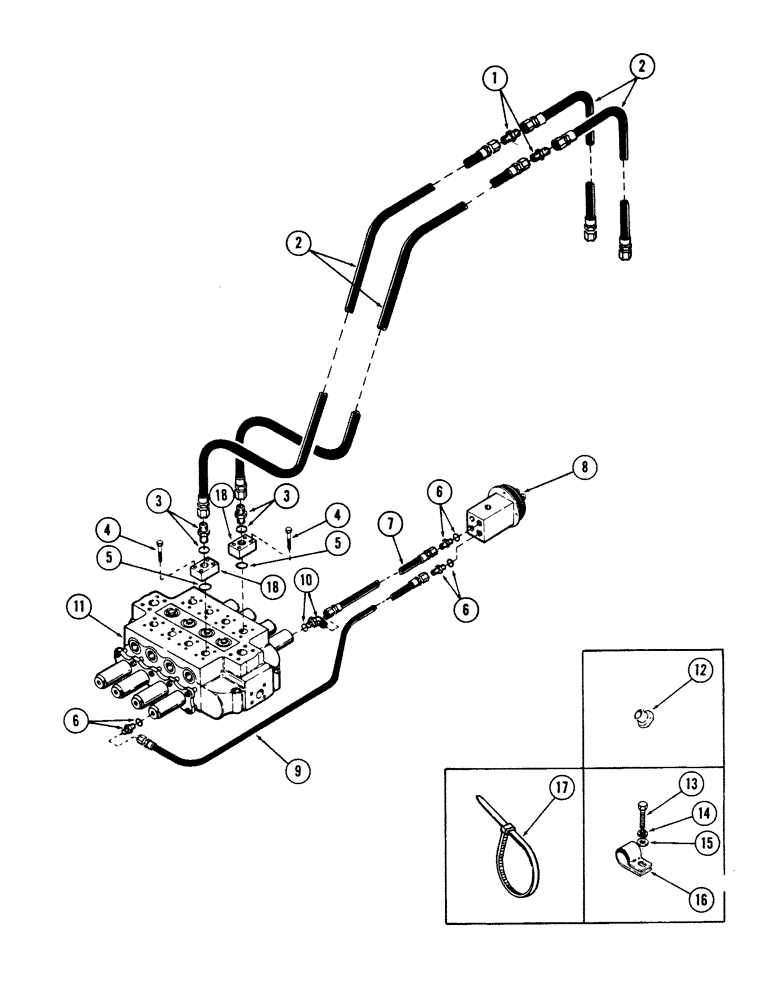

Запчасти Case 50 (8-196) - AUXILIARY TUBING (08) - HYDRAULICS

1

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

- 1/2" tube x 3/4" - 16

2шт.

2

S75758

HOSE

- high pressure, 3/8" (9.5 MM) ID x 246" (6248.4 MM) long

4шт.

3

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., 5/8" tube x 3/4"-16 x 7/8"-14

2шт.

4

REF

INSTRUCTION

BOLT - 3/8" x 1-1/4" NC hex (Grade 5) (See Ref. 29 on Figure 8-170)

8шт.

5

REF

INSTRUCTION

O-RING - (See ref. 30 on Figure 8-170)

8шт.

6

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - 3/8" tube x 9/16" - 18

3шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

3шт.

7

S227397

HOSE ASSY.

HOSE - high pressure, 3/8" (9.5 MM) ID x 70" (1778 MM) long

1шт.

8

REF

INSTRUCTION

VALVE - control (See Figure 8-180)

1шт.

9

S232016

HOSE - high pressure, 3/8" (9.5 MM) ID x 100" (5240 MM) long

1шт.

10

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 3/8" tube x 9/16" - 18

1шт.

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

11

REF

INSTRUCTION

VALVE - 4-spool main control (See Figure 8-170)

1шт.

12

218-775

PLUG,3/4"-16, 37 Degree

- 1/2" tube x 3/4"-16

2шт.

13

26-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 8

- 5/16" x 3-1/4" NC hex (Grade 5) (Replaces bolt in boom clamp)

10шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

15

195-102

WASHER,1/4"

- flat, 5/16"

16шт.

16

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- hose

16шт.

17

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE - cable (Use with hoses)

1шт.

18

S237982

COVER

BLOCK - adapter

2шт.

19

S235910

BLOCK

- tapped (Welds to dipper) (Not shown)

3шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.
