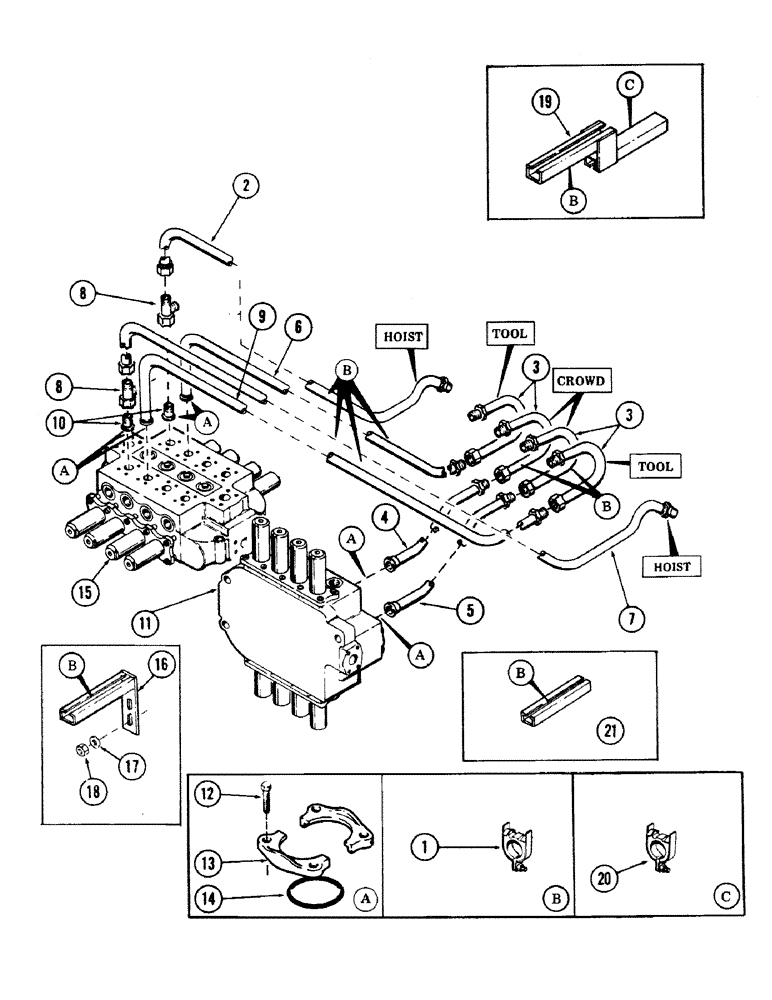

Запчасти Case 50 (8-190) - CROWD, HOIST AND TOOL TUBING FROM VALVES TO BOOM (08) - HYDRAULICS

1

S93266

CLAMP

- tube

1шт.

2

S612506

TUBE ASSY.

TUBE - hydraulic

1шт.

3

S234334

TUBE ASSY.

TUBE - hydraulic

4шт.

4

S512858

TUBE ASSY.,1.25" OD x 16.71, 3.92" L

TUBE - hydraulic

1шт.

5

S512859

TUBE ASSY.,1.25" OD x 16.71, 10.01" L

TUBE - hydraulic

1шт.

6

S235356

TUBE ASSY.,1.25" OD

TUBE - hydraulic

1шт.

7

S612507

TUBE - hydraulic

1шт.

8

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

- (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degree flared

2шт.

9

S235355

TUBE ASSY.,1.25" OD

TUBE - hydraulic

1шт.

10

S232092

TUBE

- hydraulic

2шт.

11

REF

INSTRUCTION

VALVE, 4-spool main control (See Figure 8-168)

1шт.

12

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

24шт.

13

A12306

FLANGE

CLAMP - half flange

12шт.

14

S6583

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- 1.296" ID x 1.562" OD

6шт.

15

REF

INSTRUCTION

VALVE - 4-spool main control (See Figure 8-170)

1шт.

16

S238188

BRACKET

- clamp mounting (For mounting hoist tubes)

1шт.

17

S95569

WASHER

- flat, 1/2"

1шт.

18

131-70

NUT,1/2"-13, GB

NUT - self locking, 1/2" NC

1шт.

19

S238404

BRACKET - clamp mounting (For mounting of hoist and tool lines to return lines)

1шт.

20

S98324

CLAMP

- tube

1шт.

21

S98782

CHANNEL

- (Used with crowd and tool lines)

1шт.
