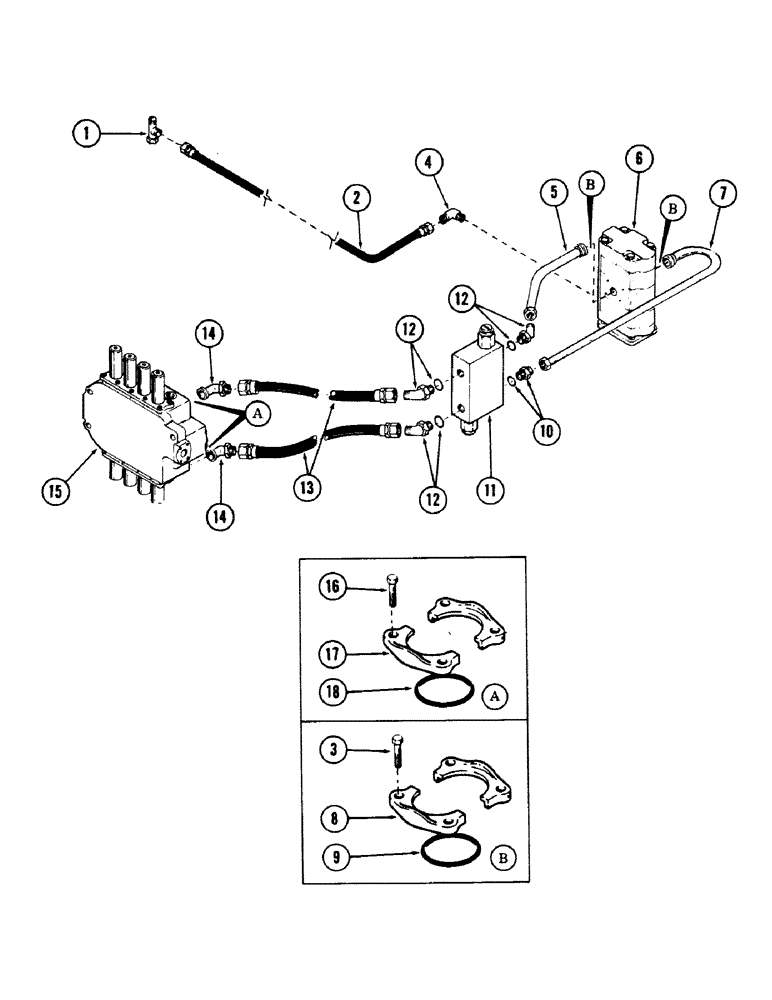

Запчасти Case 50 (8-188) - SWING MOTOR TUBING (08) - HYDRAULICS

1

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- (3/8" tube) - 9/16" - 18 male x 9/16" - 18 female x 9/16" - 18 male - 37 degree flared

1шт.

2

S227395

HOSE

high pressure - 3/8" ID (9.5 MM) x 21" (533.4 MM) long (With 9/16" - 18 female pressed on couplings)

1шт.

3

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

8шт.

4

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

90 degree - (3/8" tube) - 9/16" - 18 male x 1-4" NPT male - 37 degree flared

1шт.

5

S237290

TUBE,1.25" OD

hydraulic

1шт.

6

REF

INSTRUCTION

MOTOR, swing - (For breakdown, see Figure 8-224)

1шт.

7

S237289

TUBE,1.25" OD x 19.25" L

hydraulic

1шт.

8

A12301

CLAMP,Half

CLAMP, half flange

4шт.

9

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

- 1.484" ID x 1.750" OD

2шт.

10

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degree flared

1шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

11

REF

INSTRUCTION

VALVE, swing crossover relief - (For breakdown, see Figure 8-178)

1шт.

12

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

45 degree adjustable - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degree flared

3шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1.171" ID x 1.403" OD

3шт.

13

S401530

HOSE ASSY.

HOSE, high pressure - 1" ID (25.4 MM) x 20" (508 MM) long - (With 1-5/16" - 12 female pressed on couplings)

2шт.

14

S232093

FITTING

TUBE, hydraulic

2шт.

15

REF

INSTRUCTION

VALVE, 4-spool main control - (For breakdown, see Figure 8-168)

2шт.

16

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

17

A12306

FLANGE

CLAMP, half flange

4шт.

18

S6583

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- 1.296" ID x 1.562" OD

2шт.
