(8-186) - OPTIONAL LEVELER CHECK VALVE

Запчасти Case 50 (8-186) - OPTIONAL LEVELER CHECK VALVE (08) - HYDRAULICS

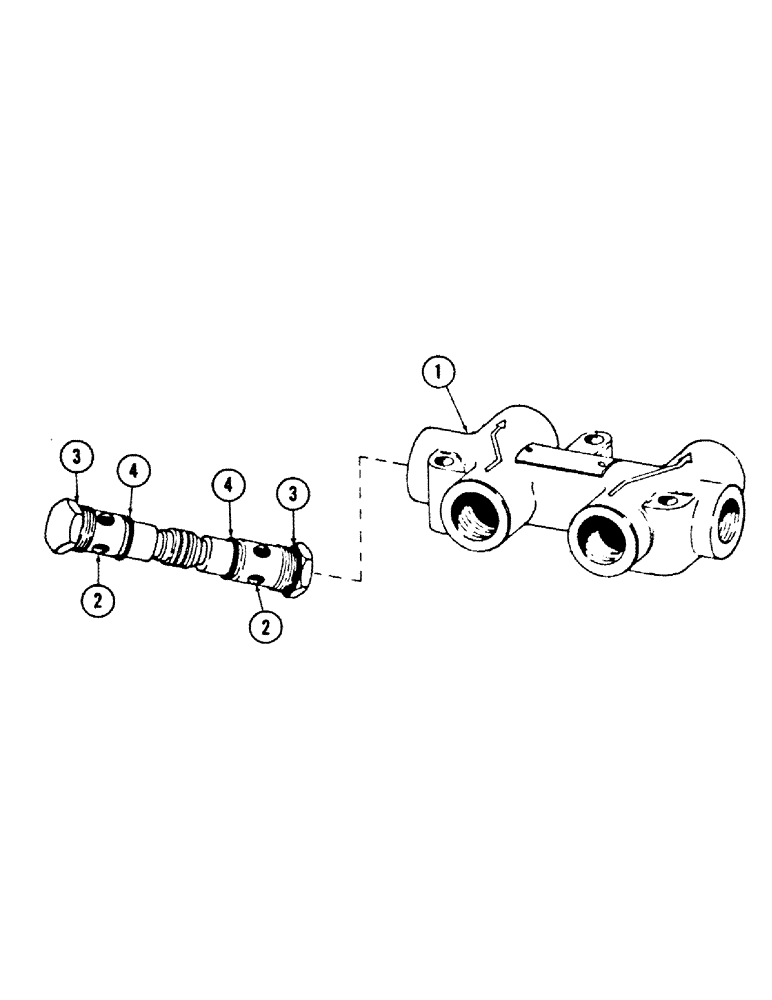

Схема запчастей Case 50 - (8-186) - OPTIONAL LEVELER CHECK VALVE (08) - HYDRAULICS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

S33333

CHECK VALVE

VALVE - leveler check, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

S61961

CHECK VALVE

CARTRIDGE - double acting, Includes: Ref. 3 and 4

1шт.

4

D48820

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- sleeve and poppet

2шт.

5

S96675

SPRING

- (Not shown)

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, plug

2шт.
