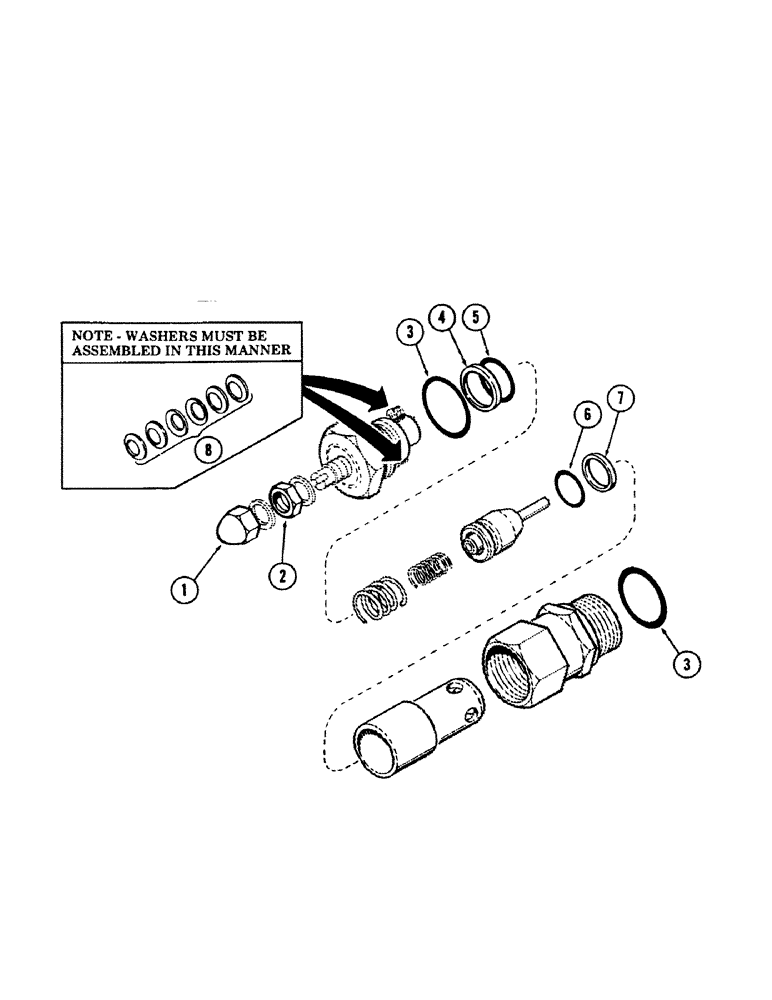

Запчасти Case 50 (8-176[1]) - PORT RELIEF CARTRIDGE ("R" SERIES) (08) - HYDRAULICS

S239212

VALVE, PRESSURE RELI

VALVE, "R" series circuit relief valve - set at 3400 PSI, Includes: Ref. 1 - 8

3шт.

1

S116073

CAP

NUT, acorn

1шт.

2

S116072

JAM NUT

jam

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

2шт.

Part of Seal Kit, P/N S117193

1шт.

4

S83071

BACK-UP RING

RING, back up

1шт.

Part of Seal Kit, P/N S117193

1шт.

5

S6574

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

1шт.

Part of Seal Kit, P/N S117193

1шт.

6

S6476

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

Part of Seal Kit, P/N S117193

1шт.

7

S84098

BACK-UP RING,1/2" ID x 11/16" OD

back up

1шт.

Part of Seal Kit, P/N S117193

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - spring

12шт.

9

S117193

SEAL KIT

seal - (Consists of Ref. 3 thru 7)

1шт.
