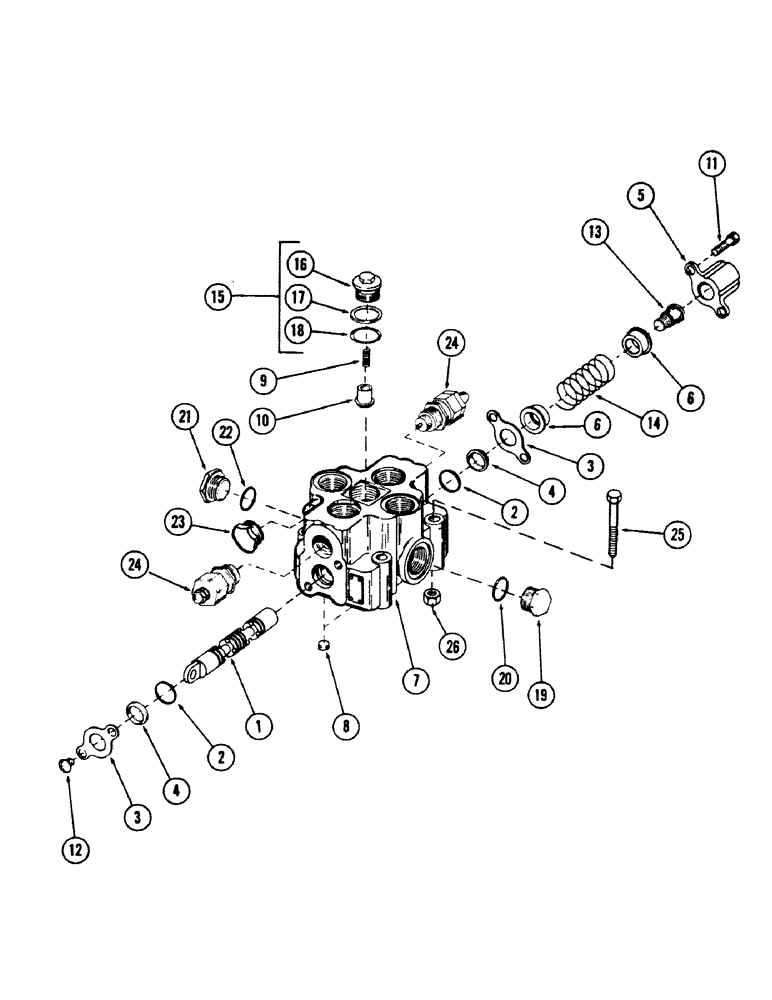

Запчасти Case 50 (8-174) - 1-SPOOL MAIN CONTROL VALVE (08) - HYDRAULICS

S514349

KIT

VALVE, 1 spool main control, Includes: Ref. 1 - 24

1шт.

1

NSS

NOT SOLD SEPARAT

PLUNGER

1шт.

2

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O"RING - .984" ID x 1.250" OD

2шт.

3

S13829

PLATE

seal

2шт.

4

S62092

WIPER

2шт.

5

S62278

CAP

plunger

1шт.

6

S62288

SEAT

spring

2шт.

7

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

8

S105060

PLUG

pipe

2шт.

9

S13715

SPRING

1шт.

10

S13716

VALVE POPPET

POPPET

1шт.

11

61-616

HEX SOC SCREW,3/8"-16 x 1"

BOLT, socket head

2шт.

12

166-25

12 PT SCREW,Flg, 5/16" - 18 x 7/8", Gr 8

SCREW, machine - 3/8" NC x 1/2"

2шт.

13

S62290

BOLT

- special

1шт.

14

S108192

SPRING

1шт.

15

S105062

PLUG

ASSEMBLY, Includes: Ref. 16 - 18

1шт.

16

S105094

PLUG

1шт.

17

S105095

RING

back-up

1шт.

18

S105093

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

"O"RING

1шт.

19

218-5161

PLUG,Hex Hd, 1 5/8"-12 ORB

- (1)1/4" tube) - 1-5/8" - 12 male, Includes: Ref. 20

1шт.

20

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

"O"RING - 1.475" ID x 1.711" OD

1шт.

21

S8985

PLUG

- (1" tube) - 1-5/16" - 12 male, Includes: Ref. 22

1шт.

22

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O"RING - 1.171" ID x 1.403" OD

1шт.

23

S81690

PLUG

- special

1шт.

24

REF

INSTRUCTION

VALVE, circuit relief - set at 2500 PSI - (For breakdown, see Figure 8-176)

2шт.

25

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

- 1/2" NC x 4-1/4" Gr 5

2шт.

113-426

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

26

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

3шт.
