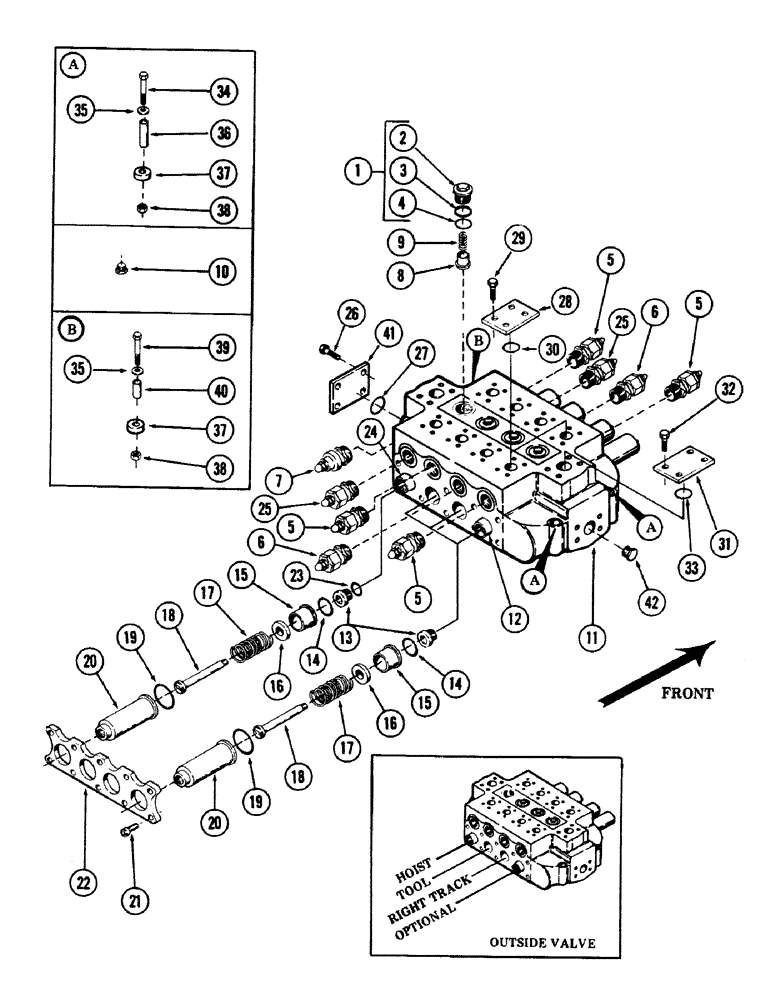

Запчасти Case 50 (8-170) - 4-SPOOL MAIN CONTROL VALVE (OUTSIDE) (08) - HYDRAULICS

S514302

VALVE

main control - (Outside) - (Used with units without optional leveler or auxiliary hydraulics), Includes: Ref. 1 - 25

1шт.

S514303

VALVE

main control - (Outside) - (Used on units with optional leveler and without auxiliary hydraulics), Includes: Ref. 1 - 25

1шт.

S514304

VALVE

main control - (Outside) - (Used on units with optional leveler and auxiliary hydraulics), Includes: Ref. 1 - 25

1шт.

1

S104993

PLUG

ASSEMBLY

4шт.

2

S105092

PLUG

1шт.

3

S105091

OIL SEAL

RING, back-up

1шт.

4

S90254

O-RING

"O"RING

1шт.

5

REF

INSTRUCTION

VALVE, circuit relief - set at 3400 PSI - (For breakdown, see Figure 8-176)

4шт.

6

REF

INSTRUCTION

VALVE, circuit relief - set at 2500 PSI - (For breakdown, see Figure 8-176)

2шт.

7

REF

INSTRUCTION

CARTRIDGE, main relief - set at 3300 PSI - (For breakdown, see Figure 8-164)

1шт.

8

S104992

VALVE POPPET

POPPET

4шт.

9

S13715

SPRING

4шт.

10

S105060

PLUG

pipe - (Mounts to underside of valve)

2шт.

11

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

12

NSS

NOT SOLD SEPARAT

PLUNGER

3шт.

13

S13808

VALVE POPPET

PLUG

8шт.

14

S109515

O-RING

"O"RING

8шт.

15

S109522

CAP

retainer

8шт.

16

S110107

SPACER

8шт.

17

S109516

SPRING

8шт.

18

S109518

RETAINER

spring

8шт.

19

S109521

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

"O"RING

8шт.

20

S109519

PLUNGER

CAP, plunger

8шт.

21

61-632

HEX SOC SCREW,3/8"-16 x 2"

BOLT - 3/8" NC x 2" Gr 8 - (Socket head)

20шт.

22

S109884

PLATE

2шт.

23

S90243

O-RING

"O"RING

2шт.

24

NSS

NOT SOLD SEPARAT

PLUNGER

1шт.

25

REF

INSTRUCTION

VALVE, "R" series circuit relief - set at 3400 PSI - (For breakdown, see Figure 8-176)

2шт.

26

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

4шт.

27

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

"O"RING - 1.484 ID x 1.750" OD

1шт.

28

S231603

COVER

"o"ring - (Used only with control valve S514303)

1шт.

29

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- 3/8" NC x 1-1/2" Gr 5 - (Used only with control valve S514303)

4шт.

30

S6583

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

"O"RING - 1.296" ID x 1.562" OD - (Used only with control valve S514303)

1шт.

31

S231589

COVER

"o"ring - (Used on control valve S514303 and S514304)

1шт.

32

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

Used with control valve S514303 and S514304 Hex, 7/16"-14 x 1 1/4", G5

4шт.

33

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

"O"RING - 1.484" ID x 1.750" OD - (Used with control valve S514303 and S514304)

1шт.

34

113-2428

BOLT,Hex, 1/2" - 13 x 5-1/4", Gr 5

2шт.

35

95-8

WASHER,1/2"

flat 1/2"

3шт.

36

S108315

SPACER

2шт.

37

S113313

SPACER

- (Between valve and turntable)

3шт.

38

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

3шт.

39

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- 1/2" NC x 4-1/4" Gr 5

1шт.

40

S108316

SPACER

1шт.

41

S236440

COVER

"o"ring

1шт.

42

221-846

PLUG,Hex Soc, 1"-11 1/2

- 1" NPT male hex

1шт.
