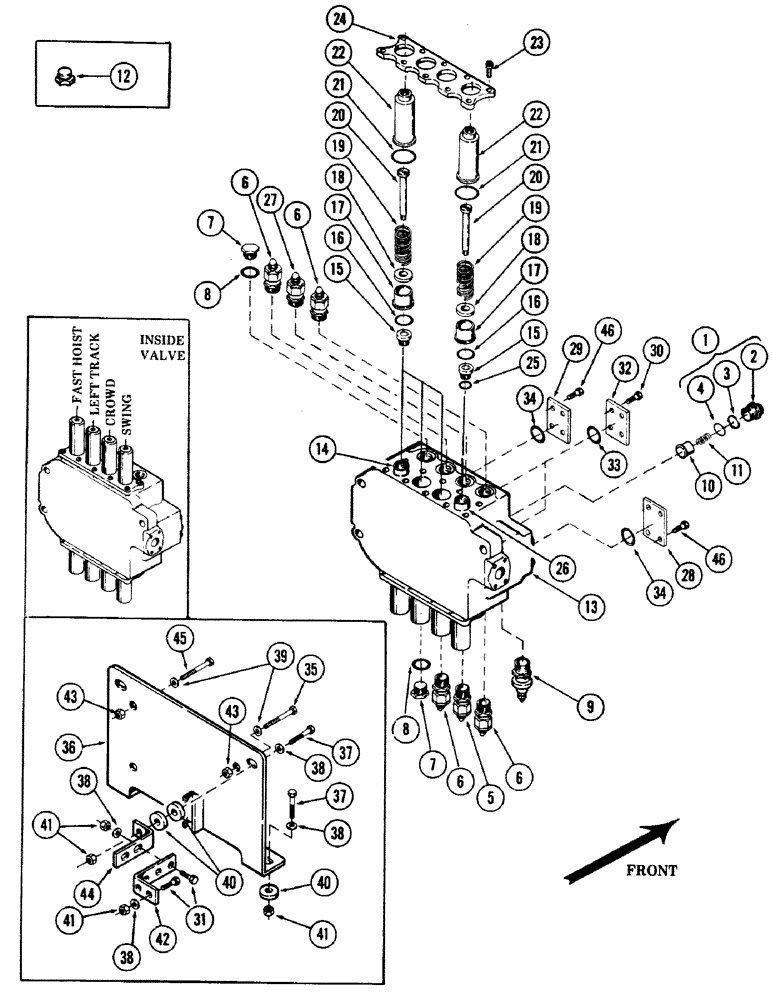

Запчасти Case 50 (8-168) - 4-SPOOL MAIN CONTROL VALVE (INSIDE) (08) - HYDRAULICS

S514301

VALVE

main control - (Inside), Includes: Ref. 1 - 46

1шт.

1

S104993

PLUG

ASSEMBLY, Includes: Ref. 2 - 5

4шт.

2

S105092

PLUG

1шт.

3

S105091

OIL SEAL

RING, back-up

1шт.

4

S90254

O-RING

"O"RING

1шт.

5

REF

INSTRUCTION

VALVE, circuit relief - set at 3400 PSI - (For breakdown, see Figure 8-176)

1шт.

6

REF

INSTRUCTION

VALVE, circuit relief - set at 2500 PSI - (For breakdown, see Figure 8-176)

4шт.

7

S81690

PLUG

- (1" tube) - 1-5/16" - 12 male - 37 degree flared - (Used only when unit is not equipped with optional fast hoist), Includes: Ref. 8

2шт.

8

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

"O"RING - 1.171" ID x 1.403" OD

2шт.

9

REF

INSTRUCTION

CARTRIDGE, main relief - set at 3300 PSI - (For breakdown, see Figure 8-164)

1шт.

10

S13808

VALVE POPPET

POPPET

4шт.

11

S13715

SPRING

4шт.

12

S105060

PLUG

pipe - (Mounts to underside of valve)

2шт.

13

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

14

NSS

NOT SOLD SEPARAT

PLUNGER

3шт.

15

S109517

PLUG

8шт.

16

S109515

O-RING

"O"RING

8шт.

17

S109522

CAP

retainer

8шт.

18

S110107

SPACER

8шт.

19

S109516

SPRING

8шт.

20

S109518

RETAINER

spring

8шт.

21

S109521

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

"O"RING

8шт.

22

S109519

PLUNGER

CAP, plunger

8шт.

23

61-632

HEX SOC SCREW,3/8"-16 x 2"

BOLT - 3/8" NC x 2" Gr 8 - (Socket head)

20шт.

24

S109884

PLATE

2шт.

25

S90243

O-RING

"O"RING

2шт.

26

NSS

NOT SOLD SEPARAT

PLUNGER

1шт.

27

REF

INSTRUCTION

VALVE, "R" series circuit relief - set at 3400 PSI - (For breakdown, see Figure 8-176)

1шт.

28

S236440

COVER

"o"ring

1шт.

29

S231589

COVER

"o"ring

2шт.

30

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- 3/8" NC x 1-1/2" Gr 5

8шт.

31

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

8шт.

32

S231603

COVER

"o"ring

2шт.

33

S6583

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

"O"RING - 1.296" ID x 1.562" OD

2шт.

34

S6586

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

"O"RING - 1.484" ID x 1.750" OD

2шт.

35

113-627

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

(Mounts valve to bracket) Hex, 5/8"-11 x 3 1/4", G5

1шт.

36

S513395

BRACKET, valve mounting

1шт.

37

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

4шт.

38

S95569

WASHER

flat - 1/2"

8шт.

39

195-41

WASHER,5/8"

3шт.

40

S113313

SPACER

4шт.

41

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" NC

8шт.

42

S236439

BRACKET, valve mounting

2шт.

43

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

3шт.

44

S237793

BRACKET, valve mounting

2шт.

45

13-1076

BOLT,Hex, 5/8" - 11 x 4-3/4", Gr 5

- 5/8" NC x 4-3/4" Gr 5 - (Mounts valve to bracket)

2шт.

46

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

8шт.
